Page < PROBLEM 2 (10 POINTS) Masses Mi and M2 are connected to a system of...

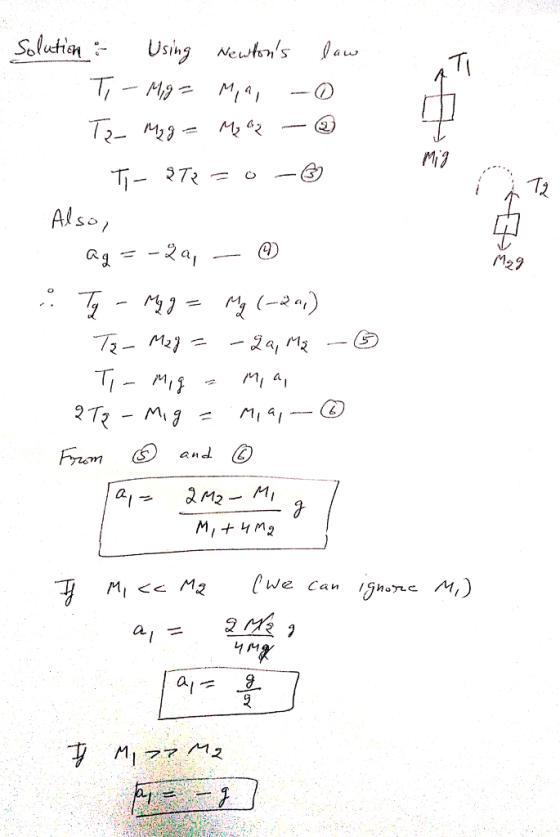

The book says the answer is a=g/5 for part 1, but not sure how they get...
The book says the answer is a=g/5 for part 1, but not
sure how they get that. Also need help On part 2 as
well

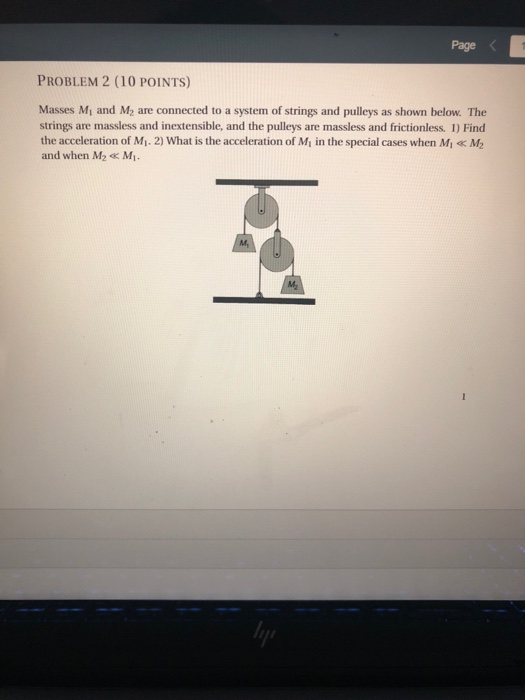

Page < PROBLEM 2 (10 POINTS) Masses Mi and M2 are connected to a system of strings and pulleys as shown below. The strings are massless and inextensible, and the pulleys are massless and frictionless. 1) Find the acceleration of Mi. 2) What is the acceleration of Mi in the special cases when Mi M2...
