problem help 1-4! TULSI Lumpletes the statement or answers the question. 283.15 lubility of carbon dioxide...
Could you show the steps to solve please! Thank You!

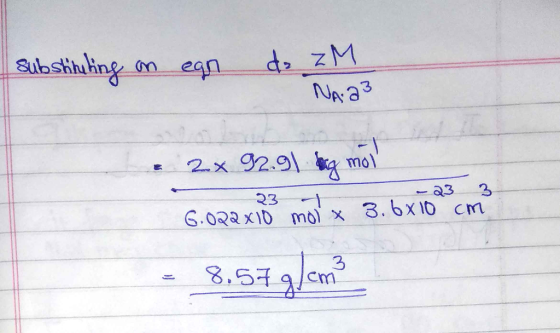

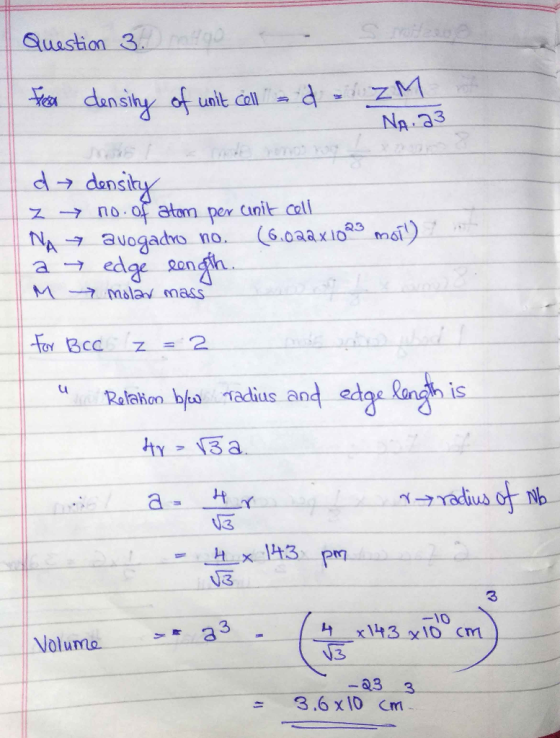

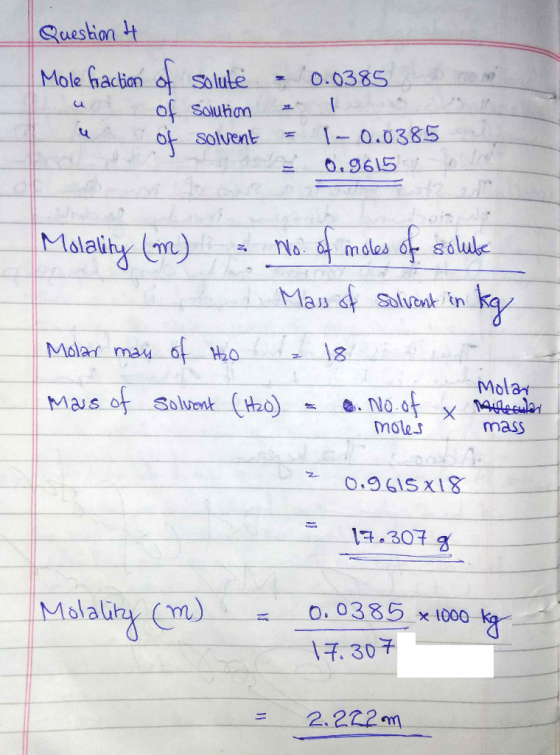

3) Niobium (Nb) is a metal that crystalizes with cubic unit cell that is body-centered 3) (BCC). Nb has an atomic radius of 143 pm. What is its density in g/cm? A) 9.33 g/cm 4 7.432 B) 8.57 g/cm3 C) 17.1 g/cm3 043248x10 9 THB D) 4.28 g/cm3 E) 52.8 g/cm3 4) 4) An aqueous solution has a mole fraction of solute of 0.0385. What is the molality of this...
Show the calculations for both problems
11) Niobium (Nb) is a metal that crystalizes with cubic unit cell that is body-centered (BCC). Nb has an atomic radius of 143 pm. What is its density in g/cm3? A) 4.28 g/cm3 B) 17.1 g/cm3 r=143 C) 9.33 g/cm3 D) 52.8 g/cm3 E) 8.57 g/cm3 VEISIUI 3 12) A mystery solution (with a mole fraction of solute of 0.15) has a vapor pressure of 65.0 torr at 85.0 °C. What is the vapor...
07 Question (1 point) d See page 593 1st attempt see Periodic Table ) See Hint A crystalline orm of palladium has a density of 1203 g/cm'if the radius of plildum atoms is 1370 pm,whatis the palladium unit atoms is 137.0 pm, what is the palladium unit cell? Choose one: O A. face-centered cubic O B. simple cubic O C. body-centered cubic O D. It cannot be determined from the information givern 07/26
07 Question (1 point) d See page...
Iron crystallizes in a body-centered cubic lattice. Calculate the density of Fe if the edge of a unit cell is 307 pm. A. 12.8 g/cm3 B. 6.40 x 106 g/cm3 C. 8.26 g/cm3 D. answer not listed E. 8.72 g/cm3 F. 7.84 g/cm3 G. 6.41 g/cm3
Question 8 (1 point) Vanadium (50.9 g/mol) is a metal that under normal conditions crystallizes in a body- centered cubic lattice and has a density -6 g/cm3. If instead vanadium were to crystallize in a simple cubic lattice, calculate the new density. The atomic radius of vanadium is 205 pm. HINT: First, calculate the edge length of a simple cubic cell from the atomic radius (1 suggest converting to cm at this step). Second, calculate the volume of the unit...
Question 4-9
1. What are the four types of bonding observed in solids? c ndeCavalent bonang 2. Rank the four types of bonding from strongest to weakest. io<>coaletxalic>H-ro İ 3.1 Derive an algebraic expression for the equilibrium spacing, re of an ionic bond that follows the equation E, in terms of A, B, n, and E. 4. 5. What is the force between the two atoms at the equilibrium spacing? atonic force What is the number of atoms per unit...
The toxic, highly unstable element derium (chemical symbol De) is discovered and is found to have a body-centered cubic unit cell. The radius of a derium atom is 86.906pm and the density of solid derium is 133.8g/cm3 at 25.0°C. a) Calculate the length (in pm) of an edge of the bcc unit cell for derium. 1) b) Calculate the molar mass (in g/mol) of derium. c) As for any cubic unit cell, part of the derium unit cell is empty...
Unit Cell Calculations Name
_____________________________
Unit Cells: The Simplest Repeating Unit in a Crystal
The structure of solids can be described as if they were
three-dimensional analogs of a piece of wallpaper. Wallpaper has a
regular repeating design that extends from one edge to the other.
Crystals have a similar repeating design, but in this case the
design extends in three dimensions from one edge of the solid to
the other. We can unambiguously describe a piece of wallpaper by...
Vanadium crystallizes in a body-centered cubic lattice, and thelength of the edge of a unit cell is 305 pm. What is the density ofV? (V: 50.94 g/mol; NA = 6.023 ´1023) A. 5.96 g/cm3 B. 2.98 g/cm3 C. 2.98 x 10-6g/cm3 D. 5.96 x 10-30g/cm3 E. 11.9 g/cm3 Please show all the work without using the formula Density=zM*Avogardo's number/a^3
Verizon 9:41 PM 51% G Question 62 of 73 Submit Chromium forms crystals (d = 7.20 g/cm) whose unit cell has an edge length of 2.885 Å (1 Å = 10-10 m). What type of lattice does chromium have? (1 m = 1012 pm) A) Simple cubic B) Body-centered cubic C) Face-centered cubic D) Octahedral E) Cannot be determined. Tap here or pull up for additional resources
