Three point charges are located at the corners of a square with magnitude and locations specified...

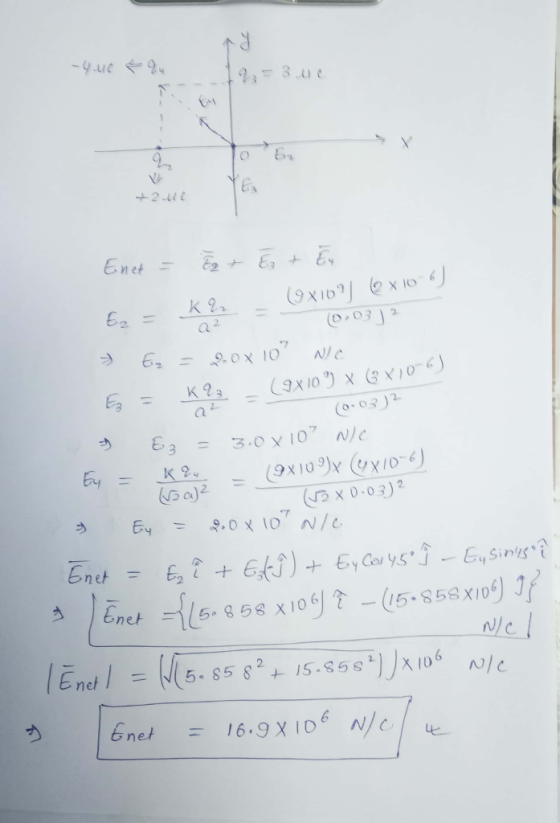

Three point charges are located at the corners of a square with magnitude and locations specified as follows: q3 = +3 μC at (0, +3cm) , q4 = -4 μC at (-3cm , 3cm) and q2 = +2 μC at (-3 cm, 0) . Find the electric field t the origin.
Homework Answers
Add Answer to:
Three point charges are located at the corners of a square with
magnitude and locations specified...
Two point charges are located along the x axis: q1 = +5.8 μC at x1 =...
Two point charges are located along the x axis: q1 = +5.8 μC at x1 = +3.8 cm, and q2 = +5.8 μC at x2 = −3.8 cm. Two other charges are located on the y axis: q3 = +3.1 μC at y3 = +4.9 cm, and q4 = −8.2 μC at y4 = +6.9 cm. Find the net electric field (magnitude and direction) at the origin.
Two point charges are located along the x axis: q1 = +5.9 μC at x1 =...
Two point charges are located along the x axis: q1 = +5.9 μC at x1 = +3.9 cm, and q2 = +5.9 μC at x2 = −3.9 cm. Two other charges are located on the y axis: q3 = +2.9 μC at y3 = +5.1 cm, and q4 = −8.2 μC at y4 = +7.1 cm. Find the net electric field (magnitude and direction) at the origin. magnitude N/C direction
Four point charges are located at the corners of a square. Each charge has magnitude 2.80...
Four point charges are located at the corners of a square. Each charge has magnitude 2.80 nC and the square has sides of length 3.00 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative.
Four point charges are located at the corners of a square. Each charge has magnitude 4.90...
Four point charges are located at the corners of a square. Each charge has magnitude 4.90 nC and the square has sides of length 3.70 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative. a.) All the charges are positive b.) Three of the charges are positive and one is negative
Four point charges are located at the corners of a square.
Four point charges are located at the corners of a square. Each charge has magnitude 1.00 nC and the square has sides of length 4.00 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative. HINT (a) all the charges are positive N/C (b) three of the charges are positive and one is negative.
4. Three point-like charges are placed at the corners of a rectangle as shown in the...
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a field at the center of the rectangle. Let q1-q3-+20.0 μC and q2--36.0 μο. 32.0 cm and b 52.0 cm. Find the magnitude of the electric N/C 42 93 qi
Three point charges q1, q2, and q3 are distributed at the corners of an equilateral triangle...
Three point charges q1, q2, and q3 are distributed at the corners of an equilateral triangle of side 0.5 mm. q1 = q2 =2 μC and q3= -2 μC. The magnitude of the electric field at the position of the charge q2 due to the other two charges is
Three point charges are located on an x-y coordinate system as follows: q1- -1.00 μC at...
Three point charges are located on an x-y coordinate system as follows: q1- -1.00 μC at (3.5m, 0.0), q2 = +2.00 μC at (-5.00m, 0.0), and q3-一1.50 pC at (0.0,4.0) Calculate the magnitude and direction of the electric field at the origin due to these charges
Four point charges are located at the corners of a square. Each charge has magnitude 4.00 nC and the square has sides of length 2.70 cm
Four point charges are located at the corners of a square. Each charge has magnitude 4.00 nC and the square has sides of length 2.70 cm. Find the magnitude of the electric field (in N/C) at the center of the square if all of the charges are positive and three of the charges are positive and one is negative. (a) all the charges are positive (b) three of the charges are positive and one is negative
8 Three point like charges are placed at the corners of a rectangle as shown in...
8 Three point like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 52.0 cm. Find the magnitude of the electric force exerted on the charge q3. Let qı = +2.70 μ C, q2 =-270 μC, q3 =-470 μC. 0.422 N g1O 42 43
4. Three point-like charges are placed at the corners of a rectangle as shown in the figure, a field at the center of the rectangle. Let q1-q3-+20.0 μC and q2--36.0 μο. 32.0 cm and b 52.0 cm. Find the magnitude of the electric N/C 42 93 qi
Three point charges are located on an x-y coordinate system as follows: q1- -1.00 μC at (3.5m, 0.0), q2 = +2.00 μC at (-5.00m, 0.0), and q3-一1.50 pC at (0.0,4.0) Calculate the magnitude and direction of the electric field at the origin due to these charges
8 Three point like charges are placed at the corners of a rectangle as shown in the figure, a = 22.0 cm and b = 52.0 cm. Find the magnitude of the electric force exerted on the charge q3. Let qı = +2.70 μ C, q2 =-270 μC, q3 =-470 μC. 0.422 N g1O 42 43
