A vertical solid steel post of diameter d = 22 cm and length L = 2.30 m is required to support a load of mass m = 8200 kg . You can ignore the weight of the post. Take free fall acceleration to be g=9.8m/s2.

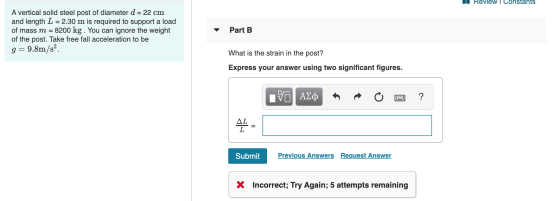

B. What is the strain in the post?
Express your answer using two significant figures.

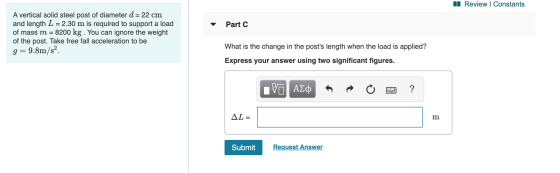

C.
What is the change in the post's length
when the load is applied?
Express your answer using two significant figures.
