Add Answer to:

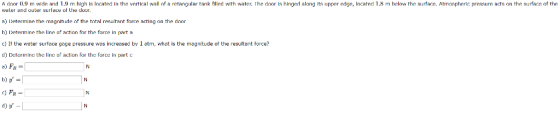

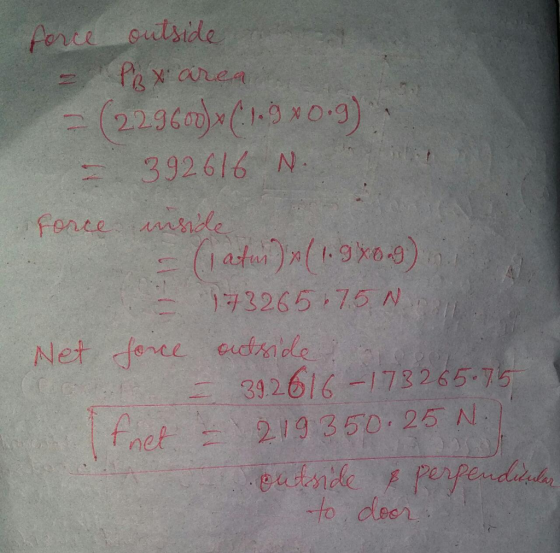

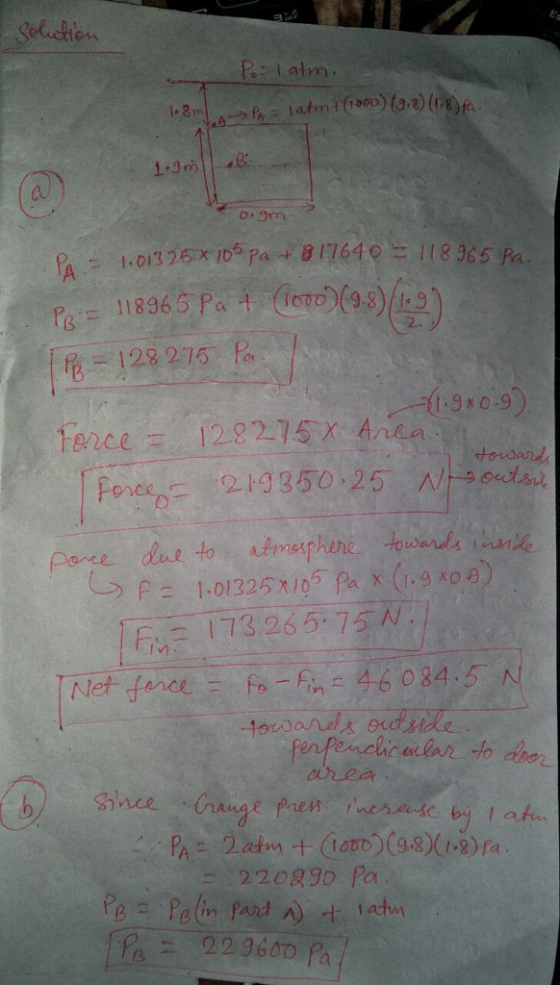

A door 0.9 m wide and 1.9 m high is Iocated in the vertical wall of...
3. The inclined surface shown in Figure below is hinged along edge A. The surface is...
3. The inclined surface shown in Figure below is hinged along edge A. The surface is 5 m wide. a. Determine the resultant force, Fr, of the water on the inclined surface. (15 p) b. Find the location of FR (center of pressure) (15 p) D = 2 m 130° L = 4 m Net hydrostatic pressure distribution on gate.
A 6-m-hight, 4-m-wide rectangular gate is located at the end of an open freshwater tank. The...
A 6-m-hight, 4-m-wide rectangular gate is located at the end of an open freshwater tank. The gate is hinged at the top and held in place by a force F. The pressure is proportional to the depth of the water and the average pressure p_avg exerted on the gate by the water is: where deltap is the difference in pressure between the bottom of the gate (P_1) and the surface (p_0). The resulting force of the water on the gate...
(a) A person opens a 1.05 m wide door by pushing on it with a force...
(a) A person opens a 1.05 m wide door by pushing on it with a force of 51.5 N applied at the center of the door, at an angle perpendicular to the door's surface. What magnitude of torque (in N m) is applied about an axis through the hinges? N m (b) A girl opens the same door, using the same force, again directed perpendicular to the surface, but now the force is applied at the edge of the door....
A 5-m-wide. 5-m-high rectangular plate blocks the end of a 4.m-deep freshwater channel, as shown in...
A 5-m-wide. 5-m-high rectangular plate blocks the end of a 4.m-deep freshwater channel, as shown in the figure. The plate is hinged about a horizontal axis along its upper edge through a point A and is restrained from opening by a fixed ridge at point B. Determine the forge exerted on the plate by the ridge BE) (25 pts) )water = 9810 I m rI For a vertical rectangular wall the resultant force is applied at one third of depth...
Review Consider the overhang wall shown in (Figure 1). The wall is 6.0 m wide. Pu...
Review Consider the overhang wall shown in (Figure 1). The wall is 6.0 m wide. Pu = 1000 kg/m". Part A Determine the magnitude of the resultant force that water exerts on the wall along ABC Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > View Available Hint(s) Fr= Value Units Submit Previous Answers X Incorrect; Try Again; 4 attempts remaining 25 m .
A barge in the form of a closed rectangular tank 15 m long by 3 m...
A barge in the form of a closed rectangular tank 15 m long by 3 m wide floats in water. If the bottom is 1.8m below the surface, what is the water force on one long side and at what level below the surface does it act? If a uniform pressure of 40 kN m-2 is applied inside the barge, what will be the new magnitude and point of action of the resultant force on the side? The deck is...
(Hydrostatic Force) A 10-m deep, 10-m wide, 10-m long tank, exposed to standard atmosphere at the...
(Hydrostatic Force) A 10-m deep, 10-m wide, 10-m long tank, exposed to standard atmosphere at the surface, is filled with water. What is its absolute pressure at the tank floor?
A rectangular gate 1.2 m wide and 3.5 m long is inclined 35°from a smooth wall....
A rectangular gate 1.2 m wide and 3.5 m long is inclined 35°from a smooth wall. The gate is hinged at point B, and rests against a smooth wall at A which is 2.7 m below the water surface. a. Compute the force on the gate due to seawater pressure (s.g. = 1.03). b. Determine the location of the force from the center of gravity of the gate. c. determine the horizontal force P exerted by the wall at point...
2.105 An open rectangular tank is 2 m wide and 4 m long. The tank contains...
2.105 An open rectangular tank is 2 m wide and 4 m long. The tank contains water to a depth of 2 m and oil (SG = 0.8) on top of the water to a depth of 1 m. Determine the magnitude and location of the resultant fluid force acting on one end of the tank.
Question 4 (7 Marks) Tank ABCDE (Figure 4.1) contains an oil of SG-0.82. The tank has a width (normal to page) of 25m. The tank has a plain gate CD that is hinged at C. It is required to: a) Dete...
Question 4 (7 Marks) Tank ABCDE (Figure 4.1) contains an oil of SG-0.82. The tank has a width (normal to page) of 25m. The tank has a plain gate CD that is hinged at C. It is required to: a) Determine the direction, magnitude (in ton) and inclineation of the resultant hydrostatic force on the circular surface DE; b) Determine the hydrostatic pressure force (direction, magnitude and point of action) on plain surface CD c) Determine the minimum force F...
3. The inclined surface shown in Figure below is hinged along edge A. The surface is 5 m wide. a. Determine the resultant force, Fr, of the water on the inclined surface. (15 p) b. Find the location of FR (center of pressure) (15 p) D = 2 m 130° L = 4 m Net hydrostatic pressure distribution on gate.
A 6-m-hight, 4-m-wide rectangular gate is located at the end of an open freshwater tank. The gate is hinged at the top and held in place by a force F. The pressure is proportional to the depth of the water and the average pressure p_avg exerted on the gate by the water is: where deltap is the difference in pressure between the bottom of the gate (P_1) and the surface (p_0). The resulting force of the water on the gate...
(a) A person opens a 1.05 m wide door by pushing on it with a force of 51.5 N applied at the center of the door, at an angle perpendicular to the door's surface. What magnitude of torque (in N m) is applied about an axis through the hinges? N m (b) A girl opens the same door, using the same force, again directed perpendicular to the surface, but now the force is applied at the edge of the door....
A 5-m-wide. 5-m-high rectangular plate blocks the end of a 4.m-deep freshwater channel, as shown in the figure. The plate is hinged about a horizontal axis along its upper edge through a point A and is restrained from opening by a fixed ridge at point B. Determine the forge exerted on the plate by the ridge BE) (25 pts) )water = 9810 I m rI For a vertical rectangular wall the resultant force is applied at one third of depth...
Review Consider the overhang wall shown in (Figure 1). The wall is 6.0 m wide. Pu = 1000 kg/m". Part A Determine the magnitude of the resultant force that water exerts on the wall along ABC Express your answer to three significant figures and include the appropriate units. Figure < 1 of 1 > View Available Hint(s) Fr= Value Units Submit Previous Answers X Incorrect; Try Again; 4 attempts remaining 25 m .
(Hydrostatic Force) A 10-m deep, 10-m wide, 10-m long tank, exposed to standard atmosphere at the surface, is filled with water. What is its absolute pressure at the tank floor?
2.105 An open rectangular tank is 2 m wide and 4 m long. The tank contains water to a depth of 2 m and oil (SG = 0.8) on top of the water to a depth of 1 m. Determine the magnitude and location of the resultant fluid force acting on one end of the tank.
Question 4 (7 Marks) Tank ABCDE (Figure 4.1) contains an oil of SG-0.82. The tank has a width (normal to page) of 25m. The tank has a plain gate CD that is hinged at C. It is required to: a) Determine the direction, magnitude (in ton) and inclineation of the resultant hydrostatic force on the circular surface DE; b) Determine the hydrostatic pressure force (direction, magnitude and point of action) on plain surface CD c) Determine the minimum force F...
