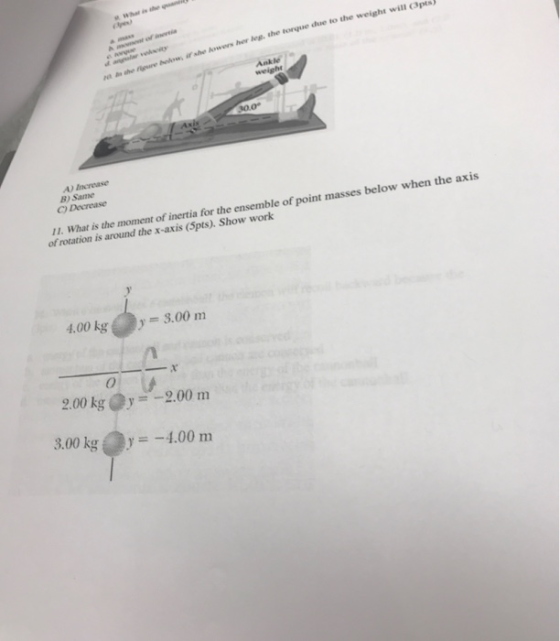

R Wher Ope e quan a mass angular vedity a the e below, ifshe Jowers her...

Question

Question

science physics

Answer 1

Answer #1

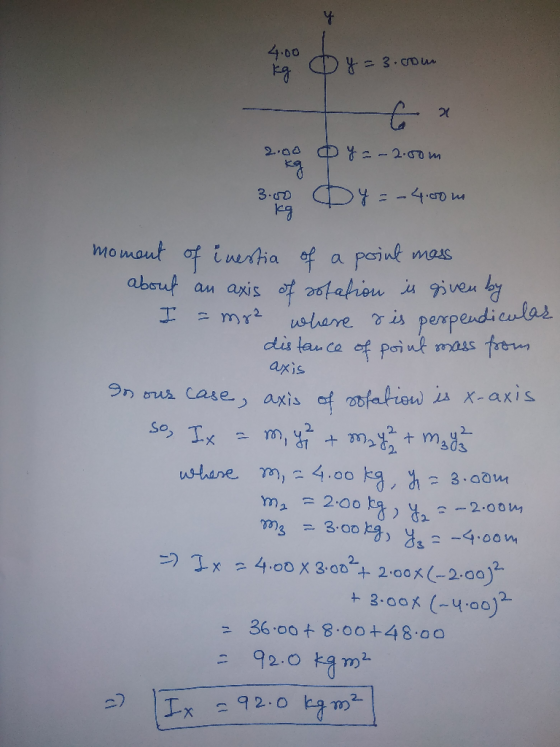

4.00 kg y =3.com 2.000 y = -2.0om 3.00 D Y = -4.00m moment of inestia of a point mass about an axis of sotation is given by I

Answer 2

Similar Homework Help Questions

A 3.00-kg mass is placed at (2.00, 3.00) m, and a 4.50-kg mass is placed at...

A 3.00-kg mass is placed at (2.00, 3.00) m, and a 4.50-kg mass is placed at (2.00, −3.00) m. What is the moment of inertia of this system of masses about the y axis? Group of answer choices 22.5 kg·m2 67.5 kg·m2 30.0 kg·m2 15.0 kg·m2 97.5 kg·m2
If we change the axis to ?2 ball as shown. Determine the moment of inertia about...

If we change the axis to ?2 ball as shown. Determine the moment of inertia about the given axis of rotation. Calculate the torque magnitude acting on the system. nau be the speed if no downforce acted on the car? The drawing shows a system of objects, which consists of three small balls connected by massless rods. The axis is perpendicular to the page as shown. The force of magnitude F is applied to the m2 ball (see the drawing)....
If the system shown in the figure below is set in rotation about each of the...

If the system shown in the figure below is set in rotation about each of the axes listed below, find the torque that will produce an anqular acceleration of 4.5 rad/s in each case. (Enter your answers in N m.) 3.00 kg 2.00 kg 6.00 m 2.00 kgi 4.00 kg 4.00 m- rotation about the x-axis N m rotation about the y-axis N m rotation about an axis through O and perpendicular to the page N m

A 2.00-kg mass is placed at (3.00, 4.00) m, and a 3.50-kg mass is placed at...

A 2.00-kg mass is placed at (3.00, 4.00) m, and a 3.50-kg mass is placed at (3.00, −4.00) m. What is the moment of inertia of this system of masses about the z axis? Group of answer choices 49.5 kg·m2 22.0 kg·m2 16.5 kg·m2 88.0 kg·m2 138 kg·m2
3) (Student Spinning on Stool) A student sits spinning on a stool at initial angular velocity...

3) (Student Spinning on Stool) A student sits spinning on a stool at initial angular velocity angular velocity w, = 4.00 Hz, initially with arms rigidly outstretched, holding two identical m= 2.00 kg weights (one in left hand and one in the right hand) at distance r = 0.600m from the student's axis of rotation. The student's moment of inertia (without including the contribution of the two weights) is I = 4.00 kg m². Assume that the contribution of the...
Consider the pendulum bob shown. The bob is constructed from a flat disk of mass 2.50...

Consider the pendulum bob shown. The bob is constructed from a flat disk of mass 2.50 kg and diameter 20.0 cm which is connected to a rod of length 30.0 cm and mass of 2.00 kg. The bob rotates about a pivot on end of the rod that is parallel to the ground. a. Find the total gravitational torque acting on the bob when it is at an angle of 25.0° below the horizontal. b. Use the parallel axis theorem...

The figure shows three particles connected on a rod, of negligible mass, along the y axis....

The figure shows three particles connected on a rod, of negligible mass, along the y axis. The mass system rotates on the x-axis with an angular velocity of 2.00 rad / s. (a) Calculate the moment of inertia of the mass arrangement and (b) find the rotational kinetic energy of the mass system 4.00 kg , -9.00 m 2004 -2,00 m 3,00 kg y -4.00 m
rods of negligible mass lying along the y axis connect three particles. The system rotates about...

rods of negligible mass lying along the y axis connect three particles. The system rotates about the x axis with an angular peed of 3.70 rad/s. (a) Find the moment of inertia about the x axis. kg middot m^2 (b) Find the total rotational kinetic energy evaluated from 1/2 I omega^2. J (c) Find the tangential speed of each particle. 4.00 kg particle m/s 2.00 kg particle m/s 3.00 kg particle m/s (d) Find the total kinetic energy evaluated from...
A person pushes with a force of 2.00 N on a stick that is 3.00 m...

A person pushes with a force of 2.00 N on a stick that is 3.00 m long directly toward the axis of an object whose moment of inertia is 4.00 kg m2 about that axis. If the object had been rotating at 5.00 rad/s, 6.00 s later its rate of rotation will be: a. 4.00 rad/s b. 5.00 rad/s c. 9.00 rad/s d. 14.00 rad/s e. none of these.

The disk ntating with a constant angular accelerstion Assurse the axle is frictionkess Ca) Calcud...

please answer 5 and 6 im sorry thats the closest pic i can get to it the disk ntating with a constant angular accelerstion Assurse the axle is frictionkess Ca) Calcudlate the magnituke and direction of the net torpsue prodhuced by the twe lorces b) Determine the magnitude of the angular acceleration of the disk rad/s Cakulate the angular momentum, in kg mP/s, of an ice skater spinning at 6.00 rew/s given is moment of inertia is 0 rew/s given...
