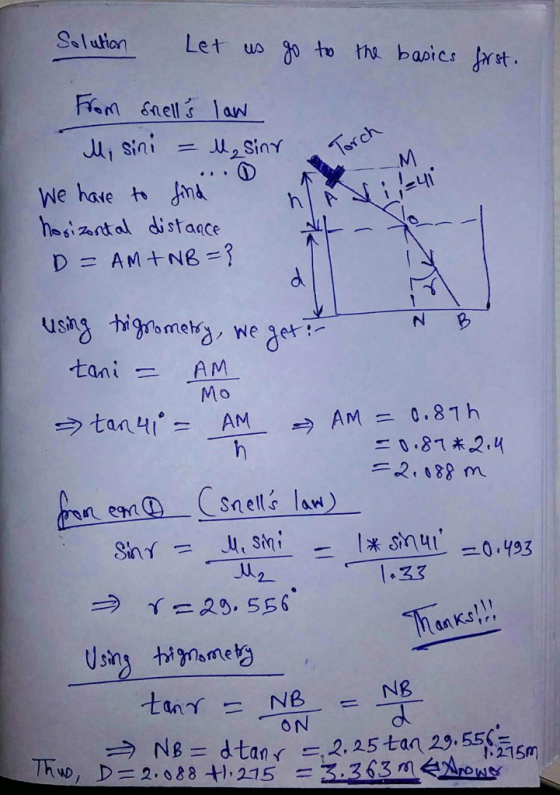

A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface. The pool is d = 2.25 m deep and the index of refraction for air and water are n1 = 1 and n2 = 1.33, respectively.
what is the horizontal distance, D, from the edge of the pool to the point on the bottom of the pool where the light strikes?
Homework Answers
Add Answer to:
A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ = 41 degrees with respect to the water's surface
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m
A flashlight is held at the edge of a swimming pool at a height h = 2.2 m such that its beam makes an angle of θ = 58 degrees with respect to the water's surface. The pool is d = 1.5 m deep and the index of refraction for air and water are n1=1 and n2 = 1.33, respectively. What is the horizontal distance D, from the edge of the pool to the port on the bottom of the pool...
(20%) Problem 2: A flashlight is held at the edge of a swimming pool at a...
(20%) Problem 2: A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ 41 degrees with respect to the water's surface. The pool is d = 2.25 m deep and the index of refraction for air and water are n1 = 1 and n2-1.33, respectively Randomized Variables h 2.4 m d 2.25 m 6% 41 degrees What is the horizontal distance, D, from...
L. A flashlight on the bottom of a 4.00 m deep swimming pool sends a ra...
L. A flashlight on the bottom of a 4.00 m deep swimming pool sends a ra d at an angle so that the ray strikes the surface of the water 2.00 m fromt directly above the flashlight. What angle (in air) does the emerging ray make water's surface? (10) he point
You are standing in a 1.5-m-deep swimming pool at night. The water is very still. You...
You are standing in a 1.5-m-deep swimming pool at night. The water is very still. You hold a laser pointer just above the water's surface and shine it nearly parallel to the surface, but tilted slightly down so that the beam enters the water 3.5mfrom you. How far from you does the beam strike the bottom of the pool? Index of refraction of the water is 1.33.
Problem 2: A ray of light is incident on an air/water interface. The ray makes an angle...
Problem
2: A ray of light is incident on an air/water
interface. The ray makes an angle of θ1 = 44
degrees with respect to the normal of the surface. The index of the
air is n1 = 1 while water is
n2 = 1.33.
Part (a) Choose an expression for
the angle (relative to the normal to the surface) for the ray in
the water, θ2.
SchematicChoice :
Part (b) Numerically, what is the angle in
degrees?
Numeric : A numeric value...
(20%) Problem 2: A flashlight is held at the edge of a swimming pool at a height h = 2.4 m such that its beam makes an angle of θ 41 degrees with respect to the water's surface. The pool is d = 2.25 m deep and the index of refraction for air and water are n1 = 1 and n2-1.33, respectively Randomized Variables h 2.4 m d 2.25 m 6% 41 degrees What is the horizontal distance, D, from...
L. A flashlight on the bottom of a 4.00 m deep swimming pool sends a ra d at an angle so that the ray strikes the surface of the water 2.00 m fromt directly above the flashlight. What angle (in air) does the emerging ray make water's surface? (10) he point
Problem
2: A ray of light is incident on an air/water
interface. The ray makes an angle of θ1 = 44
degrees with respect to the normal of the surface. The index of the
air is n1 = 1 while water is
n2 = 1.33.
Part (a) Choose an expression for
the angle (relative to the normal to the surface) for the ray in
the water, θ2.
SchematicChoice :
Part (b) Numerically, what is the angle in
degrees?
Numeric : A numeric value...
