The 1 F capacitor in the circuit shown is initially charged to 6 volts. If the...

Question

Question

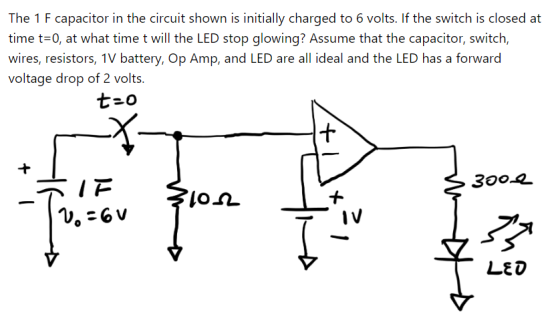

The 1 F capacitor in the circuit shown is initially charged to 6 volts. If the switch is closed at time t=0, at what time t w

science physics

Answer 1

Answer #1

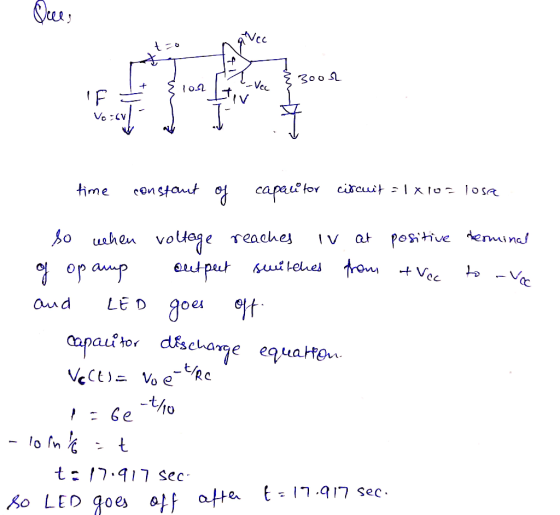

Qe Vec V VOCV tor time dernmina positive at Bo when votage reaches eutput ttehe fro + Voc op anp LE D g0e aud capai tor cscha

Answer 2

Similar Homework Help Questions

Nc The 1 F capacitor in the circuit shown is initially charged to 6 volts. If...

Nc The 1 F capacitor in the circuit shown is initially charged to 6 volts. If the switch is closed at time t 0, at what timet will the LED stop Par glowing? Assume that the capacitor, switch, wires, resistors, 1V battery, Op Amp, and LED are all ideal and the LED has a forward voltage drop of 2 volts. t-o 3004 IF LED Select one: a. 53.7 seconds b. 17,9 seconds c. the LED stays on forever d. 10.0...
The 1 F capacitor in the circuit shown is initially charged to 6 volts. If the...

The 1 F capacitor in the circuit shown is initially charged to 6 volts. If the switch is closed at time to, at what time t will the LED stop glowing? Assume that the capacitor, switch, wires, resistors, 1V battery, Op Amp, and LED are all ideal and the LED has a forward voltage drop of 2 volts. t0 PV TE 2,36V O Select one: a. the LED stays on forever b. the LED never tuns on c. 53.7 seconds...
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. At what time will the capacitor voltage equal 5V? R=100ks + V1 1 C=0.1MF capacitor initially charged to 10 volts

In the RC circuit shown, the 0.1 uF capacitor is initially charged to 10 volts. At...

In the RC circuit shown, the 0.1 uF capacitor is initially charged to 10 volts. At time t=0, the switch is closed. t-o R=100ks + velt IC=0.1 MF Capacitor init I charged to lo volts What is the RC time constant of this circuit?
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. At what time will the capacitor voltage equal 5V? R=100ks + Volt I c = 0.1mF Capacitor in charged to lovolts
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. The voltage across the capacitor can be described by the equation Vc(t) given below for time t>=0 (greater than, or equal to, O). Determine V_1 and V_2 for this equation. R=100KR C=o.lMF I capacitor initially I charged to 10 volts V(t) = V₂ + (VZ-V4) e ERC for tzo

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. At what time will the capacitor voltage equal 5V? t-o R=100ks Volt IC=0.1 MF capacitor initially charged to lovolts O Select one: a. After 1.1RC seconds b. After RC seconds c. Other d. The voltage asymptotically approaches 5 volts e. After 3RC seconds O o
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. At what time will the capacitor voltage equal 5V? to R=100K C = 0.1 AF capactor iaitialy charged to 1o volts Select one: a. After RC seconds b. After 3RC seconds c. After 1.1RC seconds d. The voltage asymptotically approaches 5 volts e. Other
In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t-0. The voltage across the capacitor can be described by the equation Vc(t) given below for time t>=0 (greater than, or equal to, 0) Determine V_1 and V_2 for this equation. t-o R=looK C 0.1 AF Capaetor iaifially charged to 10 volts t/Rc 4l)= Vi 2-) e for tzo 1

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch...

In the RC circuit shown, the capacitor is initially charged to 10 volts, and the switch closes at time t=0. What is the maximum value of the current flowing through this circuit for time t >= 0 (greater than, or equal to, 0)? R=100ks + ult) C= 0.1 MF T capacitor initially charged to lovolts
