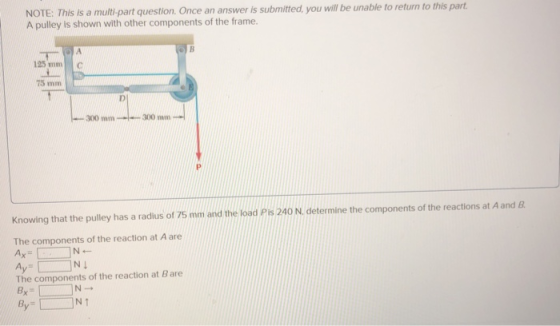

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

Question

Question

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

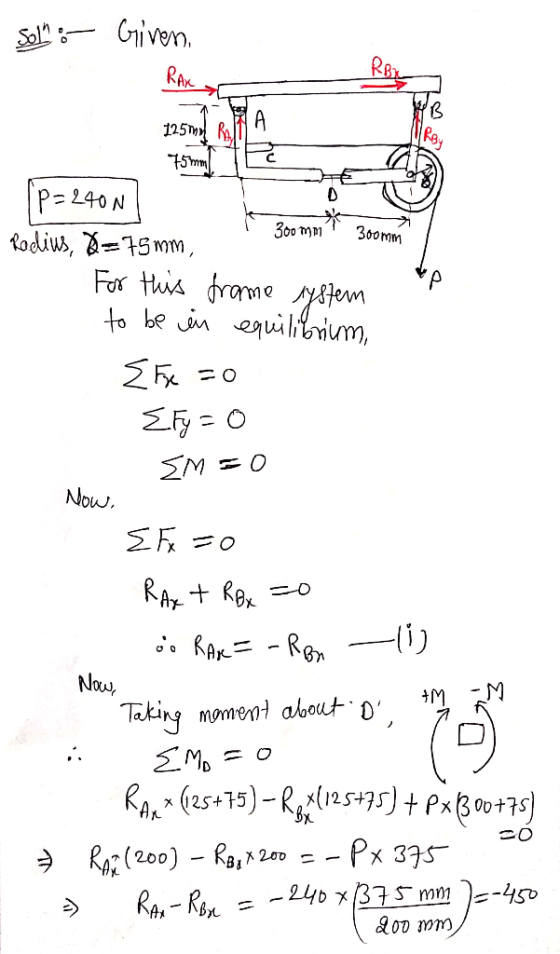

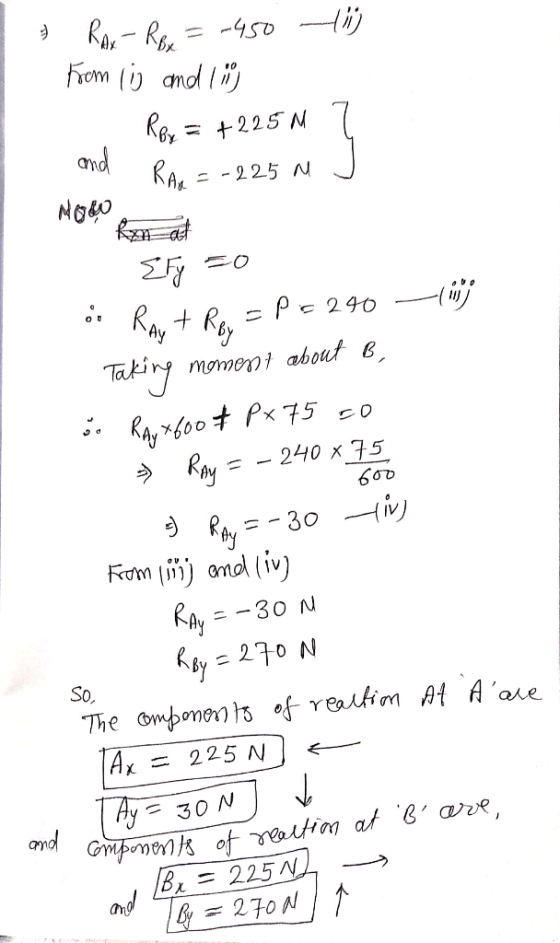

Sol :- Given RAK * 300 mm 300mm 300mm 125ml RI 75mm E (p=240N Rodius, 8=75mm, For this frame system to be in equilibrium, {f * RAx- Row= .450 ti From lis and li 1. Rby = +225m 7 and RAM = -225 m J Modo ko at o: Raw + Raspe 240 — (in Taking moment abo

Add a comment

Answer 2

Similar Homework Help Questions

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the given figure. Given: P = 612 N. Draw the shear and bending-moment diagrams for the beam AB. (You must provide an answer before moving on to the next part.) (Please upload your solution/response using the controls below.) Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this...
Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part A frame and a loading are shown. Note that α-9ợ 300 mm 200 mm 75 mm 400 mm 200 mm Determine the internal forces at point Jwhen P 1.8 kN. The axial force is The shear force is The bending moment is kN-m (Click to se kN (Click to select) kN (Click to select) lech (Click to select)...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The flywheel shown has a radius of 20 in., a weight of 290 lbs, and a radius of gyration of 15 in. A 70-ib block Ais attached to a wire that is wrapped around the flywheel, and the system is released from rest. The effect of friction is neglected Determine the acceleration of block A. (You must provide an answer...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A radar system is used to track a new experimental space launch vehicle. Early in the vehicle's flight trajectory, the azimuth angle B is increasing with the constant rate dß/dt= 22°/s. The elevation angle y is increasing at the rate dy/dt = 40°/s, and this rate is increasing at 5°/s4. Know that the distance between O and Pis 2 m...
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. The flywheel shown has a radius of 20 in., a weight of 350 lbs, and a radius of gyration of 15 in. A 130-15 block Als attached to a wire that is wrapped around the flywheel, and the system is released from rest. The effect of friction is neglected. А MI Determine the speed of block A after it has...
NOTE This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE This is a multi-part question. Once an answer is submitted, you will be unable to return to this part A robot arm moves in the vertical plane so that the 0.12 kg cylinder P travels in a circle about point which is not moving Know that arm BP starts from rest in a honzontal position and that the speed of increases at a constant rate of 200 mm/s? Determine the force acting on the cylinder at 1-3 The force...

Required Information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required Information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider the given figure with a force P= 300 lb acting at D. 6 in. 10 in. - Determine the reactions at A and E : The reaction at Ais The reaction at Is O O
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Identify ÜA; and ûA; for the given A; where / is a positive integer. A=--/+1,...,-1,0, 1,...,1-1, 7 Multiple Choice The union is Z and the intersection is (-1, 1). The union is N and the intersection is (-1,0,1). O The union is Z and the intersection is f-1, 0, 1). o The union is N and the intersection is (-1,1).
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. A 45-g bullet is fired with a velocity of 460 m/s at 0 = 5° into a 9-kg square panel of side b= 200 mm. The panel is initially at rest. Determine the corresponding velocity of the center of the panel immediately after the bullet becomes embedded. (You must provide an answer before moving on to the next part.) The...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be...

Required information NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part Two cables are tied together at Cand are loaded as shown. 30° 30 200VA 200 N C45 Knowing that P 300 N, determine the tension in cables ACand BC Tension in cable AC is Tension in cable BC is

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to...

Homework Answers
