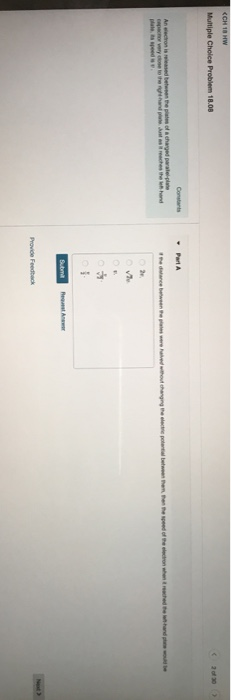

An electron is released between the plates of a charged parallel-plate capacitor very close to the right-hand plate. Just as it reaches the left-hand plate, its speed is v.
If the distance between the plates were halved without changing the electric potential between them, then the speed of the electron when it reached the left-hand plate would be
a) 2v
b) sqrt2v
c) v
d) v/sqrt2
e) v/2

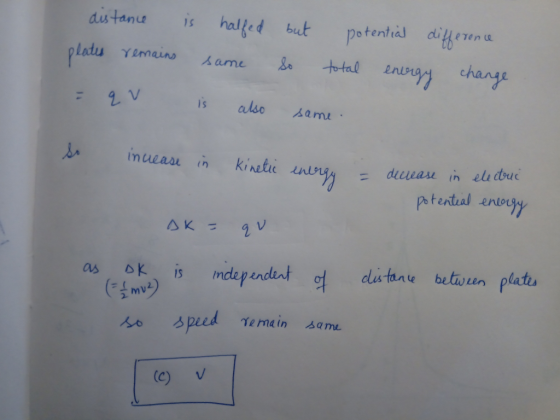

Homework Answers
Add Answer to:
An electron is released between the plates of a charged
parallel-plate capacitor very close to the...
An electron is released from rest at the negative plate of a parallel plate capacitor and...
An electron is released from rest at the negative plate of a
parallel plate capacitor and accelerates to the positive plate (see
the drawing). The plates are separated by a distance of 1.7 cm, and
the electric field within the capacitor has a magnitude of 2.7 x
106 V/m. What is the kinetic energy of the electron just as it
reaches the positive plate? The figure shows a vertical plate on
the left that is negatively charged and another vertical...
An electron is released from rest at the negative plate of a parallel plate capacitor and...
An electron is released from rest at the negative plate of a parallel plate capacitor and accelerates to the positive plate. The plates are separated by a distance of 1.2 cm and the electric field within the capacitor has a magnitude of 2.1 * 10^6 V/m. What is the speed of the electron just as it reaches the positive plate?
An electron is released from rest at the negative plate of a parallel plate capacitor and...
An electron is released from rest at the negative plate of a parallel plate capacitor and accelerates to the positive plate (see the drawing). The plates are separated by a distance of 2.4 cm, and the electric field within the capacitor has a magnitude of 1.8 x 10% v/m. What is the kinetic energy of the electron just as it reaches the positive pliate? KEpositive- Electric ield Electron
The separation distance between the two plates of a parallel plate capacitor is 2.00 cm. An...
The separation distance between the two plates of a parallel plate capacitor is 2.00 cm. An electron is at rest near the negative plate. When it is released, it accelerates and reaches the positive plate with a kinetic energy of 7.80 ✕ 10−15 J. What is the magnitude of the electric field in the region between the plates of the capacitor?
A 6.0mF capacitor, with the plates oriented vertically, is charged to 20.0V. Assume that the negative...
A 6.0mF capacitor, with the plates oriented vertically, is charged to 20.0V. Assume that the negative electrode is at 0.0V, and the left plate is positively charged. The plate separation is 0.15mm. a. If the left plate is positively charged, what are the magnitude and direction of the electric field between the plates? b. The electron is released from rest. What is the kinetic energy (in Joules) of the electron when it reaches the positive plate? c. What is the...
An electron is accelerated from rest across the gap of a capacitor (two parallel plates charged...
An electron is accelerated from rest across the gap of a capacitor (two parallel plates charged -Q and +Q respectively). A hole in the top plate allows the electron to emerge with a constant velocity of v = 71 m/s. If the gap between the plates is d = 0.47 m, what is the magnitude of the electric field between the plates?
An electron enters the lower left side of a parallel plate capacitor and exits at the...
An electron enters the lower left side of a parallel plate
capacitor and exits at the upper right, as shown. The initial speed
of the electron is 7"106 m/s. The capacitor is 2 cm long, the
plates are 0.15 cm apart. Find the magnitude of the electric field
between the plates, assuming that it is uniform everywhere.
Problem 3 An electron enters the lower left side of a parallel plate capacitor and exits at the upper right, as shown. The...
2. A capacitor of area A-6m2 and separation between plates, d-1mm , is charged with Q-...
2. A capacitor of area A-6m2 and separation between plates, d-1mm , is charged with Q- 5.31uC What is the potential difference between the plates? What is the electric potential at M if the negatively charged plate has a potential V- 20v If an electron is released from rest at point M, at what speed will it strike the positively charged plate? (mass of electron is me-9.11x1031kg) 0,4aM
An electron is released from rest at the negative plate of a parallel plate capacitor. The...
An electron is released from rest at the negative plate of a parallel plate capacitor. The charge per unit area on each plate is = 1.9 × 10-7 C/m2, and the plates are separated by a distance of 1.5 × 10-2 m. How fast is the electron moving just before it reaches the positive plate?
An electron is released from rest at the negative plate of a parallel plate capacitor. The...
An electron is released from rest at the negative plate of a parallel plate capacitor. The charge per unit area on each plate is = 2.1 × 10-7 C/m2, and the plates are separated by a distance of 1.7 × 10-2 m. How fast is the electron moving just before it reaches the positive plate?
An electron is released from rest at the negative plate of a
parallel plate capacitor and accelerates to the positive plate (see
the drawing). The plates are separated by a distance of 1.7 cm, and
the electric field within the capacitor has a magnitude of 2.7 x
106 V/m. What is the kinetic energy of the electron just as it
reaches the positive plate? The figure shows a vertical plate on
the left that is negatively charged and another vertical...
An electron is released from rest at the negative plate of a parallel plate capacitor and accelerates to the positive plate (see the drawing). The plates are separated by a distance of 2.4 cm, and the electric field within the capacitor has a magnitude of 1.8 x 10% v/m. What is the kinetic energy of the electron just as it reaches the positive pliate? KEpositive- Electric ield Electron
An electron enters the lower left side of a parallel plate
capacitor and exits at the upper right, as shown. The initial speed
of the electron is 7"106 m/s. The capacitor is 2 cm long, the
plates are 0.15 cm apart. Find the magnitude of the electric field
between the plates, assuming that it is uniform everywhere.
Problem 3 An electron enters the lower left side of a parallel plate capacitor and exits at the upper right, as shown. The...
2. A capacitor of area A-6m2 and separation between plates, d-1mm , is charged with Q- 5.31uC What is the potential difference between the plates? What is the electric potential at M if the negatively charged plate has a potential V- 20v If an electron is released from rest at point M, at what speed will it strike the positively charged plate? (mass of electron is me-9.11x1031kg) 0,4aM
