Question

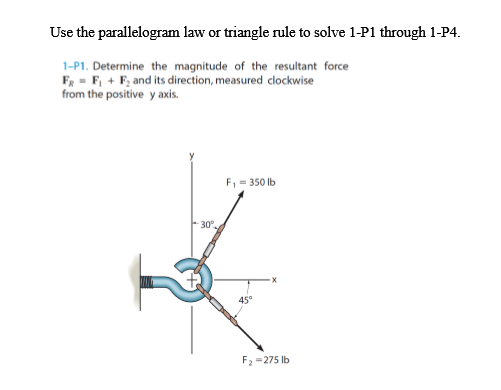

Use the parallelogram law or triangle rule to solve 1-P1 through 1-P4 1-P1. Determine the magnitude of the resultant force FR-Fi+F2 and its direction, measured clockwise from the positive y axis F-350 lb 30 45° F2-275 lb

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

1 0
Add a comment
Know the answer?
Add Answer to:
Use the parallelogram law or triangle rule to solve 1-P1 through 1-P4 1-P1. Determine the magnitude...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • Determine the magnitude and direction of the resultant force, measured counterclockwise from the positive x axis

    Determine the magnitude and direction of the resultant force, measured counterclockwise from the positive x axis. Solve by first finding the resultant F' = F2 + F3 and then forming FR = F'+F1. Make sure to show all steps. Use the Parallelogram method.

  • Show all workout please. F,-260 N 45° F2 100 N o x direction component of Fi,...

    Show all workout please. F,-260 N 45° F2 100 N o x direction component of Fi, Fix? y direction component of Fi. Fi,y? o x direction component of F2, Fx y direction component of F2. F2y? o The magnitude of the resultant force, FR o The direction of the resultant force, measured counterclockwise from the positive x axis,

  • a. using the graphical/semi-graphical (parallelogram law) to determine the magnitude of F1 and inclination theta of...

    a. using the graphical/semi-graphical (parallelogram law) to determine the magnitude of F1 and inclination theta of F2 b. use the algebraic method to determine the magnitude of F1 and the inclination theta of F2 HW (2-2) The two forces shown act in the x-y plane of the T-beam cross section. If it is known that the resultant R of the two forces has a magnitude of 3.5 kN and a line of action that lies 15° above the negative x-axis,...

  • Suppose that F1 = 400 N. Part A Determine the magnitude of the resultant F'=F1 + F2.

    Suppose that F1 = 400 N.Part A Determine the magnitude of the resultant F'=F1 + F2. Part B Determine the direction of the resultant force  F'=F1 + F2, measured  counterclockwise from the positive x axis. Part C Determine the magnitude of the resultant force FR = F1 + F2 + F3. Part D Determine the direction of the resultant force FR = F1 + F2 + F3. measured counterclockwise from the positive x axis.

  • Use the parallelogram rule to solve for the resultant of the two forces. Provide both magnitude...

    Use the parallelogram rule to solve for the resultant of the two forces. Provide both magnitude and direction of the resultant. 12 N 35° 20 N

  • Suppose that F1-350 N.(Figure 1)

    Suppose that F1-350 N.(Figure 1) Part A Determine the magnitude of the resultant F' = F1+F2 Part B Determine the direction of the resultant force F' = F1+F2, measured counterclockwise from the positive x axis.Part C Determine the magnitude of the resultant force FR = F1 + F2 + F3. Part D Determine the direction of the resultant force FR = F1 + F2 + F3, measured counterclockwise from the positive x axis.

  • Please just solve part B and the answer is not 86.6 9 of 9 Suppose that...

    Please just solve part B and the answer is not 86.6 9 of 9 Suppose that F1 400 N Fi F2 200 N 90° 150° F3 = 300 N Q Tap image to zoom Part A Determine the magnitude of the resultant F, F1 + F2. Express your answer to three significant figures and include the appropriate units. FValue Units Submit Request Answer Part B Determine the direction of the resultant force F counterclockwise from the positive r axis. F1...

  • 2-6. Determine the magnitude of the resultant force FR = F1 + F2 and its direction,...

    2-6. Determine the magnitude of the resultant force FR = F1 + F2 and its direction, measured clockwise from the positive u axis. 2-7. Resolve the force F1 into components acting along the u and v axes and determine the magnitudes of the components. 2-8. Resolve the force F2 into components acting along the u and v axes and determine the magnitudes of the components.

  • Determine the magnitude of the resultant force and its direction, measured clockwise from the positive x...

    Determine the magnitude of the resultant force and its direction, measured clockwise from the positive x axis F1 = 4kNF2 = 5kN F3 = 8kN

  • the 1-17. Water has a density of 1.94 slug/ft'. What is the density expressed in SI...

    the 1-17. Water has a density of 1.94 slug/ft'. What is the density expressed in SI units? Express the answer to three significant figures. 2-3. Determine the magnitude of the resultant force Fe Fi + F2 and its direction, measured counterclockwise from the positive x axis. F, = 250 lb 30 45° F2 375 lb Prob. 2-3
