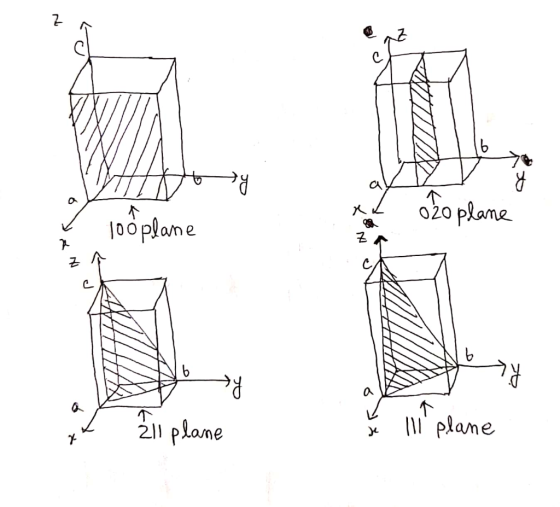

Problem 3: Draw specific (hkl) planes of (100), (020), (211), and (111) on below orthorhombic crystal...
Discuss physically why an actual crystal cannot possess a fivefold axis of rotational symmetry. Draw sketches...
Discuss physically why an actual crystal cannot possess a fivefold axis of rotational symmetry. Draw sketches illustrating a (100) plane, a (110) plane, and a (111) plane in a cubic unit cell. How many equivalent {100}, {110}, and {111} planes are there in a cubic crystal? Regard planes (hkl) and (hkl) as identical. How many equivalent {123} planes are there in a cubic crystal? How many equivalent {111} planes are there in an orthorhombic crystal?
Calculate the separations of planes {111},{211 }, and { 100 } in a crystal in which...
Calculate the separations of planes {111},{211 }, and { 100 } in a crystal in which the cubic unit cell has side 432 pm (pm=10^-12 m).
Homework 3:(Crystal Structure)- Due Thursday 1. Draw the following planes and directions in a tetragonal unit...
Homework 3:(Crystal Structure)- Due Thursday 1. Draw the following planes and directions in a tetragonal unit cell : (001), (011, 13), 110, 1201], [-101] Show cell axes. 2. Find the diffraction direction for Orthorhom bie and Hexagonal crystal lattice 3. Determine, and list in order of increasing angle, the values of 20 and corresponding (hkl for the first three lines (those of lowest 20 values) on the powder patterns of substances with the following structures, the incident radiation being Cu...
Find (cubic); h2+k2 + 12 hkl 100 110 111 200 210 211 220 300, 221 *...
Find (cubic); h2+k2 + 12 hkl 100 110 111 200 210 211 220 300, 221 * The value 7 is missing in the sequence, since there is no possible integral value h2+k2 + 1 = 7
9. Write the Miller indices for the family of close-packed planes in the FCC crystal. {hkl}...
9. Write the Miller indices for the family of close-packed planes in the FCC crystal. {hkl} Hexagonally Close-Packed (HCP) Structure 10. What are the Miller-Bravais indices for the basal planes (i.e., the six-sided top and bottom) and side planes (i.e., the six rectangles of sides a and c) of the HCP unit cell? Basal planes: {uvtw} = Side planes: {uvtw} = 11. Calculate the planar density for the most densely packed HCP planes in terms of atomic radius (R). (Show...
Two pairs of directions are given in a cubic crystal system: [100]-[121] and [011]-[111]. * Compute...
Two pairs of directions are given in a cubic crystal system: [100]-[121] and [011]-[111]. * Compute the Miller indices of the planes formed by each pair of directions. * What is the direction common to those two planes? * Repeat the exercise for a triclinic crystal system with lattice parameters {1,2,3,40,60,80}.
For an FCC single-crystal metal, do the following for both the (100) and the (111) surface plane:...
For an FCC single-crystal metal, do the following for both the (100) and the (111) surface plane: 5) What is the surface coordination number for an atom in each of the surface planes? 6) Hence determine the surface free energies for the (100) and (111) surfaces. Use the formula in the data sheet at the end of the assignment. Express your answer in terms of the bulk lattice parameter a and the cohesive energy HoCompare the surface energies of the...
Problem 3.10 In a simple tetragonal crystal the unit cell dimensions are a=b=0.18 nm and c=...
Problem 3.10 In a simple tetragonal crystal the unit cell dimensions are a=b=0.18 nm and c= 0.24 nm Find the spacing between adjacent (111) planes and adjacent (523) planes in the crystal. For the same crystal structure, find the distance between adjacent atoms along the [111] direction and along the [523] direction.
Niobium (Nb) has the BCC crystal with a lattice parameter a 0.3294 nm. Find the planar concentrations as the number of atoms per nm2 of the (100), (110) and (111) planes. Which plane has the most con...
Niobium (Nb) has the BCC crystal with a lattice parameter a 0.3294 nm. Find the planar concentrations as the number of atoms per nm2 of the (100), (110) and (111) planes. Which plane has the most concentration of atoms per unit area? Sometimes the number of atoms per unit area nsurface on the surface of a crystal is estimated by using the relation nsurface - nbulk2/3 where nbulk is the concentration of atoms in the bulk. Compare nsurface values with...
question about X-ray diffraction and miller index The below figure is the X-ray diffractoinresults of polyethylene...
question about X-ray diffraction and miller index
The below figure is the X-ray diffractoinresults of polyethylene
before and after drawing. Polyethylene crystal is known to have
orthorhombic structure. Please calculate the length a,b, and c of
unit cell for x,y, and z axes, respectively. Calculate teh
d-spacing of crystal planes of (110),(310),(220). Estimate the
exact peak positions of crystal planes of (110), (310), (22)
according to Bragg's law (The wave length of X-ray is
0.154nm)
(110) (002) stretched reference new...
Discuss physically why an actual crystal cannot possess a fivefold axis of rotational symmetry. Draw sketches illustrating a (100) plane, a (110) plane, and a (111) plane in a cubic unit cell. How many equivalent {100}, {110}, and {111} planes are there in a cubic crystal? Regard planes (hkl) and (hkl) as identical. How many equivalent {123} planes are there in a cubic crystal? How many equivalent {111} planes are there in an orthorhombic crystal?
Calculate the separations of planes {111},{211 }, and { 100 } in a crystal in which the cubic unit cell has side 432 pm (pm=10^-12 m).
Homework 3:(Crystal Structure)- Due Thursday 1. Draw the following planes and directions in a tetragonal unit cell : (001), (011, 13), 110, 1201], [-101] Show cell axes. 2. Find the diffraction direction for Orthorhom bie and Hexagonal crystal lattice 3. Determine, and list in order of increasing angle, the values of 20 and corresponding (hkl for the first three lines (those of lowest 20 values) on the powder patterns of substances with the following structures, the incident radiation being Cu...
Find (cubic); h2+k2 + 12 hkl 100 110 111 200 210 211 220 300, 221 * The value 7 is missing in the sequence, since there is no possible integral value h2+k2 + 1 = 7
9. Write the Miller indices for the family of close-packed planes in the FCC crystal. {hkl} Hexagonally Close-Packed (HCP) Structure 10. What are the Miller-Bravais indices for the basal planes (i.e., the six-sided top and bottom) and side planes (i.e., the six rectangles of sides a and c) of the HCP unit cell? Basal planes: {uvtw} = Side planes: {uvtw} = 11. Calculate the planar density for the most densely packed HCP planes in terms of atomic radius (R). (Show...
For an FCC single-crystal metal, do the following for both the (100) and the (111) surface plane: 5) What is the surface coordination number for an atom in each of the surface planes? 6) Hence determine the surface free energies for the (100) and (111) surfaces. Use the formula in the data sheet at the end of the assignment. Express your answer in terms of the bulk lattice parameter a and the cohesive energy HoCompare the surface energies of the...
Niobium (Nb) has the BCC crystal with a lattice parameter a 0.3294 nm. Find the planar concentrations as the number of atoms per nm2 of the (100), (110) and (111) planes. Which plane has the most concentration of atoms per unit area? Sometimes the number of atoms per unit area nsurface on the surface of a crystal is estimated by using the relation nsurface - nbulk2/3 where nbulk is the concentration of atoms in the bulk. Compare nsurface values with...
question about X-ray diffraction and miller index
The below figure is the X-ray diffractoinresults of polyethylene
before and after drawing. Polyethylene crystal is known to have
orthorhombic structure. Please calculate the length a,b, and c of
unit cell for x,y, and z axes, respectively. Calculate teh
d-spacing of crystal planes of (110),(310),(220). Estimate the
exact peak positions of crystal planes of (110), (310), (22)
according to Bragg's law (The wave length of X-ray is
0.154nm)
(110) (002) stretched reference new...
