In the figure above, the vector A has magnitude 78 m and the vector B has...

Question

Question

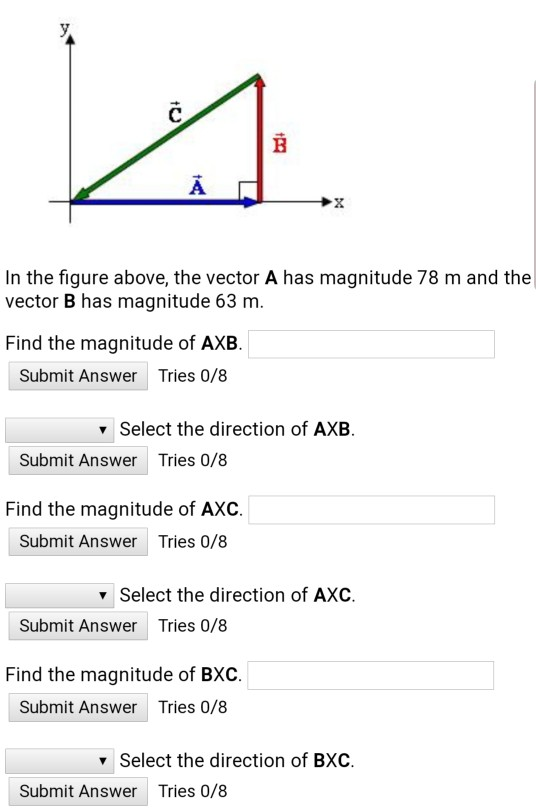

In the figure above, the vector A has magnitude 78 m and the vector B has magnitude 63 m. Find the magnitude of AXB. Tries 0/

science physics

Answer 1

Answer #1

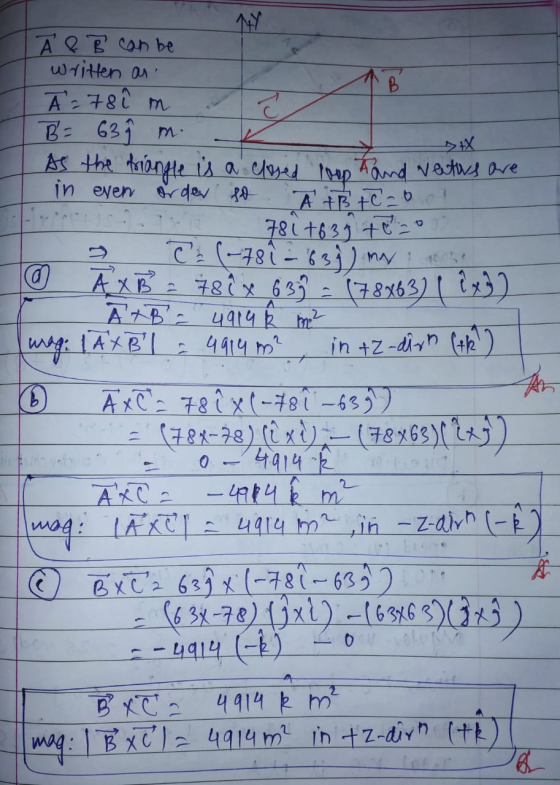

Ā ? B can be written an Ā782 m B = 63 Î m. As the triangle is a closed loro fand weaths are in even order to A Btc-on! 781 +6

Answer 2

Similar Homework Help Questions

Vector A has a magnitude of 3 and makes an angle of 20degrees above the negative...

Vector A has a magnitude of 3 and makes an angle of 20degrees above the negative x-axis. Vector B has a magnitude of 5 and is 20degrees to the right of the positive y-axis. (a) find the scalar product of A*B (b) Find the magnitude and direction of the cross product AxB
(c3p4) Vector A has a magnitude of 10 units at a direction of 255 °, and...

(c3p4) Vector A has a magnitude of 10 units at a direction of 255 °, and vector B has a magnitude of 28 units at a direction of 350, both measured with respect to the positive x axis. What is the magnitude of the vector sum of A and B? Submit Answer Tries 0/99 What is the x-component of the vector sum? Submit Answer Tries 0/99 What is the y-component of the vector sum? Submit Answer Tries 0/99 What is...
vector A has a magnitude of 40.0 m and points in a direction 24.0° above the...

vector A has a magnitude of 40.0 m and points in a direction 24.0° above the negative x-axis. A second vector, vector B , has a magnitude of 84.0 m and points in a direction 60.0° below the positive x-axis. Using the component method, find the magnitude of the vector D resulting from vector A - vector B

A vector A→ has a magnitude of 44.0 m and points in a direction 26.0° above...

A vector A→ has a magnitude of 44.0 m and points in a direction 26.0° above the positive x-axis. A second vector, B→, has a magnitude of 84.0 m and points in a direction 40.0° below the negative x-axis. Using the component method, find the magnitude of the vector →R=→A+→B
A vector →A has a magnitude of 44.0 m and points in a direction 26.0° above...

A vector →A has a magnitude of 44.0 m and points in a direction 26.0° above the positive x-axis. A second vector, B→, has a magnitude of 84.0 m and points in a direction 40.0° below the negative x-axis. Using the component method, find the magnitude of the vector →R=→A + →B
vector A has a magnitude of 50.0 m and is directed 30 degrees above the x...

vector A has a magnitude of 50.0 m and is directed 30 degrees above the x axis. Vector B has a magnitude of 40 m and is directed 60 degrees above the axis. a) sketcg a figure showing the vector B-A b) analyticslly calculate the x and y component of the resultant vector B-A c) analytically calculate magnitude and direction of angle of vector B-A

Vector A⃗ has a magnitude of 30.0 m and makes an angle of 30∘ above the...

Vector A⃗ has a magnitude of 30.0 m and makes an angle of 30∘ above the positive x axis. Vector B⃗ has a magnitude of 13.0 m and is oriented 60∘ to the left of the y axis. A)Find the magnitude of A⃗ −B⃗ . B)Find the direction of A⃗ −B⃗ . C)Find the magnitude of 2A⃗ +B⃗ D)Find the direction of 2A⃗ +B⃗ . E)Find the magnitude of −A⃗ +3B⃗ . F)Find the direction of −A⃗ +3B⃗ .
Vector A has magnitude 9.0 m and is at an angle of 30 above the negative...

Vector A has magnitude 9.0 m and is at an angle of 30 above the negative x-axis, Vector B has magnitude 4.0 m and is at an angle of 20 above the positive x-axis. Vector C (unknown) is the sum of A and B. (a) Find the x-and y-components of the known vectors, A and B. Then, for the unknown vector C find (b) the x- and y-components, and (c) the magnitude and direction. As always as part of your...
2. A vector A has a magnitude of 50.0 m and points in a direction 28.0°...

2. A vector A has a magnitude of 50.0 m and points in a direction 28.0° above the negative x-axis. A second vector, B. has a magnitude of 80.0 m and points in a direction 60.0 above the negative x-axis. Using the component method, find the magnitude of the vector R- Ä + B. x Blank m 3. A vector A has a magnitude of 50.0 m and points in a direction 28.0° above the negative x-axis. A second vector,...

Vector A⃗ has a magnitude of 29 m and makes an angle of 30∘ above the...

Vector A⃗ has a magnitude of 29 m and makes an angle of 30∘ above the positive x axis. Vector B⃗ has a magnitude of 10 m and is oriented 60∘ to the left of the y axis. Find the magnitude and direction of: a) A⃗ − B⃗ b) 2A⃗ + B⃗ c) −A⃗ + 3B⃗
