Question

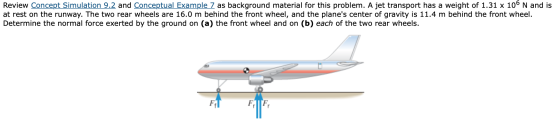

Review Concept Simulation 9.2 and Conceptual Example 7 as background material for this problem. A jet transport has a weight

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Ffront + 2Frear = 1.31 * 106N

Torque conservation about the front wheel gives,

11.4 * 1.31 * 106 – 16 * 2* Frear = 0

Frear = 11.4 * 1.31 * 106 - = 466700 N 16 * 2

Ffront = 1.31 * 106 – 2 * 46.67 * 104 = 376600 N

0 0
