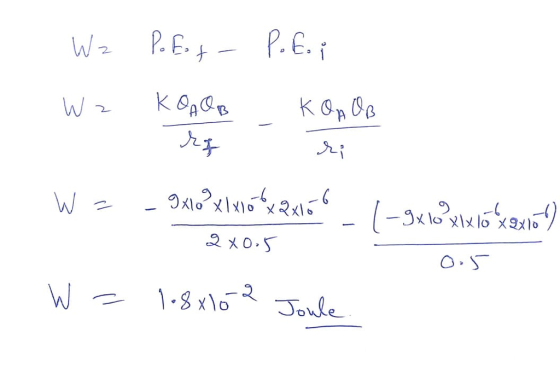

1. Two electric charges QA = + 1.0 μC and QB = - 2.0 μC are located 0.50 m apart. How much work is needed to move the charges apart and double the distance between them? ( step by step ) and why the answer was positive ?
Answer is positive as we have to do some work to separate them
as force between them is attractive

(a) If an estimateence of 4.00 kV. Pld l he den. 64. Two charges of 1.0 μC and-20 ortance μC are 0.50 m apart at two verti- 0.50 m uallel ces of an equilateral triangle as 0.50 m in Figure P16.64. (a) What is the electric potential due to the 1.0-uC charge at the third vertex, point P? (b) What is the electric potential due to the -2.0-uC charge at P? mem- 0.50 m -2.0 μC Figure P16.64 ates (c)...
4.) go.) Four identical metal spheres have charges of qA = -8.0 μC, qB=-2.0 μC, qC=+5.0 μC, and qD=+12.0 μC. (a) Two of the spheres are brought together so they touch, and then they are separated. Which spheres are they, if the final charge on each one is +5.0 μC? (b) In a similar manner, which three spheres are brought together and then separated, if the final charge on each of the three is +3.0 μC? (c) The final charge...
Two 2.0 kg masses are 2.0 m apart on a frictionless table. Each has 1.0 μC of charge. What is the magnitude of the electric force on one of the masses? What is the initial acceleration of each mass if they are released and allowed to move?
Calculate the electric potential at the midpoint between two charges, q1 = 1.0 μC and q2 = -1.0 μC, separated by a distance of 10.0 mm.
Problem 1 Two positive charges each 100 μC and 2 cm apart. Calculate the electric field at a) At point A mid point between the two charges b) At point B at a distance 1.0 cm from point A. c) At point C, 1.0 cm from A. d) At point D, 0.5 cm from A. (A Q1 Q2
A charge of 20.0-μC is held fixed at the origin. A -5.0-μC charge with a mass of 10.0 g is launched (outwards) from the position (1.0 m, 1.0 m) at a speed of 12.0 m/s. (a) At what distance from the origin will its speed be reduced to 6.0 m/s? (b) Will it ever halt? If yes, at what distance will it halt? Three point charges are located at the corners of an equilateral triangle, whose side l = 0.5...
Two objects, O1 and O2, have charges +1.0 μC and -2.0 μC respectively, and a third object, O3, is electrically neutral. A) What is the electric flux through the surface A1 that encloses all the three objects? B) What is the electric flux through the surface A2 that encloses the third object only?
Two charges q1 = 2.0 C and q2 = -2.0 C are located 1.0 m apart. What is the electric field exactly midway between them? a) 14.4 X 104 N/C to the right b) 14.4 X 104 N/C to the left c) 7.2 X 104 N/C to the right d) 7.7X 104 N/C to the left What is the acceleration a proton placed at this point (i.e. the point midway between the charges in the previous problem)? a) 6.9 X...
Two charges of the same sign and equal magnitude Q=0.82 C are
held 2.0 m apart as shown.
How much work is required to move a 1.0 C charge from infinity
to the point P?
6. Two charges of the same sign and equal magnitude Q -0.82 C are held 2.0 m apart as shown Sour 1.0 m 4.0 m 1.0 m 4.0 m How much work is required to move a 1.0 C charge from infinity to the point...
The diagram below shows two point charges-1.2 μC and +1.0 μC separated at a distance of 0.6 m. Point O is the midpoint of the two charges. Calculate the electric potential at point P which is 1.2 m vertically above O. 5 marks] 1.2 m 0.3m 0.3m 410 +1.0 uC
