Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45),...
10 DIELECTRICS IN A CAPACITOR 105 92 4AC Figure 18.43: Problem 3 C1 Figure 18.44: Problem...

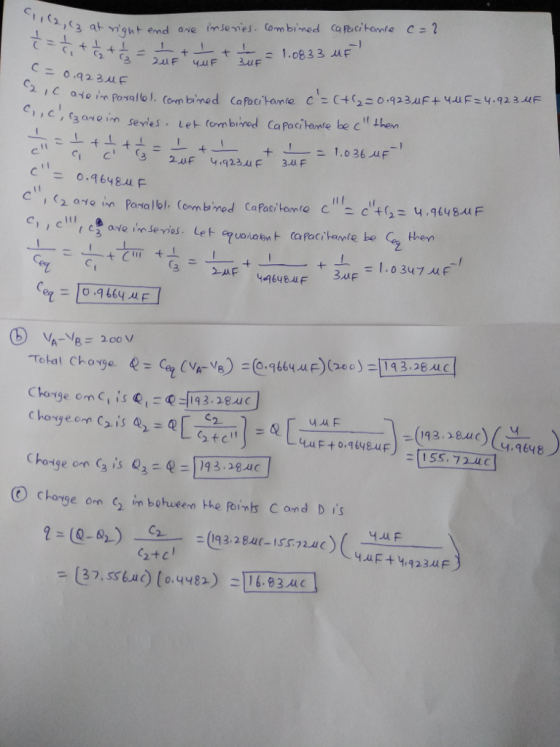

10 DIELECTRICS IN A CAPACITOR 105 92 4AC Figure 18.43: Problem 3 C1 Figure 18.44: Problem 4 Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45), if C1-2pF,C2-4uF and Cs -3uF i) Determine the charge on the capacitors Ch. C2 and C's,that are closest to the points A and B, when the potential difference between points A and B, VA - VB-200V ii) Determine the potential difference between point C and D, Vc-VD...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8pF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
For the system of four capacitors shown in the figure, find (i) the equivalent capacitance of...
For the system of four capacitors shown in the figure, find (i) the equivalent capacitance of the system, (ii) the charge on each capacitor, and (iii) the potential difference across each capacitor.
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values...
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
The figure shows a network of three capacitors, C1 = 3.0μF, C2 = 4.0μF, and C3...
The figure shows a network of three capacitors,
C1 = 3.0μF, C2 = 4.0μF, and
C3 = 8.0μF, connected to a constant applied
potential Vacacross terminals a and
c. The capacitors in the network are fully charged, and
the charge on C2
is60.0μC.
a. What is the charge (in units of
μC) on
capacitor C3?
b. What is the value (in units of μF) of the equivalent
capacitance Cacof the three-capacitor network
between points a andc?
c. What is the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
What is the equivalent capacitance of the three capacitors in the figure below? What is the...
What is the equivalent capacitance of the three capacitors in the figure below? What is the equivalent capacitance of the three capacitors in the figure below? What are the charge on and the potential difference across each capacitor the figure below?
In Figure 4, all of the capacitors have identical capacitance C, and the battery provides 60V....
In Figure 4, all of the capacitors have identical capacitance C, and the battery provides 60V. C1 60V C2 C4 C3 Figure 4 Consider the following scenarios, in each case starting with uncharged capacitors. Explain your answers. Case I (a) While switch B is kept open, switch A is closed and then opened after C1, C2 and Cs are fully charged. What is the potential difference across each capacitor? (b) Subsequently switch B is closed. What is now the electric...
(3%) Problem 35: Three capacitors are connected in series as shown in the figure. The capacitances...
(3%) Problem 35: Three capacitors are connected in series as shown in the figure. The capacitances are C1=4.7 uF, and C2 = 6.2 uF, C3 is unknown, and the charge stored in each capacitor is Q = 2.5 UC. Otheexpertta.com 20% Part (a) Express the capacitance C of a capacitor in terms of charge C = Q/AV Correct! and voltage AV on it. A 20% Part (b) Apply the above formula to capacitor C, to find an expression for the...
10 DIELECTRICS IN A CAPACITOR 105 92 4AC Figure 18.43: Problem 3 C1 Figure 18.44: Problem 4 Problem 5 i) Determine the equivalent capacitance for the system of capacitors shown in figure (18.45), if C1-2pF,C2-4uF and Cs -3uF i) Determine the charge on the capacitors Ch. C2 and C's,that are closest to the points A and B, when the potential difference between points A and B, VA - VB-200V ii) Determine the potential difference between point C and D, Vc-VD...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8pF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
For the system of four capacitors shown in the figure, find (i) the equivalent capacitance of the system, (ii) the charge on each capacitor, and (iii) the potential difference across each capacitor.
Four capacitors are arranged in the circuit shown in the figure.
The capacitors have the values C1 = 27.5 μF, C2 = 45.5 μF, C3 =
50.5 μF, C4 = 40.5 μF, and the power supply is at voltage V = 16.5
V. What is the equivalent capacitance of the circuit?
Four capacitors are arranged in the circuit shown in the figure. The capacitors have the values C1-27.5 μF, C2 = 45.5 μF, C3 = 50.5 F, C.-40.5 and the...
The figure shows a network of three capacitors,
C1 = 3.0μF, C2 = 4.0μF, and
C3 = 8.0μF, connected to a constant applied
potential Vacacross terminals a and
c. The capacitors in the network are fully charged, and
the charge on C2
is60.0μC.
a. What is the charge (in units of
μC) on
capacitor C3?
b. What is the value (in units of μF) of the equivalent
capacitance Cacof the three-capacitor network
between points a andc?
c. What is the...
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
Problem 6 A capacitor with capacitance C1 6uF is connected to a 20V battery. After the capacitor is charged, the battery is disconnected. The capacitor is then connected in parallel with a second capacitor with capacitance C2 8uF. The second capacitor is initially uncharged. Determine the charge on each capacitor after they have been connected
What is the equivalent capacitance of the three capacitors in the figure below? What is the equivalent capacitance of the three capacitors in the figure below? What are the charge on and the potential difference across each capacitor the figure below?
In Figure 4, all of the capacitors have identical capacitance C, and the battery provides 60V. C1 60V C2 C4 C3 Figure 4 Consider the following scenarios, in each case starting with uncharged capacitors. Explain your answers. Case I (a) While switch B is kept open, switch A is closed and then opened after C1, C2 and Cs are fully charged. What is the potential difference across each capacitor? (b) Subsequently switch B is closed. What is now the electric...
(3%) Problem 35: Three capacitors are connected in series as shown in the figure. The capacitances are C1=4.7 uF, and C2 = 6.2 uF, C3 is unknown, and the charge stored in each capacitor is Q = 2.5 UC. Otheexpertta.com 20% Part (a) Express the capacitance C of a capacitor in terms of charge C = Q/AV Correct! and voltage AV on it. A 20% Part (b) Apply the above formula to capacitor C, to find an expression for the...
