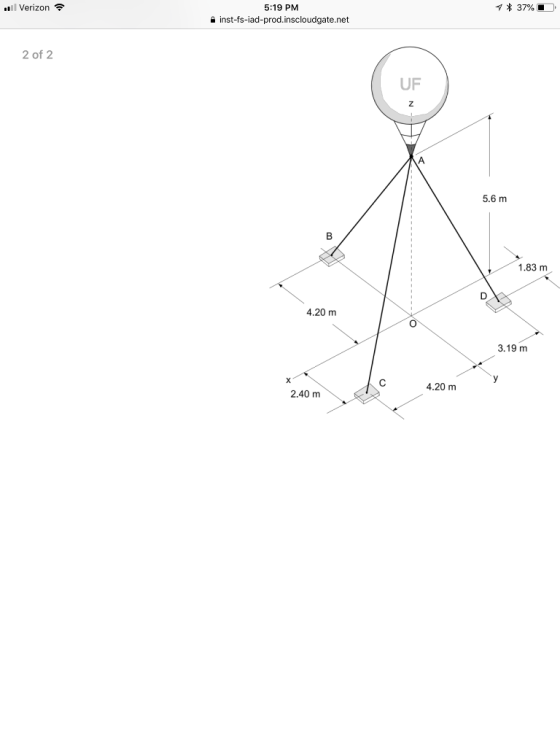

The helium balloon shown below
is tethered by the ropes AB, AC and AD. The tension in rope AD is
990 N.
a) Write unit vectors for the directions AB and AC.
b) Express the force in rope AD as a Cartesian vector.
Homework Answers
Add Answer to:
The helium balloon shown below
is tethered by the ropes AB, AC and AD. The tension...
The helium balloon shown below is tethered by the ropes AB, AC and AD. The tension...
The helium balloon shown below is tethered by the ropes AB, AC
and AD. The tension in rope AD is 990 N.
a) Write unit vectors for the directions AB and AC.
b) Express the force in rope AD as a Cartesian vector.
The helium balloon shown below is tethered by the ropes AB, AC and AD. The tension in rope AD is 990 N. a) Write unit vectors for the directions AB and AC. b) Express the force in...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension in cable AB is 480 N, determine the vertical force exerted by the balloon at A, and the tension forces in cables AC and AD 5.60 m B D 40 m 0 3.30 m 4.20 m 2.40 m x
The helium balloon shown below is tethered by the ropes AB, AC
and AD. The tension in rope AD is 990 N.
a) Write unit vectors for the directions AB and AC.
b) Express the force in rope AD as a Cartesian vector.
The helium balloon shown below is tethered by the ropes AB, AC and AD. The tension in rope AD is 990 N. a) Write unit vectors for the directions AB and AC. b) Express the force in...
4. (25%) Three cables are used to restrain a balloon as shown. Knowing that the tension in cable AB is 480 N, determine the vertical force exerted by the balloon at A, and the tension forces in cables AC and AD 5.60 m B D 40 m 0 3.30 m 4.20 m 2.40 m x
