Question

help please...thanks in advance.

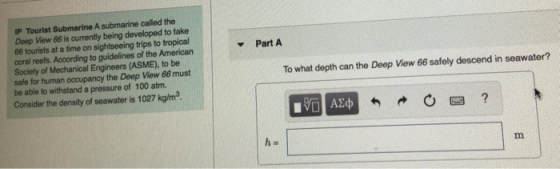

Be tourists at a brding to guiders (ASME), 106 Part A IP Tourist Submarine A submarine called the Deep View 66 is currently being developed to take 66 tourists at a time on sightseeing trips to tropical coral reefs. According to guidelines of the American Society of Mechanical Engineers (ASME), to be safe for human occupancy the Deep View 66 must be able to withstand a pressure of 100 atm. Consider the density of seawater is 1027 kg/mº To what depth can the Deep View 66 safely descend in seawater? 180 AX¢* *o ?

Answer 1

Maximum allowed pressure must also include the atmospheric pressure above the sea surface. Hence the total pressure of seawater cannot exceed 99 atm because the atmospheric pressure contributes 1 atm.***********************************************************************************************
Check the answer and let me know immediately if you find something wrong or missing... I will rectify the mistakes asap if any

Paten + Pwater = 100 atm = 1 atm t heg = 100 atm - heg= 99 atm > h(1027 kg) m3) (9.8 m/s2) = 99X101 325 Pa 2 h = 746 + wa
