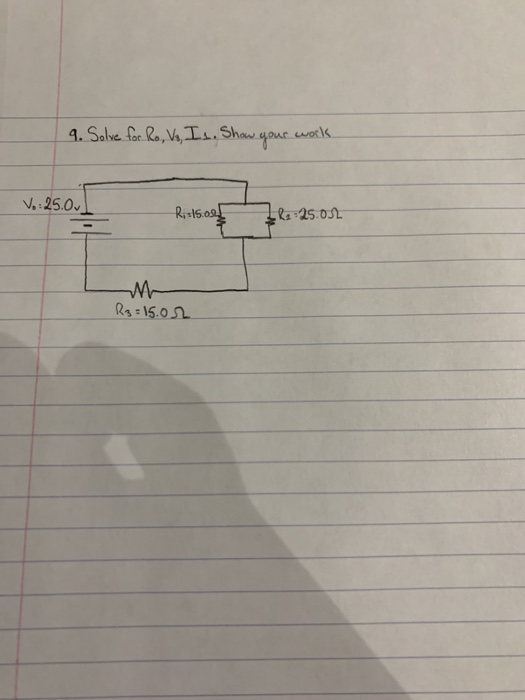

our work V:25.0 R-15 25.0

Question

Question

science physics

Answer 1

Answer #1

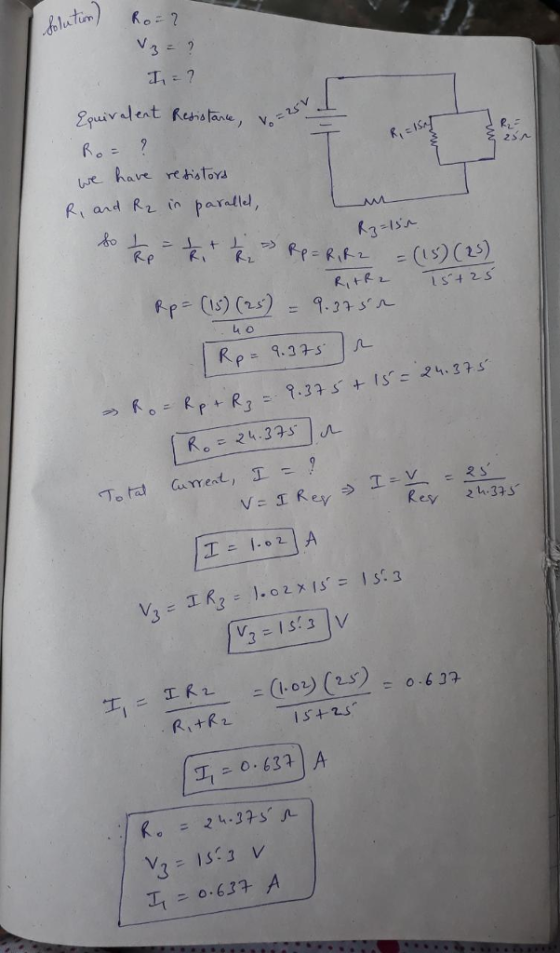

Solution) This problem is based on current electricity

Mainly two resistors in parallel

(1/Rp) = (1/R1) + ( 1/R2)

Rp = R1R2/(R1 + R2)

Two Resistors in series

Rs = R1 + R2

From ohms law we have V = iR

R1 and R2. in parallel, s) (25) Rey 2 3 ニ(1.02) (2s 3

Answer 2

Similar Homework Help Questions

ider the circuit shown in the figure below. (Let R = 40.0 .) 25.0 V 10.0...

ider the circuit shown in the figure below. (Let R = 40.0 .) 25.0 V 10.0 10.0 b a 5.00 R 5.00 (a) Find the current in the 40.0-0 resistor. A (b) Find the potential difference between points a and b. V ider the circuit shown in the figure below. (Let R = 40.0 .) 25.0 V 10.0 10.0 b a 5.00 R 5.00 (a) Find the current in the 40.0-0 resistor. A (b) Find the potential difference between points...
A 14.6 uF capacitor is charged by a 25.0 V battery through a resistance R. The...

A 14.6 uF capacitor is charged by a 25.0 V battery through a resistance R. The capacitor reaches a potential difference of 4.00 V at a time 3.00 s after charging begins. Find R. ΚΩ Need Help? ReadIt
R 60 R R 5. A 60-uF capacitor is charged to 60 V, and then connected...

R 60 R R 5. A 60-uF capacitor is charged to 60 V, and then connected across (in parallel) an charged 20-uF 40 V capacitors. What is the final potential difference across the 2 capacitor? (Step by step solution) (15 points) What is the energy of C2when C 25.0 uF, C2 15 HF, C3 50 uF, and Vo 18 V? (15 C Catcz V-Vo

12. In the circuit shown, R,-4.00 Ω,R,-7.00 Ω, C-25.0 μF, and V,-(21.4 V)Cos[(5756 rad/s)t]. what...

Please explain! 12. In the circuit shown, R,-4.00 Ω,R,-7.00 Ω, C-25.0 μF, and V,-(21.4 V)Cos[(5756 rad/s)t]. what is the nominal value of the inductor that can be added in series with the source that wll make the power factor 1 A) 604 HH B) 606 μΗ C) 608 μΗ D) 610 μΗ E) None of these R2 12. In the circuit shown, R,-4.00 Ω,R,-7.00 Ω, C-25.0 μF, and V,-(21.4 V)Cos[(5756 rad/s)t]. what is the nominal value of the inductor that...
Consider the circuit shown in the figure below. (Let R = 18.0 12.) 25.0 V 10.022...

Consider the circuit shown in the figure below. (Let R = 18.0 12.) 25.0 V 10.022 10.022" 5.00 13 5.00 12 (a) Find the current in the 18.0-12 resistor. (b) Find the potential difference between points a and b.
When R=10, V=15, when R=20,V=20 What is vif R is infinite? M R * en s

When R=10, V=15, when R=20,V=20 What is vif R is infinite? M R * en s

What is the current in the following circuit if R 10 Ohms and V - 15...

What is the current in the following circuit if R 10 Ohms and V - 15 V? 36 V Does the current flow clockwise or counterclockwise? counterclockwise O clockwise

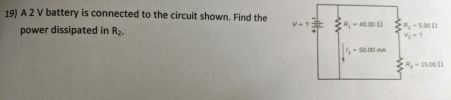

Please show your work v- R, - 40.00 N 19) A2 V battery is connected to...
