What is the name of the compound? and draw the structure OIB: 1H NMR spectra -...

Question

Question

What is the name of the compound? and draw the structure

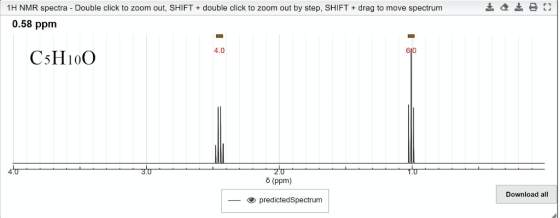

OIB: 1H NMR spectra - Double click to zoom out, SHIFT + double click to zoom out by step, SHIFT + drag to move spectrum 0.58

science chemistry

Answer 1

Answer #1

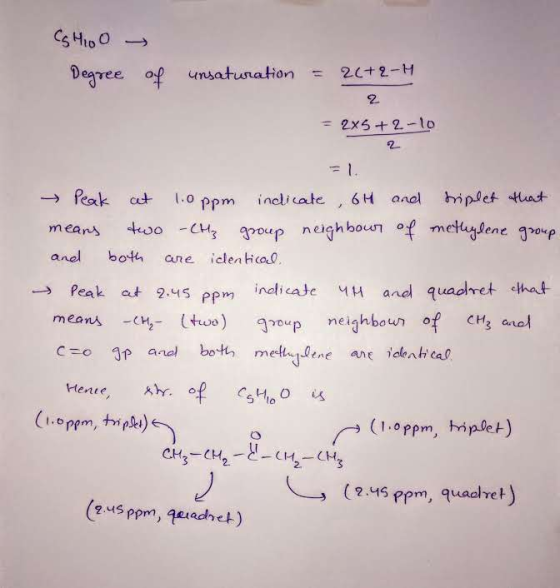

CGH00 - Degree of unsaturation = 2(+2-4 2 = 2x5+2-10 → Peak cet 1.0ppm inclicate 6H and triplet that means two -CH₂ group nei

Answer 2
