A car accelerates from rest on a horizontal surface. The engine provides a torque of τ...
A car accelerates from rest on a horizontal surface. The engine provides a torque of τ = 200 Nm on each of the two front wheels. Each of the four wheels on the car weigh m = 15 kg, have radius R = 35.0 cm and can be considered solid, uniform discs. The rest of the car (not the wheels) has a mass of M = 1000 kg. a) What is the acceleration of the car? I am trying to solve this with force and torque equation. The car now starts going up an incline of angle θ = 15◦. b) If the engine is turned off, what is now the acceleration of the car? c) What should the torque on each of the front wheels be, so that the car continues up the hill at constant speed?

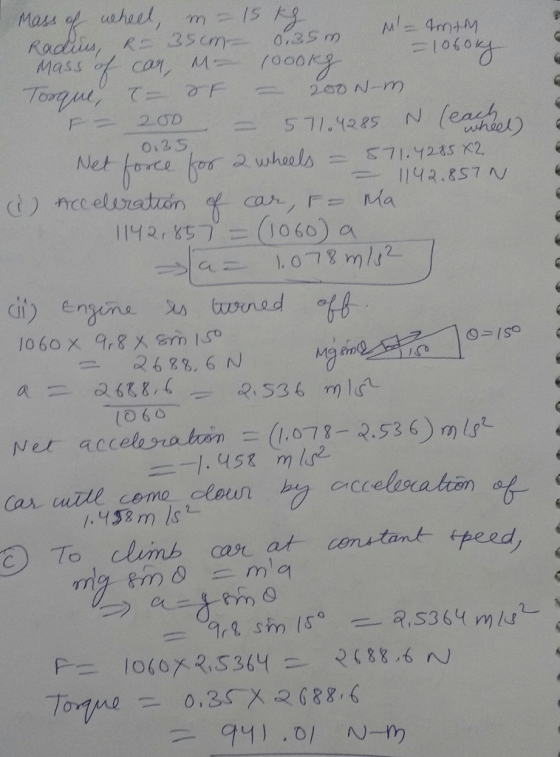

Homework Answers
Add Answer to:
A car accelerates from rest on a horizontal surface. The engine
provides a torque of τ...
A car starting from rest on a horizontal road accelerates for 11 seconds until it reaches...
A car starting from rest on a horizontal road accelerates for 11 seconds until it reaches a speed of 35 m/s. It then maintains this speed until it starts driving up a hill that is a 11° incline. Just as the car starts up the hill the engine dies and it coasts to a stop on the hill. A) Sketch the car’s trip. You can treat the horizontal and sloped parts as separate but connected. Identify all variables. Collect all...
a 10% efficient engine accelerates a 1500 kg car from rest to 15 m/s. how much energy is transferred to the engine by b...
a 10% efficient engine accelerates a 1500 kg car from rest to 15 m/s. how much energy is transferred to the engine by burning gasoline?
1. Suppose an automobile engine can produce 185 N·m of torque, and assume this car is...
1. Suppose an automobile engine can produce 185 N·m of torque, and assume this car is suspended so that the wheels can turn freely. Each wheel acts like a 14 kg disk that has a 0.175 m radius. The tires act like 2.1 kg rings that have inside radii of 0.175 m and outside radii of 0.32 m. The tread of each tire acts like a 8.5 kg hoop of radius 0.325 m. The 15 kg axle acts like a...
An car of mass m starts from rest and accelerates uniformly up a ramp. It reaches...
An car of mass m starts from rest and accelerates uniformly up a ramp. It reaches the top of the ramp in one second. The ramp has length L and makes an angle θ with the horizontal. Assume that all friction forces can be lumped together under a single force Ff associated with a single friction constant μk. Find the acceleration of the car in terms of L.
A 1500-kg car starts from rest and accelerates uniformly to 18.0 m/s in 12.0 s over...
A 1500-kg car starts from rest and accelerates uniformly to 18.0 m/s in 12.0 s over a dry concrete road. Assume that kinetic friction remains constant at 400 N during this time. – (a) Find the net work done on the car and the work done by the engine. – (b) How many revolutions does each tire make over the 12.0 s interval? What is the angular speed of the wheels when the car has traveled half the total distance?...
A jogger accelerates from rest to 3.1 m/s in 2.4 s. A car accelerates from 35.0...
A jogger accelerates from rest to 3.1 m/s in 2.4 s. A car accelerates from 35.0 to 42.0 m/s also in 2.4 s. (a) Find the acceleration (magnitude only) of the jogger. m/s2 (b) Determine the acceleration (magnitude only) of the car. m/s2 c) If so, how much farther?
Suppose an automobile engine can produce 220 N⋅m of torque, and assume this car is suspended so t...
Suppose an automobile engine can produce 220 N⋅m of torque, and assume this car is suspended so that the wheels can turn freely. Each wheel acts like a 15 kg disk that has a 0.155 m radius. The tires act like 1.8-kg rings that have inside radii of 0.18 m and outside radii of 0.305 m. The tread of each tire acts like a 12-kg hoop of radius 0.325 m. The 14-kg axle acts like a solid cylinder that has...
A 30%-efficient car engine accelerates the 1800 kg car from rest to 11 m/s. Part A How much energy is transferred t...
A 30%-efficient car engine accelerates the 1800 kg car from rest to 11 m/s. Part A How much energy is transferred to the engine by burning gasoline in km? Express your answer using two significant figures.
A 972-kg car starts from rest on a horizontal roadway and accelerates eastward for 5.00 s...
A 972-kg car starts from rest on a horizontal roadway and accelerates eastward for 5.00 s when it reaches a speed of 30.0 m/s. What is the average force exerted on the car during this time? kN eastward
A 1.50 ✕ 103-kg car starts from rest and accelerates uniformly to 15.2 m/s in 12.7...
A 1.50 ✕ 103-kg car starts from rest and accelerates uniformly to 15.2 m/s in 12.7 s. Assume that air resistance remains constant at 400 N during this time. (a) Find the average power developed by the engine. hp (b) Find the instantaneous power output of the engine at t = 12.7 s, just before the car stops accelerating. hp
1. Suppose an automobile engine can produce 185 N·m of torque, and assume this car is suspended so that the wheels can turn freely. Each wheel acts like a 14 kg disk that has a 0.175 m radius. The tires act like 2.1 kg rings that have inside radii of 0.175 m and outside radii of 0.32 m. The tread of each tire acts like a 8.5 kg hoop of radius 0.325 m. The 15 kg axle acts like a...
