In a phase diagram, what does a point in the liquidus line represent? what does a...
Homework Answers
In a phase diagram, liquidus line is defined as the line or boundary that separates the liquid phase from the solid + liquid phases.
Solidus line is defined as the line below which the solution is completely solid.
Thus the point in a liquidus line represents the equilibrium of the phase of liquid and liquid + solid.
Solidus line represents the equilibrium between solid phase and solid + liquid phase.
An isomorphous phase diagram is shown below and liqidus and solidus are identified.
Add Answer to:
In
a phase diagram, what does a point in the liquidus line represent?
what does a...
3) 25 pt For the phase diagram showed below, do the following: a) Identify the liquidus,...

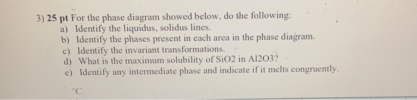

3) 25 pt For the phase diagram showed below, do the following: a) Identify the liquidus, solidus lines. b) Identify the phases present in each area in the phase diagram. c) Identify the invariant transformations. d) What is the maximum solubility of SiO2 in A12032 .. e) Identify any intermediate phase and indicate if it melts congruently, °C 2,200 2,100 2,054 2.000 1.900 1.890 1.800 (1.726 1,700 1.600 1.500 1.400 Sio 10 2 0 10 70 90 AIO 10 -...
Given here are the solidus and liquidus tempera- tures for the copper-gold system. Construct the phase...
Given here are the solidus and liquidus tempera- tures for the copper-gold system. Construct the phase diagram for this system and label each region. Composition (wt% Au) 20 Solidus Temperature (°C) 1085 1019 972 934 911 928 974 1064 Liquidus Temperature (°C) 1085 1042 996 946 911 942 984 1064 60 80 90 95 100
3. On Silver-Copper phase diagram, label the liquidus line, eutectic point, and all unlabeled regions. Also...
3. On Silver-Copper phase diagram, label the liquidus line, eutectic point, and all unlabeled regions. Also answer questions below a. How many phases are there? b. What is the eutectic temperature? c. What is the eutectic concentration (in mass percent)? d. What is the composition of the Ag in the solid solution at the eutectic temperature? e. What is the composition of the Cu in the solid solution at the eutectic temperature? f. At 600°C what is the composition of...
C a now What does the arrow at represent? Consider the phase diagram shown below. What...
C a now What does the arrow at represent? Consider the phase diagram shown below. What does the arrow at X represent? deposition liquid vapor equilibrium sed voru brum triple point
What does the triple point on a phase diagram represent? Select one: a. It represents the...
What does the triple point on a phase diagram represent? Select one: a. It represents the conditions under which a substance can exist in two of the three phases in stable form. b. It represents the point at which the distinction between liquid and gas phases becomes unclear. c. It represents the conditions of pressure and temperature under which solid, liquid, and gas all co-exist. d. It represents the point at which the substance undergoes sublimation.
A binary phase diagram of material A and material B with 36.4 weight %B is at...
A binary phase diagram of material A and material B with 36.4 weight %B is at a temperature where both solids and liquids are present. If the intersection with the liquidus line (on the left) at this temperature is 5.3 weight %B and the intersection with the solidus line (on the right) is 70.1 weight %B, determine the amount of solid present in the liquid solid combination in %. Answer in % without the symbol.
Based on the diagram below, what would be the weight percent of the solid at point N? (Give your answer in %, so if you...
Based on the diagram below, what would be the weight percent of the solid at point N? (Give your answer in %, so if you calculate 0.10 or 10%, enter as 10) 400 L A LIQUID M 300 LIQUIDUS LIQUIDUS L+B a+L SOLIDUS DHSOLIDUS 97.5% B 200 C SOLIDUS 183°C 19.2% 61.9% 100 R* R R 100 Pure Sn 80 60 40 20 Pure Pb Composition in wt.% Sn Temperature (Do OOLVUS SOLVUS
Based on the diagram below, what would...
Consider the phase diagram shown below. What does the arrow at X represent? deposition liquid vapor...
Consider the phase diagram shown below. What does the arrow at X represent? deposition liquid vapor equilibrium solldvapor equilibrium triple point
2800 2400 E 2000 1600 40 80 Rh 20 60 Mo γ+p weight percent rhodium a. On the phase diagram provided above, identify all solid solutions, intermetallics and two-phase regions. (you can write SS, I...
2800 2400 E 2000 1600 40 80 Rh 20 60 Mo γ+p weight percent rhodium a. On the phase diagram provided above, identify all solid solutions, intermetallics and two-phase regions. (you can write SS, I, and/or P 2 on the diagram) b. Determine the phases present and the compositions of these phases for a 30%Rh and a 60%Rh alloy at 2000 C. c. Identify a liquidus, a solidus, and a solvus line on the phase diagram. d. Design two possible...
For the Cu-Ag phase diagram, answer the following. Label the figure and add is part of...
For the Cu-Ag phase diagram, answer the following. Label the figure and add is part of your answer sheet........ ...(11 points) a) What is the eutectic temperature and composition? (1 point) b) In the context of this diagram, what does the symbol B represent? (1 point) c) Assume slow cooling and that equilibrium conditions exist for the alloy for 70 wt% Ag – 30 wt% Cu. If this is being cooled from 1000 °C, when will the first solid form...
3) 25 pt For the phase diagram showed below, do the following: a) Identify the liquidus, solidus lines. b) Identify the phases present in each area in the phase diagram. c) Identify the invariant transformations. d) What is the maximum solubility of SiO2 in A12032 .. e) Identify any intermediate phase and indicate if it melts congruently, °C 2,200 2,100 2,054 2.000 1.900 1.890 1.800 (1.726 1,700 1.600 1.500 1.400 Sio 10 2 0 10 70 90 AIO 10 -...
Given here are the solidus and liquidus tempera- tures for the copper-gold system. Construct the phase diagram for this system and label each region. Composition (wt% Au) 20 Solidus Temperature (°C) 1085 1019 972 934 911 928 974 1064 Liquidus Temperature (°C) 1085 1042 996 946 911 942 984 1064 60 80 90 95 100
3. On Silver-Copper phase diagram, label the liquidus line, eutectic point, and all unlabeled regions. Also answer questions below a. How many phases are there? b. What is the eutectic temperature? c. What is the eutectic concentration (in mass percent)? d. What is the composition of the Ag in the solid solution at the eutectic temperature? e. What is the composition of the Cu in the solid solution at the eutectic temperature? f. At 600°C what is the composition of...
C a now What does the arrow at represent? Consider the phase diagram shown below. What does the arrow at X represent? deposition liquid vapor equilibrium sed voru brum triple point
Based on the diagram below, what would be the weight percent of the solid at point N? (Give your answer in %, so if you calculate 0.10 or 10%, enter as 10) 400 L A LIQUID M 300 LIQUIDUS LIQUIDUS L+B a+L SOLIDUS DHSOLIDUS 97.5% B 200 C SOLIDUS 183°C 19.2% 61.9% 100 R* R R 100 Pure Sn 80 60 40 20 Pure Pb Composition in wt.% Sn Temperature (Do OOLVUS SOLVUS
Based on the diagram below, what would...
Consider the phase diagram shown below. What does the arrow at X represent? deposition liquid vapor equilibrium solldvapor equilibrium triple point
2800 2400 E 2000 1600 40 80 Rh 20 60 Mo γ+p weight percent rhodium a. On the phase diagram provided above, identify all solid solutions, intermetallics and two-phase regions. (you can write SS, I, and/or P 2 on the diagram) b. Determine the phases present and the compositions of these phases for a 30%Rh and a 60%Rh alloy at 2000 C. c. Identify a liquidus, a solidus, and a solvus line on the phase diagram. d. Design two possible...
For the Cu-Ag phase diagram, answer the following. Label the figure and add is part of your answer sheet........ ...(11 points) a) What is the eutectic temperature and composition? (1 point) b) In the context of this diagram, what does the symbol B represent? (1 point) c) Assume slow cooling and that equilibrium conditions exist for the alloy for 70 wt% Ag – 30 wt% Cu. If this is being cooled from 1000 °C, when will the first solid form...
