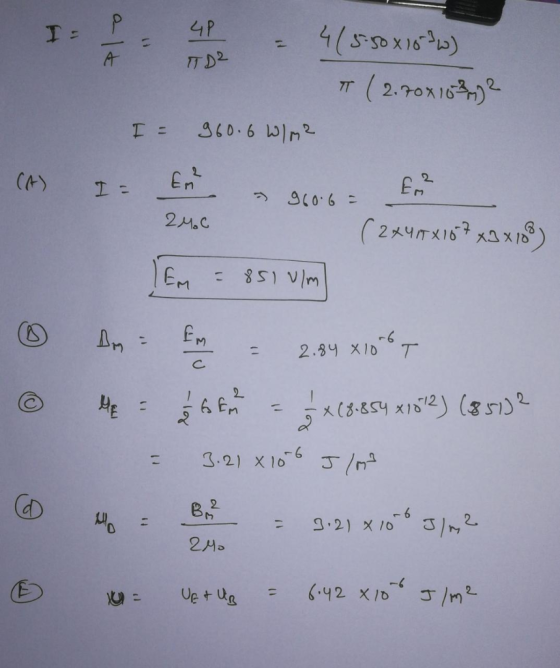

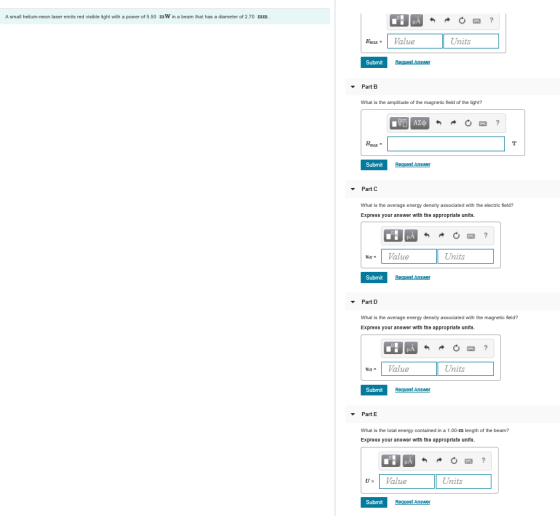

A small helium-neon laser emits red visible light with a power of 5.50 mW in a...
A small helium-neon laser emits red visible light with a power of 5.80 mW in a beam that has a diameter of 2.90 mm . a) What is the amplitude of the electric field of the light? b)What is the amplitude of the magnetic field of the light? c)What is the average energy density associated with the electric field? d)What is the average energy density associated with the magnetic field? e)What is the total energy contained in a 1.00-m length...
A helium-neon laser emits a 2.0-mm-diameter laser beam with a power of 2.0 mW . Part A What is the amplitude of the electric field of the light wave? Express your answer with the appropriate units. Part B What is the amplitude of the magnetic field of the light wave? Express your answer with the appropriate units.
A typical helium-neon laser found in supermarket checkout scanners emits 633-nm-wavelength light in a 1.1-mm-diameter beam with a power of 1.0 mW . A. What is the amplitude of the oscillating electric field in the laser beam? Express your answer with the appropriate units. B. What is the amplitude of the oscillating magnetic field in the laser beam? Express your answer with the appropriate units.
A 5.20 mW helium neon laser emits a visible laser beam with a wavelength of 633 nm. how many photons are emitted per second? Express your answer as a number of photons per second.
Problem 17.5 - Enhanced - with Feedback A helium-neon laser beam has a wavelength in air of 633 nm. It takes 1.33 ns for the light to travel through 28.0 cm of an unknown liquid Part A What is the wavelength of the laser beam in the liquid? Express your answer with the appropriate units. HA ? liquid Value Units Submit Request Answer
A helium-neon laser emits an unpolarized pulse of light carrying
an energy of 0.35 Joules in 225 fs pulses (1 femtosecond = 10^-15
s). Each pulse encounters three polarizers as shown in the picture
(polarization angles measured with respect to the vertical
axis).
(a) What is the average power emitted by the laser during each
pulse?
(b) If the beam is cylindrical with a 2.0mm diameter, find the
average intensity Io of the pulse.
(c) Find ? such that the...
Mirror Laser Discharge 1.0 mm beam Partial mirror Electrodes Power supply Review A helium-neon laser (λ = e33 nm) is built with a glass tube of inside diameter 1。0 mm. as shown in (Figure 1). One mirror is partially transmitting to allow the laser beam out. An electrical discharge in the tube causes it to glow like a neon light. From an optical perspective, the laser beam is a light wave that diffracts out through a 1.0-mm-diameter circular The angle...
A 12.0 mW helium-neon laser (λ = 632.8 nm) emits a beam of circular cross-section with a diameter of 2.60 mm. (a) Find the maximum electric field in the beam. kN/C (b) What total energy is contained in a 1.00 m length of the beam? pJ (c) Find the momentum carried by a 1.00 m length of the beam. kg·m/s
A laser emits a cylindrical beam of light 2.6 mm in diameter. If the average power of the laser is 2.4 mW, what is the rms value of the electric field in the laser beam? Express your answer using two significant figures.
A laser emits a cylindrical beam of light 2.6 mm in diameter. If the average power of the laser is 2.6 mW , what is the rms value of the electric field in the laser beam? (Units for the answer is kV/m)
