Consider charges q placed along the x-axis at x=na with n = ±0,1,2,3…. Sketch the electric field lines

science physics

Answer 1

Answer #1

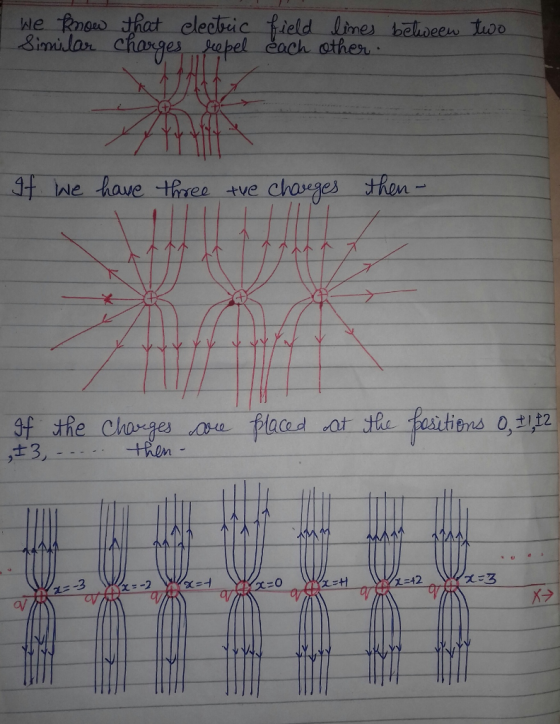

The main fact to draw electric field lines for such given pattern is that electric field lines from similar charges repel each other.

2s 0,±112 -3 ニ42 or

Answer 2

Similar Homework Help Questions

there are two +3.5 microC charges that are placed along the x-axis at x=-1.6m and x=+1.6....

there are two +3.5 microC charges that are placed along the x-axis at x=-1.6m and x=+1.6. what is the magnitude and the expected direction of the electric field at x=+0.40m? If a third +3.5 microC charge is brought in and placed on the x-axis at x=+0.40m what is the magnitude of the force on it due to the previous two charges??
Two point charges are placed on the x-axis. The first with charge +Q is at the...

Two point charges are placed on the x-axis. The first with charge +Q is at the origin, and the second with charge −2Q is at x = 1.0 m. Where on the x-axis is the electric field equal to zero?
Three charges are placed along the x-axis as shown. Find the electric potential energy of this...

Three charges are placed along the x-axis as shown. Find the electric potential energy of this configuration. 4Q 20 + + o a -14 (Q2/418a) • 11(02141&pa) 10 (Q?147pa) 0 0-10 (Q2/4nɛoa) • -11 (22148£pa) 0-14 (Q148€ga)

Consider charges placed along an x-axis. If a charge of +20 nC is placed at x...

Consider charges placed along an x-axis. If a charge of +20 nC is placed at x = 0.00 m and a charge of +33 nC is placed at x = 1.00 m, where would a third charge of -14.0 nC be in electrostatic equilibrium?
Quadrupole charge distribution. Consider the four-charge distribution in the xy- plane along the x-axis, the y-axis,...

Quadrupole charge distribution. Consider the four-charge distribution in the xy- plane along the x-axis, the y-axis, and in the x = y direction for positive charges at a (1,1), a (-1,-1) and negative charges at a (11) and a (-1,1). Take the absolute value of the charges to be the same and equal to q. a) Recall in class we found that for the dipole charge distribution there are two axes of symmetry defined to be straight lines to which...
Two charges are placed on the x axis. One of the charges (q1-+8.6 pC) is at...

Two charges are placed on the x axis. One of the charges (q1-+8.6 pC) is at xi-+3.1 cm and the other (q2--22 μΟ is at x2 . +9.1 cm. (a) Find the net electric field (magnitude and direction) at x-0 ㎝.(use the sign of your answer to indicate the direction along the x-axis.) N/C (b) Find the net electric fleld (magnitude and direction) at x-+5.6 cm. (Use the sign of your answer to indicate the direction along the x-axis.) N/C

2. Three charges are fixed at positions along the a-axis as positions -d, o, and +d....

2. Three charges are fixed at positions along the a-axis as positions -d, o, and +d. The charges at -d and d are both and the charge at O is positive. (a) A positively charged object of mass m is placed on the x-axis between O and d, close to the positlicn the three charges described above do not move as a result of this new charged object, describe the mois object after it is released as it moves in...
1 points Two charges are placed on the x axis. One of the charges (q1 +9.2...

1 points Two charges are placed on the x axis. One of the charges (q1 +9.2 μC) is at x1 = +3.3 ст and the other (92--19 pC) is at x2 +9.1 cm. (a) Find the net electric field (magnitude and direction) at x 0 cm. (Use the sign of your answer to indicate the direction along the x-axis.) /C (b) Find the net electric field (magnitude and direction) at x " +6.3 cm. (use the sign of your answer...
Consider charges placed along an x-axis. If a charge of +12.0 nC is placed at x...

Consider charges placed along an x-axis. If a charge of +12.0 nC is placed at x = 0.00 m and a charge of +34.0 nC is placed at x = 1.00 m, where would a third charge of -14.0 nC be in electrostatic equilibrium? Please show ALL work! This gets confusing fast! Thank you!

Two charges are placed on the x axis. One of the charges (1-+9.0 uC) is at...

Two charges are placed on the x axis. One of the charges (1-+9.0 uC) is at xi +3.2 cm and the other (02 -22 pC) is at x2 +8.3 cm. (a) Find the net electric field (magnitude and direction) at x - 0 cm. (Use the sign of your answer to indicate the direction along the x-a N/C (b) Find the net electric field (magnitude and direction) at xm +5.9 cm. (Use the sign of your answer to Indicate the...
