Add Answer to:

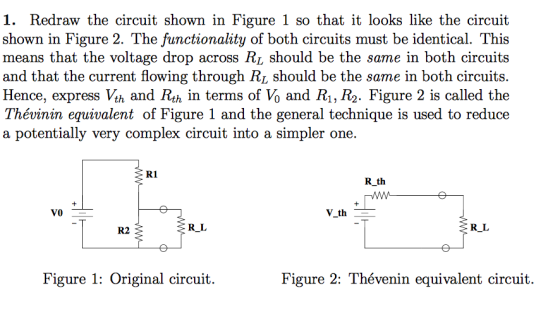

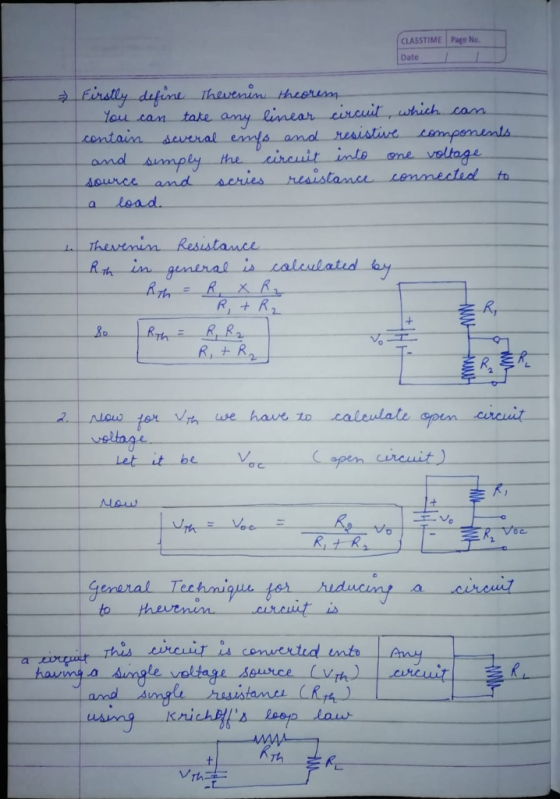

1. Redraw the circuit shown in Figure 1 so that it looks like the circuit shown...
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as...
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as seen by terminals a-b. 1 k w oa 35k 320k 25 mA 45 kn 50 V .b RTH (5 pts) VTH (15 pts) b) Determine the max power Pmax to a load R that will be connected to terminals a-b. (10 pts)
Answer all three parts of the question Q2. For the op-amp circuit as shown below, given...
Answer all three parts of the question
Q2. For the op-amp circuit as shown below, given that Rs 6.5 kQ, R 23 k, R2-74 k2, R3 10.5 ka, R - 2 Vcc R2 RL R3 (Q2a) Determine the voltage gain G-vo/vs 3.1365 Submit Answer Incorrect. Tries 1/3 Previous Tries (Q2b) If vs= 1.5 v, find Thevenin equivalent circuit looking at vo towards the circuit by determining vm and Rh VTh (V)i RTh (k2) Submit Answer Tries 0/3 (Q2c) Determine Ry...
Need to find Vth Rth and In, answers are on the right, thanks Topic 4: Thévenin...
Need to find Vth Rth and In, answers are on the right,
thanks
Topic 4: Thévenin and Norton Exercise 4.2: Thévenin and Norton Equivalent Circuits 1 Find the Thévenin and Norton equivalents (between terminals A and B) of the circuit shown below. Try command executed. The exact answers are displayed next to your entries. Your score: 23 (Fail). Your score is not recorded for assessment purposes. New Problem Help Try View Submission Topic Menu Equation Solver "O: 8 R3 R1...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone B...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Determine the Thevenin equivalent with respect to the terminals a,b for the circuit shown in (Figure...
Determine the Thevenin equivalent with respect to the terminals
a,b for the circuit shown in (Figure 1) . Suppose that
vs = 100 V and ? = 7500.
A) Find RTh.
B) Find vTh.
In the voltage-divider circuit shown in the figure, the no-load value of vo is 5 V...
In the voltage-divider circuit shown in the figure, the no-load value of vo is 5 V When the load resistance RI is attached across the terminals a and b, vo drops to 3 V.(Figure 1) PartA Find RL Express your answer with the appropriate units RI-7.28 Submit Previous Answers Request Answer Incorrect, Try Again: One attempt remaining Provide Feedback igure 1 of 1 40Ω 20 V R2 vo
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone B...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone B...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-22 Ω, R2-15 Ω, R3-28 Ω, R4-9 Ω, R5-29 Ω , R.-16 Ω, 1,-6 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Submit Answer Tries 0/4 (b) Determining the load current IL following...
In Figure 3 shown, V1 = 100 millivolts. Further, R1 = 1Kohm, R2 = 10 Kohm,...
In Figure 3 shown, V1 = 100 millivolts. Further, R1 = 1Kohm, R2
= 10 Kohm, R3 = 5 Kohm, R4= 5 Kohm, R5 = 10 Kohm and RL =
1Kohm.
(i) Determine the amplified output voltage V2 of the op-amp (of
open-loop gain A) in circuit shown in Figure 3.
(ii) Suppose this amplified voltage V2 becomes the source
voltage to a passive circuit as illustrated in Figure.3. Find
Thevenin’s equivalent circuit looking at the terminal XY. Hence,
determine...
Consider the circuit shown in Figure 1. Draw the equivalent single stage standalone circuit for t...
Consider the circuit shown in Figure 1. Draw the equivalent single stage standalone circuit for the first two transistors (Q1 and Q2). Derive the expression for the time constants for these two circuits (Note. Do NOT plug in the formulas for Ru and Rrt). RS CA ca 04 M194 02 01 ct c) RL RS Figure 1
Consider the circuit shown in Figure 1. Draw the equivalent single stage standalone circuit for the first two transistors (Q1 and Q2). Derive...
(2) a) Determine the Thévenin equivalent circuit (Rth and Vtw) of the circuit shown below as seen by terminals a-b. 1 k w oa 35k 320k 25 mA 45 kn 50 V .b RTH (5 pts) VTH (15 pts) b) Determine the max power Pmax to a load R that will be connected to terminals a-b. (10 pts)
Answer all three parts of the question
Q2. For the op-amp circuit as shown below, given that Rs 6.5 kQ, R 23 k, R2-74 k2, R3 10.5 ka, R - 2 Vcc R2 RL R3 (Q2a) Determine the voltage gain G-vo/vs 3.1365 Submit Answer Incorrect. Tries 1/3 Previous Tries (Q2b) If vs= 1.5 v, find Thevenin equivalent circuit looking at vo towards the circuit by determining vm and Rh VTh (V)i RTh (k2) Submit Answer Tries 0/3 (Q2c) Determine Ry...
Need to find Vth Rth and In, answers are on the right,
thanks
Topic 4: Thévenin and Norton Exercise 4.2: Thévenin and Norton Equivalent Circuits 1 Find the Thévenin and Norton equivalents (between terminals A and B) of the circuit shown below. Try command executed. The exact answers are displayed next to your entries. Your score: 23 (Fail). Your score is not recorded for assessment purposes. New Problem Help Try View Submission Topic Menu Equation Solver "O: 8 R3 R1...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Determine the Thevenin equivalent with respect to the terminals
a,b for the circuit shown in (Figure 1) . Suppose that
vs = 100 V and ? = 7500.
A) Find RTh.
B) Find vTh.
In the voltage-divider circuit shown in the figure, the no-load value of vo is 5 V When the load resistance RI is attached across the terminals a and b, vo drops to 3 V.(Figure 1) PartA Find RL Express your answer with the appropriate units RI-7.28 Submit Previous Answers Request Answer Incorrect, Try Again: One attempt remaining Provide Feedback igure 1 of 1 40Ω 20 V R2 vo
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part A. Wheatstone Bridge Circuit with a Voltage Source Vs R5 R1 R2 Vs RL R3 R4 For the circuit as shown below, given that R1= 9 Ω, R2= 17 Ω, R3= 9 Ω' R,-18 Ω, R5= 19 Ω , RL= 2 Ω ,V,-74 V I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage Vi-Vab for the Wheatstone bridge circuit with LTspice Submit Answer Tries 0/3 (b) Determining...
Mini-Prj 2. Extraction of Thevenin and Norton Equivalent Circuits by LTspice Part B. Wheatstone Bridge Circuit with a Current Source Is R5 R1 R2 Is RL R3 R4 For the circuit as shown below, given that R1-22 Ω, R2-15 Ω, R3-28 Ω, R4-9 Ω, R5-29 Ω , R.-16 Ω, 1,-6 A. I. Wheatstone Bridge Circuit Analysis (a) Determining the load voltage VL-Vab for the Wheatstone bridge circuit with LTspice. Submit Answer Tries 0/4 (b) Determining the load current IL following...
In Figure 3 shown, V1 = 100 millivolts. Further, R1 = 1Kohm, R2
= 10 Kohm, R3 = 5 Kohm, R4= 5 Kohm, R5 = 10 Kohm and RL =
1Kohm.
(i) Determine the amplified output voltage V2 of the op-amp (of
open-loop gain A) in circuit shown in Figure 3.
(ii) Suppose this amplified voltage V2 becomes the source
voltage to a passive circuit as illustrated in Figure.3. Find
Thevenin’s equivalent circuit looking at the terminal XY. Hence,
determine...
Consider the circuit shown in Figure 1. Draw the equivalent single stage standalone circuit for the first two transistors (Q1 and Q2). Derive the expression for the time constants for these two circuits (Note. Do NOT plug in the formulas for Ru and Rrt). RS CA ca 04 M194 02 01 ct c) RL RS Figure 1
Consider the circuit shown in Figure 1. Draw the equivalent single stage standalone circuit for the first two transistors (Q1 and Q2). Derive...
