Calculate the magnetic field at the point O for the wire segment (A’ACC’) shown. A’A and...

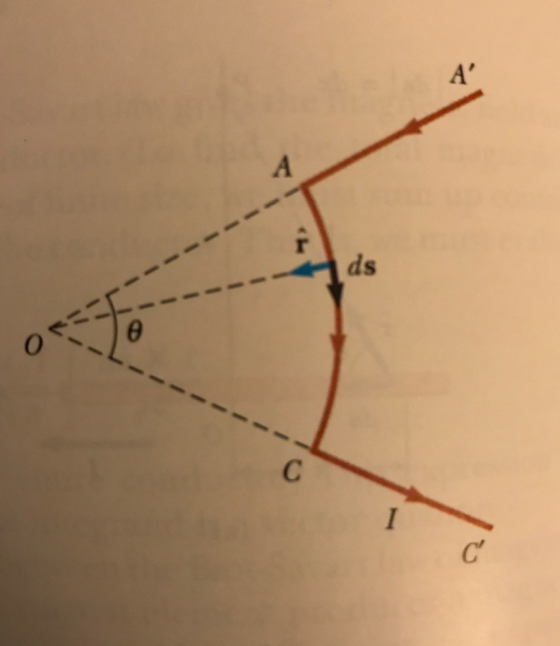

Calculate the magnetic field at the point O for the wire segment (A’ACC’) shown. A’A and CC’ are straight portions, while AC is a circular arc of radius R that subtends an angle theta.
Please be as detailed
as possible when explaining each step.
Homework Answers
Add Answer to:
Calculate the magnetic field at the point O for the wire segment
(A’ACC’) shown. A’A and...
Renk Renkler Paint 30 de durende Pano Resim Aradar 3) Calculate the magnetic field at point...
Renk Renkler Paint 30 de durende Pano Resim Aradar 3) Calculate the magnetic field at point for the current-carrying wire segment shown in figure.The wire consists of two straight portions and a circular arc of radius a, which subtends an angle O. The length of the curved segment AC is s. 19 1920 1000px
A long wire is bent to form a 90 degree angle using a circular arc with...
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the point P, which is the center of the arc segment of the wire. If 0 = 20.0°, the radius of the arc is 0.700 m, and the current is 2.00 A, what are the magnitude (in nT) and direction of the field produced at P? P i magnitude 285.7 Apply the Biot-Savart law. What will be the contributions of the segments of wire along...
A current path shaped as shown in Figure produces a magnetic field at P, the center...
A current path shaped as shown in Figure produces a magnetic field at P, the center of the arc. If the arc subtends an angle of 27 degree and the radius of the arc is 0.3 m, what is the magnetic field vector (nt) if the current is 6 A? Provide your answer with one decimal place. x.y, and a directions are shown in the figure. Take Ho 41 x 10-7 TM/A Р
A current of - 3 A runs through a wire path as shown. The radius of...
A current of - 3 A runs through a wire path as shown. The radius of the circular arc is r-4.0 cm and the angle of the arc is 600. Determine the magnitude of the magnetic field at P. 0 2.0x1067 O 4.5 x 104T O 7.9 x 10-61 8.9 x 10-6T O 9.9 x 10-61
Ý a -a A very long wire is bent so that it has two straight segments...
Ý a -a A very long wire is bent so that it has two straight segments connected to a semi-circular arc. Treat the straight segments as semi-infinite. The circular part has a radius a. In this BO) = ? problem, you will calculate the magnetic field at the centre 1 of curvature of the semi-circle, which is at the origin of the coordinates shown in the diagram. a. [2 points] What is i', a generic point on the wire, for...
VERY IMPORTANT A current path shaped as shown in Figure produces a magnetic field at the...
VERY IMPORTANT
A current path shaped as shown in Figure produces a magnetic field at the center of the arc. If the arc subtends an angle of 0-27 degree and the radius of the arc is 0.2 m, what is the magnetic field vector (nt) if the current is 6 A7 Provide your answer with one decimal place. xy, and z directions are shown in the figure. Take Po - 410-Tm/A De Р
The segment of wire in Figure P30.7 carries a current of I = 4.90 A, where...
The segment of wire in Figure P30.7 carries a current of I = 4.90 A, where the radius of the circular arc is R = 2.90 cm. Determine the magnitude and direction of the magnetic field at the origin. UT ---Direction--- Figure P30.7
A current path shaped as shown in Figure produces a magnetic field at P, the center...
A current path shaped as shown in Figure produces a magnetic field at P, the center of the arc. If the arc subtends an angle of 9 - 11 degree and the radius of the arc is 0.5 m, what is the magnetic field vector (n) if the current is 4 A? Provide your answer with one decimal place. x.y, and z directions are shown in the figure. Take po = 411 x 10-7Tm/A х Z Р
A charged particle is outside of a fixed magnetic field. It is moving in a straight...
A charged particle is outside of a fixed magnetic field. It is moving in a straight line, accelerating from rest through a potential difference V. When it enters the magnetic field, the particle's path is oriented perpendicular to the magnetic field. The magnetic field deflects the particle into a circular arc of radius R. If the accelerating potential is doubled to 2V, what will be the radius of the circular arc? Express your answer in terms of multiples of R....
Renk Renkler Paint 30 de durende Pano Resim Aradar 3) Calculate the magnetic field at point for the current-carrying wire segment shown in figure.The wire consists of two straight portions and a circular arc of radius a, which subtends an angle O. The length of the curved segment AC is s. 19 1920 1000px
A long wire is bent to form a 90 degree angle using a circular
arc with a radius r=2cm. The wire carries a current I=0.5A as
shown. Point P is located in the plane of the wire at the center of
the circular arc.
2. A long wire is bent to form a 90° angle using a circular arc with a radius R 2 cm. The wire carries a current I = 0.5 A as shown. Point P is located...
Consider the current-carrying wire shown in the figure. The current creates a magnetic field at the point P, which is the center of the arc segment of the wire. If 0 = 20.0°, the radius of the arc is 0.700 m, and the current is 2.00 A, what are the magnitude (in nT) and direction of the field produced at P? P i magnitude 285.7 Apply the Biot-Savart law. What will be the contributions of the segments of wire along...
A current path shaped as shown in Figure produces a magnetic field at P, the center of the arc. If the arc subtends an angle of 27 degree and the radius of the arc is 0.3 m, what is the magnetic field vector (nt) if the current is 6 A? Provide your answer with one decimal place. x.y, and a directions are shown in the figure. Take Ho 41 x 10-7 TM/A Р
A current of - 3 A runs through a wire path as shown. The radius of the circular arc is r-4.0 cm and the angle of the arc is 600. Determine the magnitude of the magnetic field at P. 0 2.0x1067 O 4.5 x 104T O 7.9 x 10-61 8.9 x 10-6T O 9.9 x 10-61
Ý a -a A very long wire is bent so that it has two straight segments connected to a semi-circular arc. Treat the straight segments as semi-infinite. The circular part has a radius a. In this BO) = ? problem, you will calculate the magnetic field at the centre 1 of curvature of the semi-circle, which is at the origin of the coordinates shown in the diagram. a. [2 points] What is i', a generic point on the wire, for...
VERY IMPORTANT
A current path shaped as shown in Figure produces a magnetic field at the center of the arc. If the arc subtends an angle of 0-27 degree and the radius of the arc is 0.2 m, what is the magnetic field vector (nt) if the current is 6 A7 Provide your answer with one decimal place. xy, and z directions are shown in the figure. Take Po - 410-Tm/A De Р
The segment of wire in Figure P30.7 carries a current of I = 4.90 A, where the radius of the circular arc is R = 2.90 cm. Determine the magnitude and direction of the magnetic field at the origin. UT ---Direction--- Figure P30.7
A current path shaped as shown in Figure produces a magnetic field at P, the center of the arc. If the arc subtends an angle of 9 - 11 degree and the radius of the arc is 0.5 m, what is the magnetic field vector (n) if the current is 4 A? Provide your answer with one decimal place. x.y, and z directions are shown in the figure. Take po = 411 x 10-7Tm/A х Z Р
A charged particle is outside of a fixed magnetic field. It is moving in a straight line, accelerating from rest through a potential difference V. When it enters the magnetic field, the particle's path is oriented perpendicular to the magnetic field. The magnetic field deflects the particle into a circular arc of radius R. If the accelerating potential is doubled to 2V, what will be the radius of the circular arc? Express your answer in terms of multiples of R....
