Question

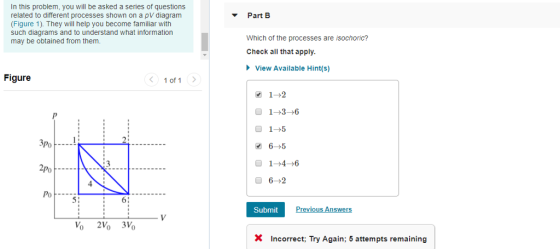

In this problem, you will be asked a series of questions related to different processes shown on a pV diagram (Figure 1). They will help you become familiar with such diagrams and to understand what information may be obtained from them Part B Which of the processes are isochoric? Check all that apply View Available Hint(s) Figure 1 of 1 1--3-6 0 1-5 PoF-- 1-4-6 2Po PoF---- 51 Submit X Incorrect; Try Again; 5 attempts remaining

0 0
Add a comment Improve this question Transcribed image text
Answer #1

In case of an isochoric process, the volume (V) remains constant.

From the figure given, it can be observed that for the process 1 to 5, volume the gas is constant and is equal to V0 .

Also, for the process 6 to 2 ,volume the gas is constant and is equal to 3V0 .

Process 1 to 5 and Process 6 to 2 are isochoric process.

Option (3) and (5) are the correct choices.
