Homework Answers
Add Answer to:

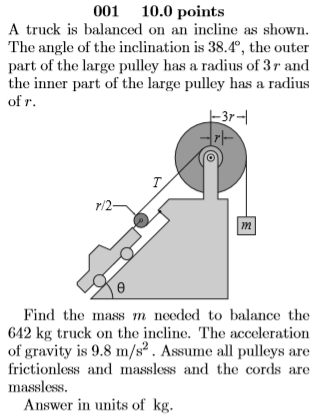

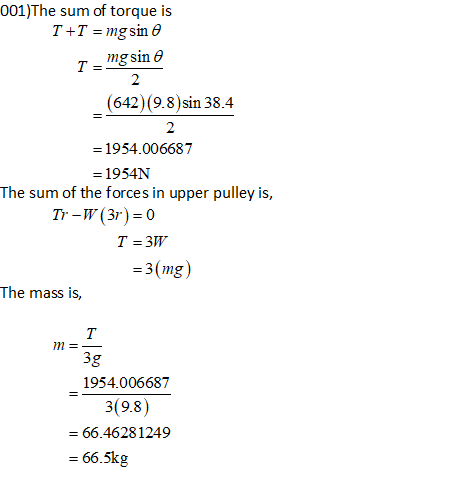

001 10.0 points A truck is balanced on an incline as shown. The angle of the...
023 (part 1 of 3) 10.0 points A block is at rest on the incline shown...
023 (part 1 of 3) 10.0 points A block is at rest on the incline shown in the figure. The coefficients of static and ki- netic friction are μ8-0.55 and respectively. μk = 0.47 The acceleration of gravity is 9.8 m/s2. g kg 27° What is the frictional force acting on the 39 kg mass? Answer in units of N. 024 (part 2 of 3) 10.0 points What is the largest angle which the incline can have so that the...
027 (part I of 3) 10.0 points A block is at rest on the incline shown...
027 (part I of 3) 10.0 points A block is at rest on the incline shown in the figure. The coefficients of static and ki- netic friction are ?,-0.62 and ?? 0.53, respectively. The acceleration of gravity is 9.8 m/s*. 29° What is the frictional force acting on the 41 kg mass? Answer in units of N 028 (part 2 of 3) 10.0 points What is the largest angle which the incline can have so that the mass does not...
A box (mass 25.8 kg) sits on a rough incline that makes an angle α =...
A box (mass 25.8 kg) sits on a rough incline that makes an angle α = 28.1o with the horizontal. A massless string is tied to the box, runs parallel to the incline, passes over a massless, frictionless pulley, and is tied to mass M hanging on the other end. Assume μs = 0.455 is the coefficient of static friction between the box and the surface of the plane. Find the maximum value of M, in kg, for which this...
004 10.0 points A 2.9 kg block supported by a string rests on a frictionless incline....
004 10.0 points A 2.9 kg block supported by a string rests on a frictionless incline. The length of the string is 0.7 m and its mass of 4.3 g < 2.9 kg. . 0 -0.7 m u=0 56° 2.9 kg Find the time it takes a transverse wave to travel from one end of the string to the other. The acceleration of gravity is 9.8 m/s. Answer in units of ms.
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless pulley with a radius of 9.5 cm. It has a(n) 18 kg mass on the left and a(n) 2.3 kg mass on the right, both hanging freely. Initially their center of masses are a vertical distance 4 m apart. The acceleration of gravity is 9.8 m/s2 9.5 cm 18 kg 4 m 2.3 kg At what rate are the two masses accelerat- ing when...
2. A uniform, solid cylinder with mass M and radius 2R is on an incline plane with angle of inclination of 6. A str...
2. A uniform, solid cylinder with mass M and radius 2R is on an incline plane with angle of inclination of 6. A string is attached by a yoke to a frictionless axle through the center of the cylinder so that the cylinder can rotate about the axle. The string runs over a disk-shaped pulley with mass M and radius R that is mounted on a frictionless axle through its center. A block of mass M is suspended from the...
001 (part 1 of 2) 10.0 points On planet X, an object weighs 15.8 N. On...
001 (part 1 of 2) 10.0 points On planet X, an object weighs 15.8 N. On planet B where the magnitude of the free-fall acceleration is 1.14 g (where g 9.8 m/s is the gravitational acceleration on Earth), the object weighs 30.9 N The acceleration of gravity is 9.8 m/s2 What is the mass of the object be on Earth? Answer in units of kg. 002 (part 2 of 2) 10.0 points What is the free-fall acceleration on planet X?...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless pulley with a radius of 9.5 cm. It has a(n) 18 kg mass on the left and a(n) 2.3 kg mass on the right, both hanging freely Initially their center of masses are a vertical distance 4 m apart. The acceleration of gravity is 9.8 m/s2 9.5 cm 18 kg 4 m 2.3 kg At what rate are the two masses accelerat- ing when...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless pulley with a radius of 16 cm. It has a(n) 13 kg mass on the left and a(n) 4 kg mass on the right, both hanging freely. Initially their center of masses are a vertieal distance 2.0 m apart. 5 The acceleration of gravity is 9.8 m/s. 16 cm 13 kg 2.6 m 4 kg At what rate are the two masses accelerat- ing...
4, A uniform solid sphere of mass M 10.0 kg and radius R 0.50 m rotates...
4, A uniform solid sphere of mass M 10.0 kg and radius R 0.50 m rotates about a vertical axis on frictionless bearings. A massless cord passes around the equator of the sphere, over a pulley of rotational inertia 1-1.60 kg. m2, and radius r = 0.40 m, and is attached to a block of mass m 8.00 kg which is released from rest. The cord does not slip on the sphere or pulley, and the pulley bearings are frictionless....
023 (part 1 of 3) 10.0 points A block is at rest on the incline shown in the figure. The coefficients of static and ki- netic friction are μ8-0.55 and respectively. μk = 0.47 The acceleration of gravity is 9.8 m/s2. g kg 27° What is the frictional force acting on the 39 kg mass? Answer in units of N. 024 (part 2 of 3) 10.0 points What is the largest angle which the incline can have so that the...
027 (part I of 3) 10.0 points A block is at rest on the incline shown in the figure. The coefficients of static and ki- netic friction are ?,-0.62 and ?? 0.53, respectively. The acceleration of gravity is 9.8 m/s*. 29° What is the frictional force acting on the 41 kg mass? Answer in units of N 028 (part 2 of 3) 10.0 points What is the largest angle which the incline can have so that the mass does not...
004 10.0 points A 2.9 kg block supported by a string rests on a frictionless incline. The length of the string is 0.7 m and its mass of 4.3 g < 2.9 kg. . 0 -0.7 m u=0 56° 2.9 kg Find the time it takes a transverse wave to travel from one end of the string to the other. The acceleration of gravity is 9.8 m/s. Answer in units of ms.
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless pulley with a radius of 9.5 cm. It has a(n) 18 kg mass on the left and a(n) 2.3 kg mass on the right, both hanging freely. Initially their center of masses are a vertical distance 4 m apart. The acceleration of gravity is 9.8 m/s2 9.5 cm 18 kg 4 m 2.3 kg At what rate are the two masses accelerat- ing when...
2. A uniform, solid cylinder with mass M and radius 2R is on an incline plane with angle of inclination of 6. A string is attached by a yoke to a frictionless axle through the center of the cylinder so that the cylinder can rotate about the axle. The string runs over a disk-shaped pulley with mass M and radius R that is mounted on a frictionless axle through its center. A block of mass M is suspended from the...
001 (part 1 of 2) 10.0 points On planet X, an object weighs 15.8 N. On planet B where the magnitude of the free-fall acceleration is 1.14 g (where g 9.8 m/s is the gravitational acceleration on Earth), the object weighs 30.9 N The acceleration of gravity is 9.8 m/s2 What is the mass of the object be on Earth? Answer in units of kg. 002 (part 2 of 2) 10.0 points What is the free-fall acceleration on planet X?...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless pulley with a radius of 9.5 cm. It has a(n) 18 kg mass on the left and a(n) 2.3 kg mass on the right, both hanging freely Initially their center of masses are a vertical distance 4 m apart. The acceleration of gravity is 9.8 m/s2 9.5 cm 18 kg 4 m 2.3 kg At what rate are the two masses accelerat- ing when...
016 (part 1 of 2) 10.0 points A light, inextensible cord passes over a light, frictionless pulley with a radius of 16 cm. It has a(n) 13 kg mass on the left and a(n) 4 kg mass on the right, both hanging freely. Initially their center of masses are a vertieal distance 2.0 m apart. 5 The acceleration of gravity is 9.8 m/s. 16 cm 13 kg 2.6 m 4 kg At what rate are the two masses accelerat- ing...
4, A uniform solid sphere of mass M 10.0 kg and radius R 0.50 m rotates about a vertical axis on frictionless bearings. A massless cord passes around the equator of the sphere, over a pulley of rotational inertia 1-1.60 kg. m2, and radius r = 0.40 m, and is attached to a block of mass m 8.00 kg which is released from rest. The cord does not slip on the sphere or pulley, and the pulley bearings are frictionless....
