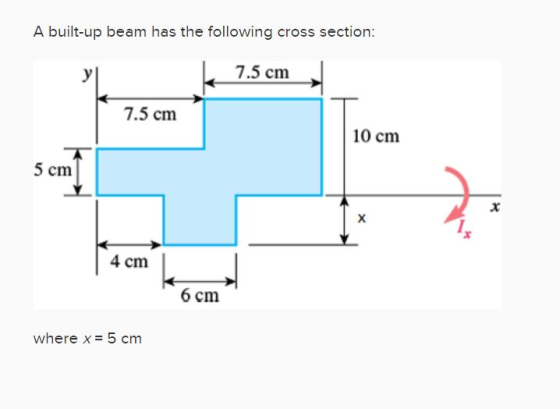

A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm 4 cm 6 cm where x = 5 cm

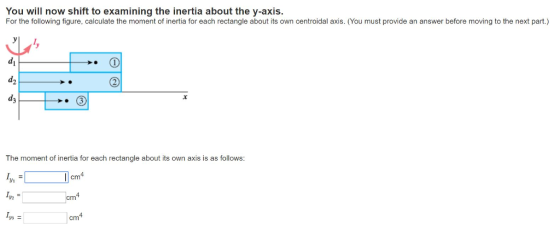

You will now shift to examining the inertia about the y-axis. For the following figure, calculate the moment of inertia for each rectangle about its own centroidal axis. (You must provide an answer before moving to the next part.) di d2 d3 The moment of inertia for each rectangle about its own axis is as follows: cm Ly2 cm

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

Please Upvote if you like the answer.

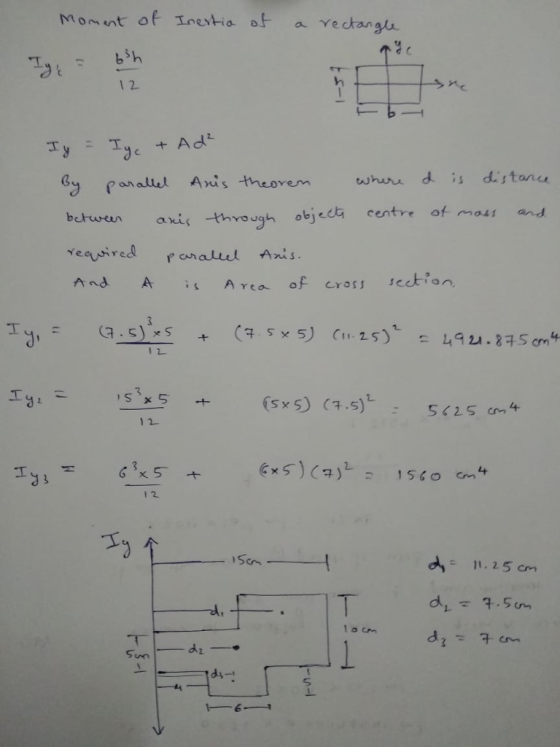

が 12 axis thvough abje centre of mous and behuwr 1125 J 12. 个 11.25 cm d, 1 a cm -咿 Sin 5

0 0
Add a comment
Know the answer?
Add Answer to:
A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm...

    A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm 4 cm 6 cm where x = 5 cm You will now shift to examining the inertia about the y-axis. For the following figure, calculate the moment of inertia for each rectangle about its own centroidal axis. (You must provide an answer before moving to the next part.) di d2 d3 The moment of inertia for each rectangle about its own axis is as...

  • A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm...

    A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm 4 cm 6 cm where x= 5 cm For the following figure, calculate the Ad2 for each rectangle by Parallel Axis Theorem. (You must provide an answer before moving to the next part.) d2 d3 The Ad2 for each rectangle is as follows: Ad for piece 1- Ad2 for piece 2- Ad for piece 3 4 cm 4 4 cm

  • A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm...

    A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm 3 4 cm 6 cm where x = 5 cm Find the area moment of inertia of piece 3 about the x-axis (Ixa) in cmt for the following figure by the use of Parallel Axis Theorem: d. 6 cm where x = 5 cm (You must provide an answer before moving to the next part.) The area moment of inertia of piece 3 about...

  • A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm...

    A built-up beam has the following cross section: 7.5 cm 7.5 cm 10 cm 5 cm 4 cm 6 cm where x = 5 cm We were unable to transcribe this image

  • Moments of Inertia for Composite Areas Part A Moment of Inertia of a Composite Beam about...

    Moments of Inertia for Composite Areas Part A Moment of Inertia of a Composite Beam about the x axis For the built-up beam shown below, calculate the moment of inertia about the r axis. (Figure 7) The dimensions are d1 = 6.0 in, d2 = 14.5 in, ds = 7.5 in, and t = 0.60 in. Express your answer to three significant figures and include the appropriate units. Learning Goal To section a composite shape into simple shapes so the...

  • 2. The A-36 steel beam cross-section (E - 29.0 Msi, oy 36 ksi) with dimension:s shown...

    2. The A-36 steel beam cross-section (E - 29.0 Msi, oy 36 ksi) with dimension:s shown is subjected to bending. Find: a. y, the distance to the centroidal axis b. lx, the moment of inertia about the centroidal x-axis c. Mv, the maximum elastic moment. 2 4 6 6' 01 24

  • please show all your work thank you! Problem 2 (25%) 14 in A beam cross-section is...

    please show all your work thank you! Problem 2 (25%) 14 in A beam cross-section is shown in the provided figure. 2 in (A)(10%) Determine the distance (y) from the bottom the section to the centroid (C). 16 in 8 in Problem 2 (25% - 14 in- A beam cross-section is shown in the provided figure. 2 in (B) (15%) Determine the moment of inertia of the shape about the X-axis (i.e. the horizontal centroidal axis) 16 in - 2...

  • The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m...

    The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'-axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m "0.2 m 0.2 m 0.2 m 0.2 m

  • The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m...

    The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m 0.2 m 0.2 m 0.2 m 0.2 m

  • Determine the moment of inertia about the cross sectional area of the T-beam with respect to the x' axis passing through the centroid of the cross section.

    a) Determine the moment of inertia about the cross sectional area of the T-beam with respect to the x' axis passing through the centroid of the cross section. b) Determine the moment of Inertia about the cross sectional area of the T-beam with respect to the y' axis passing through the centroid of the cross section.
