Please Help! Can not find the correct answers.
Now the friends use data obtained in the simulation to identify materials A-E. They calculate and record the value of α for each material and use the table below to identify it. (Hint: The simulation rounds some of the data to two-digit accuracy, so calculate all coefficients of linear thermal expansion using ΔT = 50°.)
| Material | Steel | Copper | Brass and Bronze | Aluminum | Lead |
|---|---|---|---|---|---|
| α ((°C)−1) | 11 ✕ 10−6 | 17 ✕ 10−6 | 19 ✕ 10−6 | 24 ✕ 10−6 | 29 ✕ 10−6 |
For each material, enter the value of the coefficient of linear
thermal expansion, along with the name of the material.
| α ((°C)−1) | Name of material | |
|---|---|---|
| Material A | ||
| Material B | ||
| Material C | ||
| Material D | ||
| Material E |

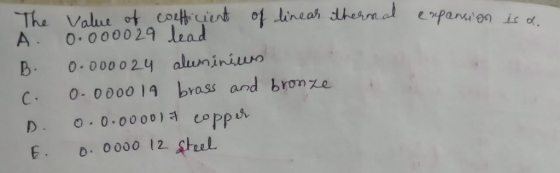

Homework Answers
Add Answer to:
Please Help! Can not find the correct answers.
Now the friends use data obtained in the...
I thought that the coefficient of linear thermal expansion would be what is given already...pleas...
I thought that the coefficient of linear thermal expansion would
be what is given already...please help.
