Homework Answers
Answer #1

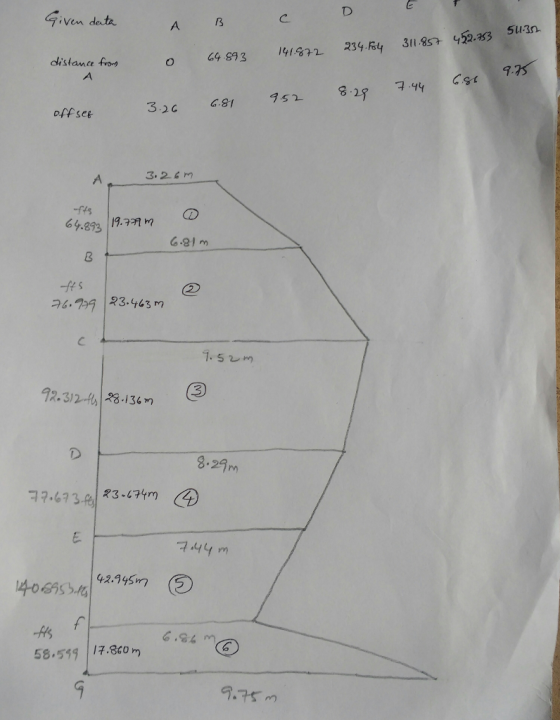

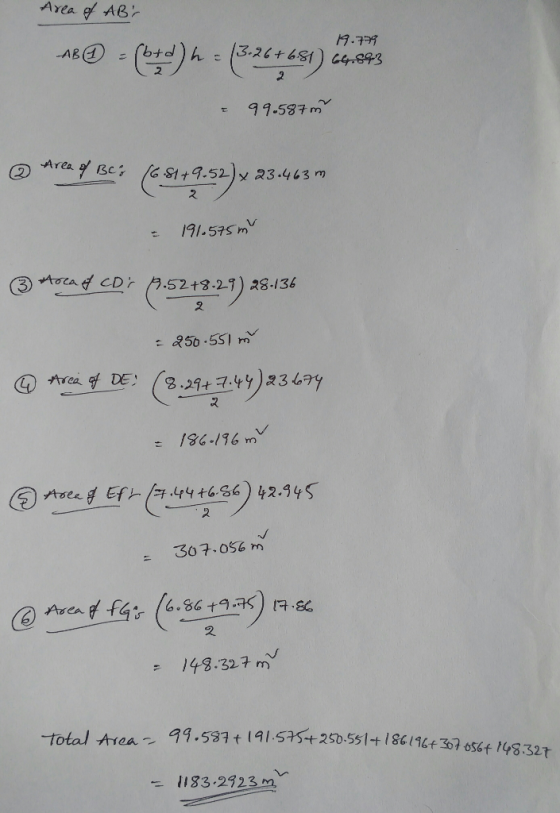

Area of AB: AB(1) = (b + d/2)h = (3.26 + 6.81/2) 19.779 = 99.587 m^2 (2) Area of BC: (6.81 + 9.52/2) times 23.463 m = 191.575 m^2 (3) Area of CD: (9.52 + 8.29/2) 28.136 = 250.551 m^2 (4) Area of DE: (8.29 + 7.44/2) 23.674 = 186.196 m^2 Total Area = 99.587 + 191.575 + 250.551 + 186196 + 307.056 + 148.327 = 1183.2923 m^2
Know the answer?
Add Answer to:
12.6 plz

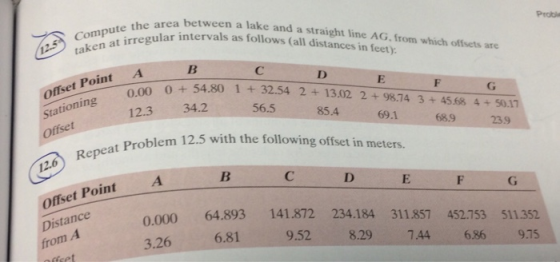

ea between a lake and a straight line ular intervals as follows (all distances...
Not the answer you're looking for?
Ask your own homework help question.
Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
A)Compute the area between a lake and a straight line AG, from which offsets are taken at irregul...
A)Compute the area between a lake and a straight line AG, from
which offsets are taken at irregular intervals as shown in the
table above (all distances in feet).
Circle and express your answer to four significant figures
and include appropriate units.
PARTB
A) Consider a polygon traverse.
The azimuth of side AB is fixed at 35∘09′32′′. A=57∘00′50′′,
B=88∘24′45′′, C=126∘36′58′′, D=46∘03′25′′,E=221∘53′52′′. (Note:
Line BC bears NW.)
The lengths of the sides (in meters) are as follows: AB=383.808,
BC=360.209, CD=342.204, DE=336.210,and...
A)Compute the area between a lake and a straight line AG, from
which offsets are taken at irregular intervals as shown in the
table above (all distances in feet).
Circle and express your answer to four significant figures
and include appropriate units.
PARTB
A) Consider a polygon traverse.
The azimuth of side AB is fixed at 35∘09′32′′. A=57∘00′50′′,
B=88∘24′45′′, C=126∘36′58′′, D=46∘03′25′′,E=221∘53′52′′. (Note:
Line BC bears NW.)
The lengths of the sides (in meters) are as follows: AB=383.808,
BC=360.209, CD=342.204, DE=336.210,and...
