Homework Answers
Dear student,
Find this solution, and RATE IT ,If you find it is helpful .your rating is very important to me.If any incorrectness ,kindly let me know I will rectify them soon.

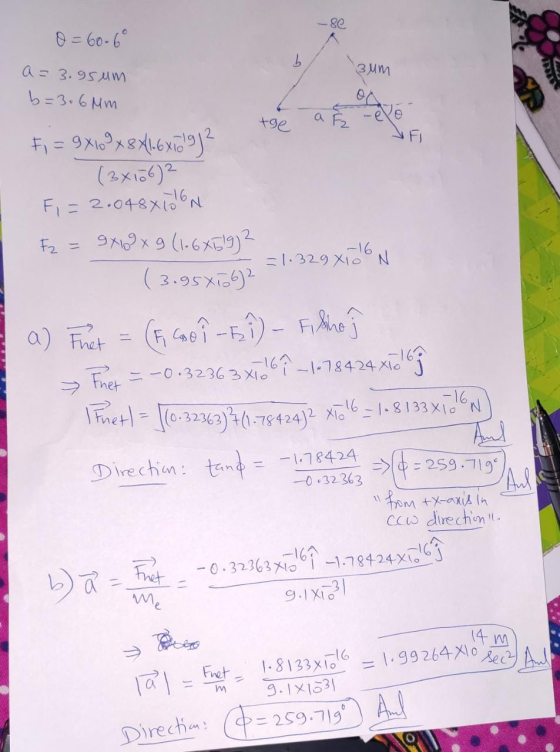

Thanks for asking ..![0 = 60-6° a = 3.95um 3Mm b=3•6 Mm a F2 +9e Fi = 9X16?x8x{16XidJ² (2x156)2 Fi=2.048X10N Fi %3D 9x6? x g (1-6XE!9]² -16 =1.329](http://img.homeworklib.com/questions/29b32510-721b-11ea-9db2-592ba129f97e.png?x-oss-process=image/resize,w_560)
Add Answer to:
An electron is near a positive ion of charge +9e and a negative ion of charge-8e...
An electron is near a positive ion of charge +9e and a negative ion of charge-8e...

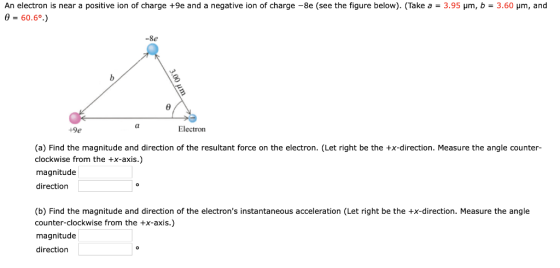

An electron is near a positive ion of charge +9e and a negative ion of charge-8e (see the figure below). (Take a = 3.95 μm, b-3.60 μm , and θ-60.6".) -8e +9e Electron (a) Find the magnitude and direction of the resultant force on the electron. (Let right be the +x-direction. Measure the angle counter-clockwise from the +x-axis.) magnitude 1.78e-16N direction 90 (b) Find the magnitude and direction of the electron's instantaneous acceleration (Let right be the +x-direction. Measure the...
An electron is near a positive ion of charge +9e and a negative ion of charge...
An electron is near a positive ion of charge +9e and a negative
ion of charge −8e (see the figure below). (Take a = 4.40
µm, b = 4.12 µm, and θ = 64.4°.)
(a) Find the magnitude and direction of the resultant force on
the electron. (Let right be the +x-direction. Measure the
angle counter-clockwise from the +x-axis.)
(b) Find the magnitude and direction of the electron's
instantaneous acceleration (Let right be the +x-direction.
Measure the angle counter-clockwise from...
An electron is near a positive ion of charge +9e and a negative ion of charge...
An electron is near a positive ion of charge +9e and a negative
ion of charge −8e (see the figure below). (Take a = 4.77
µm, b = 4.36 µm, and θ = 63.5°.)
(a) Find the magnitude and direction of the resultant force on
the electron. (Let right be the +x-direction. Measure the
angle counter-clockwise from the +x-axis.)
(b) Find the magnitude and direction of the electron's
instantaneous acceleration (Let right be the +x-direction.
Measure the angle counter-clockwise from...
An electron is near a positive ion of charge +9e and a negative ion of charge...
An electron is near a positive
ion of charge +9e and a negative ion of charge −8e (see the figure
below). (Take a = 4.26 µm, b = 3.60 µm, and θ = 56.3°.)
An electron is near a positive ion of charge +9e and a negative ion of charge-Be (see the figure below). (Take a-4.26 um, b-3.60 μη, and f-56.39) -8e (l +9e Electron tos Ein the magntune and directon of the rs aredion. Mesure the ange magnitude 1.85E-16...
1 17 P.009 Aneectron is near a positive ion of charge +9e and a negative ion...
1 17 P.009 Aneectron is near a positive ion of charge +9e and a negative ion of charge-8e (see the figure below). (Take a-446m, b = 3.64 μm, and f-54.20.) -Re +9e Electron (a) Find the magnitude and direction of the resultant force on the electron, (Let right be the +x direction. Measure the angle counter-clockwise from the +x-axis.) magnitude direction and direction of the electron's instantaneous acceleration (Let right be the +-direction. Measure the angle counter-clockwise from the +x-axis.)...
An electron is near a positive ion of charge +9e and a negative ion of charge...
An
electron is near a positive ion of charge +9e and a negative ion of
charge -8e (see figure below). (Take a = 4.72 um, b = 4.04 I’m, and
0 =58.1 degrees)
Find the ratio of the magnitudes of the electrical and the gravitational forces acting 2 between a proton and an electron separated by an arbitrary distance d 2. 117 P009 -se Electron (a) Find the tude and direction of the resultant force on the electron. (Let night...
um, and -54.6. of charge +9e and a negative lon of charge -Be (see the figure...
um, and -54.6. of charge +9e and a negative lon of charge -Be (see the figure below). (Take a 5.30 um, b-4.32 -Se i9e Electson x-direction. Measure the angle counter-clockwise from the +x-axis.) (o) Find the magnitude and direction of the resultant force on the electron. (Let right be the + magnitude direction tx-direction. Measure the angle counter-clockwise from the (b) Find the magnitude and direction of the electron's instantaneous acceleration (Let right be the +x-axis.) magntude direction
An electron is near a positive ion of charge +9e and a negative ion of charge...
An electron is near a positive ion of charge +9e and a negative ion of charge -8e (see the figure below). (Take a = 4.68 pm, b = 4.40 pm, and 6 = 65.8 degree .)
A 2.02 x 10-9 C charge has coordinates x-0, y-_2.00; a 2.91 10-9 C charge has...
A 2.02 x 10-9 C charge has coordinates x-0, y-_2.00; a 2.91 10-9 C charge has coordinates x # 3.00, y-0; and a -4.60 x 10-9 C charge has coordinates x = 3.00, y 4.00, where all distances are in cm. Determine magnitude and direction for the electric field at the origin and the instantaneous acceleration of a proton placed at the origin. (a) Determine the magnitude and direction for the electric field at the origin (measure the angle counterclockwise...
An electron is near a positive ion of charge +9e and a negative ion of charge-8e (see the figure below). (Take a = 3.95 μm, b-3.60 μm , and θ-60.6".) -8e +9e Electron (a) Find the magnitude and direction of the resultant force on the electron. (Let right be the +x-direction. Measure the angle counter-clockwise from the +x-axis.) magnitude 1.78e-16N direction 90 (b) Find the magnitude and direction of the electron's instantaneous acceleration (Let right be the +x-direction. Measure the...
An electron is near a positive ion of charge +9e and a negative
ion of charge −8e (see the figure below). (Take a = 4.40
µm, b = 4.12 µm, and θ = 64.4°.)
(a) Find the magnitude and direction of the resultant force on
the electron. (Let right be the +x-direction. Measure the
angle counter-clockwise from the +x-axis.)
(b) Find the magnitude and direction of the electron's
instantaneous acceleration (Let right be the +x-direction.
Measure the angle counter-clockwise from...
An electron is near a positive ion of charge +9e and a negative
ion of charge −8e (see the figure below). (Take a = 4.77
µm, b = 4.36 µm, and θ = 63.5°.)
(a) Find the magnitude and direction of the resultant force on
the electron. (Let right be the +x-direction. Measure the
angle counter-clockwise from the +x-axis.)
(b) Find the magnitude and direction of the electron's
instantaneous acceleration (Let right be the +x-direction.
Measure the angle counter-clockwise from...
An electron is near a positive
ion of charge +9e and a negative ion of charge −8e (see the figure
below). (Take a = 4.26 µm, b = 3.60 µm, and θ = 56.3°.)
An electron is near a positive ion of charge +9e and a negative ion of charge-Be (see the figure below). (Take a-4.26 um, b-3.60 μη, and f-56.39) -8e (l +9e Electron tos Ein the magntune and directon of the rs aredion. Mesure the ange magnitude 1.85E-16...
1 17 P.009 Aneectron is near a positive ion of charge +9e and a negative ion of charge-8e (see the figure below). (Take a-446m, b = 3.64 μm, and f-54.20.) -Re +9e Electron (a) Find the magnitude and direction of the resultant force on the electron, (Let right be the +x direction. Measure the angle counter-clockwise from the +x-axis.) magnitude direction and direction of the electron's instantaneous acceleration (Let right be the +-direction. Measure the angle counter-clockwise from the +x-axis.)...
An
electron is near a positive ion of charge +9e and a negative ion of
charge -8e (see figure below). (Take a = 4.72 um, b = 4.04 I’m, and
0 =58.1 degrees)
Find the ratio of the magnitudes of the electrical and the gravitational forces acting 2 between a proton and an electron separated by an arbitrary distance d 2. 117 P009 -se Electron (a) Find the tude and direction of the resultant force on the electron. (Let night...
um, and -54.6. of charge +9e and a negative lon of charge -Be (see the figure below). (Take a 5.30 um, b-4.32 -Se i9e Electson x-direction. Measure the angle counter-clockwise from the +x-axis.) (o) Find the magnitude and direction of the resultant force on the electron. (Let right be the + magnitude direction tx-direction. Measure the angle counter-clockwise from the (b) Find the magnitude and direction of the electron's instantaneous acceleration (Let right be the +x-axis.) magntude direction
An electron is near a positive ion of charge +9e and a negative ion of charge -8e (see the figure below). (Take a = 4.68 pm, b = 4.40 pm, and 6 = 65.8 degree .)
A 2.02 x 10-9 C charge has coordinates x-0, y-_2.00; a 2.91 10-9 C charge has coordinates x # 3.00, y-0; and a -4.60 x 10-9 C charge has coordinates x = 3.00, y 4.00, where all distances are in cm. Determine magnitude and direction for the electric field at the origin and the instantaneous acceleration of a proton placed at the origin. (a) Determine the magnitude and direction for the electric field at the origin (measure the angle counterclockwise...
