Add Answer to:
b) Solve for a formula for the acceleration of the mass M c) If M-5kg and...
a. draw the free-body diagram for M1 (include axis) b. solve for a formula for the...

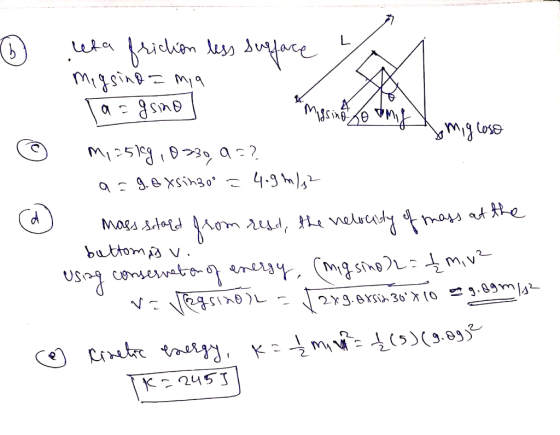

a. draw the free-body diagram for M1 (include axis)
b. solve for a formula for the acceleration of the mass
M1
c. if M1= 5kg and theta= 30 the acceleration of M1 is?
d. if the mass starts at the top and L= 10m what is the speed
as it reaches the bottom of the inclined plane?
e. what will its kinetic energy be?
2. (6pts) For the ideal inclined plane shown below (greased with good Spanish olive oil so...
2. (6pts) For the ideal inclined plane shown below (greased with good Spanish olive oil so...
2. (6pts) For the ideal inclined plane shown below (greased with good Spanish olive oil so it's frictionless) with mass M onit: a) Draw the free-body (force) diagram for M (include axis) b) Solve for a formula for the acceleration of the mass M. c) If M -5kg and 0-30 the acceleration of M is? d) If the mass starts at the top and L=10m, what is the speed as it reaches the bottom of the inclined plane? e) What...
1.) AT the top of a 30 m hill is a 5kg mass. It is loaded...
1.) AT the top of a 30 m hill is a 5kg mass. It is loaded into a spring cannon. The cannon's spring has a constant k=400 N/m and the spring is compressed 40cm. The mass is initially at rest. Therefore there is no friction. (A.) What was the stored energy in the spring before it was released? (B.) What was the gravitational potential energy of the mass with respect to the bottom of the hill? (C.) What was the...
Ghals of mess AM mass m are initially at rest and start eheir motion at 0. IT a). Draw free-body diagrams for the disk and for the mass m. C shew all tha tones L p b). Find angular acceleration...
Ghals of mess AM mass m are initially at rest and start eheir motion at 0. IT a). Draw free-body diagrams for the disk and for the mass m. C shew all tha tones L p b). Find angular acceleration α of the disk (formula, then calculation) c). If the system starts its motin at -, wtwibe the aneudar additional length of the string that have nwound in that timLIp an e). What will be the rotational kinetic energy of...
Two masses mA = 2 kg and mB = 1 kg are connected by a stnall pulley Mass maks on an inclined plane at angle e-π/4 radians, and mB is allowed to hang freely. (a) Suppose the string has length 10 m....
Two masses mA = 2 kg and mB = 1 kg are connected by a stnall pulley Mass maks on an inclined plane at angle e-π/4 radians, and mB is allowed to hang freely. (a) Suppose the string has length 10 m. Take a coordinate system in which the pulley is at the origin. What is the potential energy of the system as a function of the height of mass mg? (b) Find the acceleration of mass ma (either using...
Q10 A hollow sphere and a hoop of the same mass and radius are released at...
Q10 A hollow sphere and a hoop of the same mass and radius are released at the same time at the top of an inclined plane. If both are uniform, (1) Which one reaches the bottom of the incline first if there is no slipping? (2) A uniform hollow sphere of mass 120 kg and radius 1.7 m starts from rest and rolls without slipping dow an inclined plane of vertical height 5.3 m. What is the translational speed of...
A mass of 5kg is on top of a building of height 10m. Calculate its potential...
A mass of 5kg is on top of a building of height 10m. Calculate its potential energy. The mass then falls at a speed of 8 m/s in 4 sec, find its KE and momentum p. What is the Force and impulse the mass transfers to the ground?
Problem 1 (50 points 2 kg and mg 1 kg are connected by a small pulley. Mass ma is on an inclined plane at angle in which the pulley ls at the origin. What ls the Two masss m4 θ=r/4 radians, and m...
Problem 1 (50 points 2 kg and mg 1 kg are connected by a small pulley. Mass ma is on an inclined plane at angle in which the pulley ls at the origin. What ls the Two masss m4 θ=r/4 radians, and mg is allowed to hang freely (a) Suppose the string has length 10 m. Take a potential energy of the system as a function of the height of mass mg? (b) Find the of which way the masses...
A mass of 5kg starts from rest and pulls down vertically on a string wound around...
A mass of 5kg starts from rest and pulls down vertically on a string wound around a disk-shaped, massive pulley. The mass of the disk is 5kg and its radius is 2 m. What is the linear speed, in m/s, after the mass drops by 0.3 m? What's the concept here? Kinetic Energy of Rotation or are we supposed to use Torque? If someone can help me with the concept and give me steps on how to solve this, it...
An object with a mass of 10.0 kg is at rest at the top of a...
An object with a mass of 10.0 kg is at rest at the top of a
frictionless inclined plane 8 meters and an angle of inclination 30
degrees with the horizontal. The object is released from this
position and it stops at a distance d from the bottom of the
inclined plane along a horiztonal surface. The coefficient of
kinetic friction for the horizontal surface is .400.
A. what is the knetic energy of the object at the bottom of...
a. draw the free-body diagram for M1 (include axis)
b. solve for a formula for the acceleration of the mass
M1
c. if M1= 5kg and theta= 30 the acceleration of M1 is?
d. if the mass starts at the top and L= 10m what is the speed
as it reaches the bottom of the inclined plane?
e. what will its kinetic energy be?
2. (6pts) For the ideal inclined plane shown below (greased with good Spanish olive oil so...
2. (6pts) For the ideal inclined plane shown below (greased with good Spanish olive oil so it's frictionless) with mass M onit: a) Draw the free-body (force) diagram for M (include axis) b) Solve for a formula for the acceleration of the mass M. c) If M -5kg and 0-30 the acceleration of M is? d) If the mass starts at the top and L=10m, what is the speed as it reaches the bottom of the inclined plane? e) What...
Ghals of mess AM mass m are initially at rest and start eheir motion at 0. IT a). Draw free-body diagrams for the disk and for the mass m. C shew all tha tones L p b). Find angular acceleration α of the disk (formula, then calculation) c). If the system starts its motin at -, wtwibe the aneudar additional length of the string that have nwound in that timLIp an e). What will be the rotational kinetic energy of...
Two masses mA = 2 kg and mB = 1 kg are connected by a stnall pulley Mass maks on an inclined plane at angle e-π/4 radians, and mB is allowed to hang freely. (a) Suppose the string has length 10 m. Take a coordinate system in which the pulley is at the origin. What is the potential energy of the system as a function of the height of mass mg? (b) Find the acceleration of mass ma (either using...
Q10 A hollow sphere and a hoop of the same mass and radius are released at the same time at the top of an inclined plane. If both are uniform, (1) Which one reaches the bottom of the incline first if there is no slipping? (2) A uniform hollow sphere of mass 120 kg and radius 1.7 m starts from rest and rolls without slipping dow an inclined plane of vertical height 5.3 m. What is the translational speed of...
Problem 1 (50 points 2 kg and mg 1 kg are connected by a small pulley. Mass ma is on an inclined plane at angle in which the pulley ls at the origin. What ls the Two masss m4 θ=r/4 radians, and mg is allowed to hang freely (a) Suppose the string has length 10 m. Take a potential energy of the system as a function of the height of mass mg? (b) Find the of which way the masses...
An object with a mass of 10.0 kg is at rest at the top of a
frictionless inclined plane 8 meters and an angle of inclination 30
degrees with the horizontal. The object is released from this
position and it stops at a distance d from the bottom of the
inclined plane along a horiztonal surface. The coefficient of
kinetic friction for the horizontal surface is .400.
A. what is the knetic energy of the object at the bottom of...
