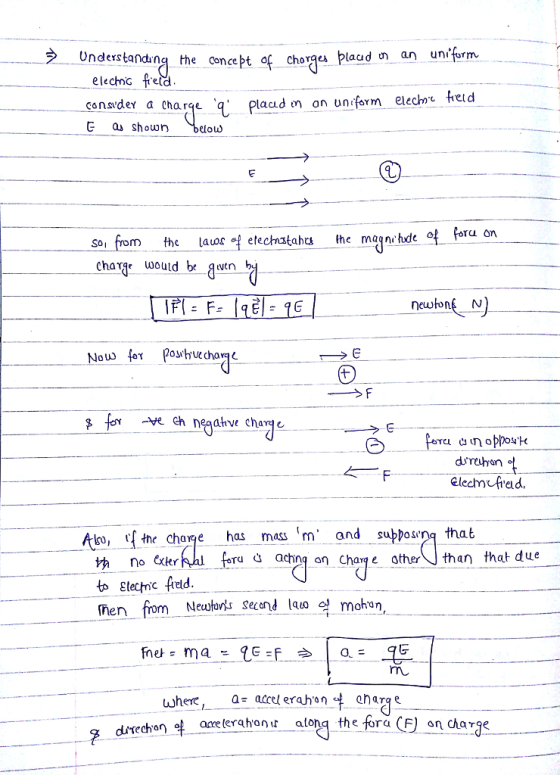

Solving the problem using the concept of charge in constant electric field and applying equations of motion . (here the charge is electron)

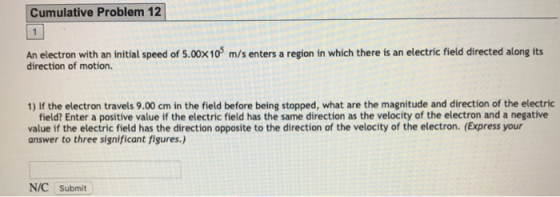

Cumulative Problem 12 An electron with an initial speed of 5.00X10 direction of motion. m/s enters...
An electron with a speed of 5.12 × 108 cm/s in the positive direction of an x axis enters an electric field of magnitude 2.84 × 103 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time will have elapsed? (c) If the region containing the electric field is 7.16 mm long (too short for the electron to stop...
An electron with a speed of 5.76 × 108 cm/s in the positive direction of an x axis enters an electric field of magnitude 2.08 × 103 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time will have elapsed? (c) If the region containing the electric field is 6.25 mm long (too short for the electron to stop...
An electron with a speed of 6.79 × 108 cm/s in the positive direction of an x axis enters an electric field of magnitude 2.13 × 103 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time will have elapsed? (c) If the region containing the electric field is 5.57 mm long (too short for the electron to stop...
An electron with a speed of 3.42 × 108 cm/s in the positive direction of an x axis enters an electric field of magnitude 1.43 × 103 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time will have elapsed? (c) If the region containing the electric field is 5.85 mm long (too short for the electron to stop...
An electron with a speed of 3.16 x 108 cm/s in the positive direction of an x axis enters an electric field of magnitude 2.32 x 103 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time will have elapsed? (c) If the region containing the electric field is 4.95 mm long (too short for the electron to stop...
An electron with a speed of 7.50 ✕ 108 cm/s enters an electric field of magnitude 1.00 ✕ 103 N/C, traveling along the field in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily? ________________ m (b) How much time will have elapsed? __________________ s (c) If, instead, the region of electric field is only 4.00 mm long (too small for the electron to stop), what percentage of the electron's...
Chapter 22, Problem 040 An electron with a speed of 5.95x108 cm/s in the positive direction of an x axis enters an electric field of magnitude 1.95 x 10 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time wll have elapsed? (c) If the region containing the electric field is 8.81 mm long (too short for the electron...
An electron with a speed of 7.76 x 108 cm/s in the positive direction of an x axis enters an electric field of magnitude 1.53 x 103 N/C, traveling along a field line in the direction that retards its motion. (a) How far will the electron travel in the field before stopping momentarily, and (b) how much time will have elapsed? (c) If the region containing the electric field is 7.18 mm long (too short for the electron to stop...
An electron enters a region of uniform electric field with an initial velocity of 70 km/s in the same direction as the electric field, which has magnitude E = 52 N/C. (a) What is the speed of the electron 1.5 ns after entering this region? (b) How far does the electron travel during the 1.5 ns interval?
An electron enters a region of uniform electric field with an initial velocity of 53 km/s in the same direction as the electric field, which has magnitude E = 54 N/C. (a)What is the speed of the electron 1.4 ns after entering this region? (b) How far does the electron travel during the 1.4 ns interval?
