Homework Answers
Add Answer to:
3. Consider the figure below. Mass m, is initially moving down the ramp. There is a...
3. Consider the figure below. Mass m, is initially moving down the ramp. 1 coefficient of...

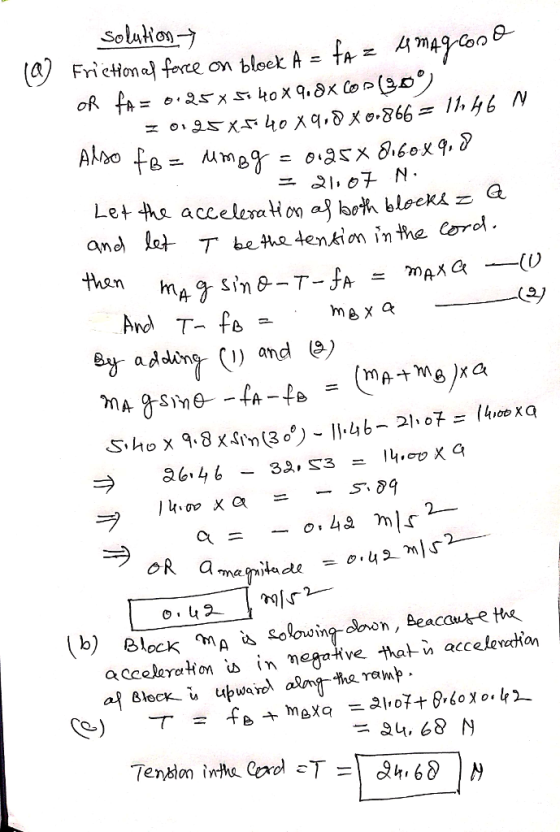

3. Consider the figure below. Mass m, is initially moving down the ramp. 1 coefficient of kinetic friction of 0.25 for all surfaces. ete is a If mA- 5.40 kg, m-8.60 kg, and 0-30.0, a. Calculate the magnitude of the acceleration of block mA? b. Is block ma speeding up, slowing down, or moving at constant speed? Explain. c. Calculate the tension in the cord?
A block of 3 kg is moving up on a ramp (by initial push). The angle...
A block of 3 kg is moving up on a ramp (by initial push). The angle of the ramp is 40 degrees. The coefficient of kinetic friction is 0.25. Calculate the acceleration of the object.
Th figure below shows a mass m=1.0 kg which is initially moving with speed v=7.2 m/s...
Th figure below shows a mass m=1.0 kg which is initially moving
with speed v=7.2 m/s at the top of a frictionless hill of height
h=4.9 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the object
travels a distance D=11.1 m before reaching a speed of v/2, what is
the coefficient of kinetic friction µk? (use picture, but first
question)
Th figure below shows a mass m=1.0 kg...
below. Consider the system below. The pulley is massless and frictionless, and the string is massless....
below. Consider the system below. The pulley is massless and frictionless, and the string is massless. The mass of each block is ma = 5.0 kg, mo = 2.0 kg, mc = 4.0 kg, and md = 15.0 kg. The coefficient of kinetic friction is 0.35 for all surfaces. Mass mais initially in motion moving downward. a b с d a. Calculate the acceleration of the system? b. Calculate the tension in the string between block c and block d?...
Two blocks, connected together by a thin but strong cord, are placed on a ramp as...
Two blocks, connected together by a thin but strong cord, are
placed on a ramp as shown in the figure. The angle of the ramp is
?=30 degrees , the masses of the blocks are mA = 1.00kg and mB =
2.00kg, and the coefficient of static and kinetic friction between
boxes and ramp are µs = 0.500 and µk = 0.200. The gravitational
acceleration is 9.8m/s2 . The mass of the cord is negligible. The
cord does not stretch...
Block A in the figure (Figure 1) has a mass of 3.50kg , and block B...
Block A in the figure (Figure 1) has a mass of 3.50kg ,
and block B has mass 12.0kg . The coefficient of kinetic
friction between block B and the horizontal surface is
0.35.
A) What is the mass of block C if block B is
moving to the right and speeding up with an acceleration 3.00m/s2
?
B) What is the tension in each cord when block B has
this acceleration?
The figure below shows a mass m=1.0 kg which is initially moving with speed v=6.7 m/s...
The figure below shows a mass m=1.0 kg which is initially moving
with speed v=6.7 m/s at the top of a frictionless hill of height
h=4.9 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the
object travels a distance D=10.8 m before reaching a speed of v/2,
what is the coefficient of kinetic friction µk?
✓ -D h
A large rough ramp is inclined φ=35 degrees above the horizontal. A block of mass m...
A large rough ramp is inclined φ=35 degrees above the horizontal. A block of mass m = 5 kg is sliding on the board and the coefficient of kinetic friction between the block and the ramp is μk=0.3 . The block is tied to a string of length L = 0.25 meters so that the block moves about a circular trajectory. HINT: I'd recommend drawing the FBDs from a side-view. a) Draw a complete FBD of the block at the...
Th figure below shows a mass m=1.0 kg which is initially moving with speed v=6.8 m/s...
Th figure below shows a mass m=1.0 kg which is initially moving
with speed v=6.8 m/s at the top of a frictionless hill of height
h=3.7 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the
object travels a distance D=11.6 m before reaching a speed of v/2,
what is the coefficient of kinetic friction µk?
D— h
Th figure below shows a mass m=1.0 kg which is initially moving with speed v=6.7 m/s...
Th figure below shows a mass m=1.0 kg which is initially moving
with speed v=6.7 m/s at the top of a frictionless hill of height
h=4.8 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the object
travels a distance D=10.5 m before reaching a speed of v/2, what is
the coefficient of kinetic friction µk?
D h
3. Consider the figure below. Mass m, is initially moving down the ramp. 1 coefficient of kinetic friction of 0.25 for all surfaces. ete is a If mA- 5.40 kg, m-8.60 kg, and 0-30.0, a. Calculate the magnitude of the acceleration of block mA? b. Is block ma speeding up, slowing down, or moving at constant speed? Explain. c. Calculate the tension in the cord?
Th figure below shows a mass m=1.0 kg which is initially moving
with speed v=7.2 m/s at the top of a frictionless hill of height
h=4.9 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the object
travels a distance D=11.1 m before reaching a speed of v/2, what is
the coefficient of kinetic friction µk? (use picture, but first
question)
Th figure below shows a mass m=1.0 kg...
below. Consider the system below. The pulley is massless and frictionless, and the string is massless. The mass of each block is ma = 5.0 kg, mo = 2.0 kg, mc = 4.0 kg, and md = 15.0 kg. The coefficient of kinetic friction is 0.35 for all surfaces. Mass mais initially in motion moving downward. a b с d a. Calculate the acceleration of the system? b. Calculate the tension in the string between block c and block d?...
Two blocks, connected together by a thin but strong cord, are
placed on a ramp as shown in the figure. The angle of the ramp is
?=30 degrees , the masses of the blocks are mA = 1.00kg and mB =
2.00kg, and the coefficient of static and kinetic friction between
boxes and ramp are µs = 0.500 and µk = 0.200. The gravitational
acceleration is 9.8m/s2 . The mass of the cord is negligible. The
cord does not stretch...
Block A in the figure (Figure 1) has a mass of 3.50kg ,
and block B has mass 12.0kg . The coefficient of kinetic
friction between block B and the horizontal surface is
0.35.
A) What is the mass of block C if block B is
moving to the right and speeding up with an acceleration 3.00m/s2
?
B) What is the tension in each cord when block B has
this acceleration?
The figure below shows a mass m=1.0 kg which is initially moving
with speed v=6.7 m/s at the top of a frictionless hill of height
h=4.9 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the
object travels a distance D=10.8 m before reaching a speed of v/2,
what is the coefficient of kinetic friction µk?
✓ -D h
Th figure below shows a mass m=1.0 kg which is initially moving
with speed v=6.8 m/s at the top of a frictionless hill of height
h=3.7 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the
object travels a distance D=11.6 m before reaching a speed of v/2,
what is the coefficient of kinetic friction µk?
D— h
Th figure below shows a mass m=1.0 kg which is initially moving
with speed v=6.7 m/s at the top of a frictionless hill of height
h=4.8 m. It slides down the hill until it encounters a flat section
with unknown coefficient of kinetic friction µk. If the object
travels a distance D=10.5 m before reaching a speed of v/2, what is
the coefficient of kinetic friction µk?
D h
