A charge of 9.0 μC is in the center of a cube. The electrical flow that...

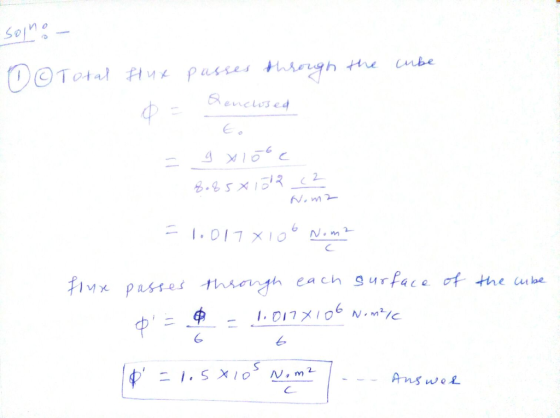

A charge of 9.0 μC is in the center of a cube. The electrical flow that passes through the surface of one side of the cube is

a.

   4.5 x 105 N m2/C
b.

9.0 x 105 N m2/C
c.

1.5 x 105 N m2/C
d.

6.0 x 104 N m2/C

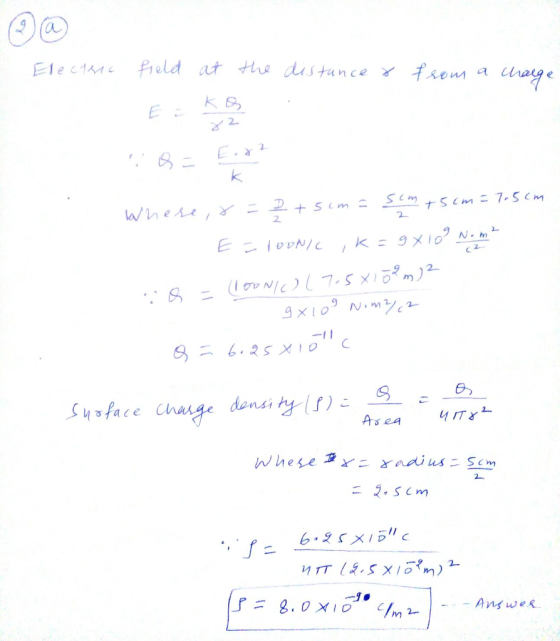

ii- A conductive sphere 5.0 cm in diameter has an electric field facing outward. The electric field is 5.0 cm from the surface and is 100 N / C. The surface charge density of the sphere is:

.

a . 8.0 x 10-9 C/m2
b.

1.5 x 10-8 C/m2
c.

3.5 x 10-9 C/m2
d.

2.2 x 10-10 C/m2
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

0 0
Add a comment
Know the answer?
Add Answer to:
A charge of 9.0 μC is in the center of a cube. The electrical flow that...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A load of 1.7 μC is placed in the corner of a cube. The electrical flow...

    A load of 1.7 μC is placed in the corner of a cube. The electrical flow through the opposite sides is a. 5.0 x 104 N m2/C b. 8.0 x 103 N m2/C c. 0 d. 4.0 x 102 N m2/C ii .The total electrical flow through a closed surface similar to a cylinder is 1.1 x 104 N m2 / C. The net charge in the cylinder is: A. 45 nC b. 18 µC c.72 nC d. 97 nC

  • A point charge of 5.5 μC is at the center of a Gaussian cube 60 cm...

    A point charge of 5.5 μC is at the center of a Gaussian cube 60 cm on edge. What is the net electric flux through the surface?

  • A charge of 1.60 ✕ 10^2 μC is at the center of a cube of edge...

    A charge of 1.60 ✕ 10^2 μC is at the center of a cube of edge 89.0 cm. No other charges are nearby. (a) Find the flux through the whole surface of the cube. N · m^2/C (b) Find the flux through each face of the cube. N · m^2/C (c) Would your answers to parts (a) or (b) change if the charge were not at the center? (Select all that apply.) (a) would change (b) would change neither would...

  • A solid conducting sphere of radius 2.00 cm has a charge of 9.20 μC. A conducting...

    A solid conducting sphere of radius 2.00 cm has a charge of 9.20 μC. A conducting spherical shell of inner radius 4.00 cm and outer radius 5.00 cm is concentric with the solid sphere and has a charge of-1.92 μC. Find the electric field at the following radii from the center of this charge configuration (a) r-1.00 cm magnitude 0 direction N/C The magnitude is zero. (b) r-3.00 cm magnitude 9.2e7 direction radially outward (c) r-4.50 cm magnitude 0 direction...

  • A single point charge is placed at the center of an imaginary cube that has 13...

    A single point charge is placed at the center of an imaginary cube that has 13 cm long edges. The electric flux out of one of the cube's sides is -2.4 kN m2/C. How much charge is at the center? Book Sulonit Answer Save Poress Pacico Another Versian 0/2 points | Previous Answers Tipler6 22.P.041 A nonconducting solid sphere of radius 8.90 cm has a uniform volume charge density. The magnitude of the electric field at 17.8 cm from the...

  • A)A sphere of radius 4.11 cm and uniform surface charge density +11.0 μC/m2 exerts an electrostatic...

    A)A sphere of radius 4.11 cm and uniform surface charge density +11.0 μC/m2 exerts an electrostatic force of magnitude 4.21×10−2 N on a point charge +1.40 μC . Find the separation between the point charge and the center of the sphere. B)The electric field between the plates of a parallel-plate capacitor is horizontal, uniform, and has a magnitude E. Asmall object with a charge of -2.13 μC is attached to the string. The tension in the string is 0.440 N...

  • Charged insulated sphere with R=1.5 cm equally spread charge Q=2.6 nC is located in the middle...

    Charged insulated sphere with R=1.5 cm equally spread charge Q=2.6 nC is located in the middle of the coordinate system (midle of the sphere). In x= L= 10 cm is dot charge q =-2.1 nC. a) Calculate total electrical potential because of the sphere and the dot charge at point x1 = 5.0 cm and x2 = 1.5 cm b) Calculate total electric field because of the sphere and the dot charge at point x1 = 5.0 cm and x2...

  • A point charge q +3 HC is at the center of a sphere of radius 0.3...

    A point charge q +3 HC is at the center of a sphere of radius 0.3 m. (a) Find the surface area of the sphere. (b) Find the magnitude of the electric field at points on the surface of the sphere. N/C (c) What is the flux of the electric field due to the point charge through the surface of the sphere? N m2/C (d) Would your answer to part (c) change if the point charge were moved so that...

  • A point charge of 5.1 μC is located at the center of a sphere with a...

    A point charge of 5.1 μC is located at the center of a sphere with a radius of 7 cm. The Coulomb constant is 8.98755 × 109 Nm2/C2, and the acceleration of gravity is 9.8 m/s2. Determine the electric flux through the surface of the sphere. Answer in units of N/C.

  • 8, AGA charge of 170 μC is at the center of a cube of edge 80.0...

    8, AGA charge of 170 μC is at the center of a cube of edge 80.0 cm. No other charges are nearby. (a) Find the flux a/c ni- ric be through each face of the cube. (b) Find the flux through the whole surface of the cube. (c) What If? Would your answers to either part (a) or part (b) change if the charge were not at the center? Explain. ind inside a submarine:
