7. A uniform electric field E 30 N/C exists parallel to the axis of a square...

Question

Question

science physics

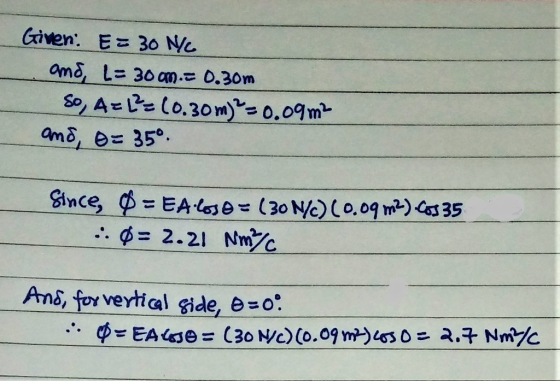

Answer 1

Answer #1

Alright Dude, If that worked for you... dont forget to give THUMBS UP.(that will work for me!)

If I missed something feel free to leave a comment.
atleast before giving downvote.
and, Thanks for using homeworklib- Smarter way to study.

Answer 2
