The correct choice is:
Ex is positive from x = -2 to x = 0, and negative from x = 0 to x = 2
Add Answer to:

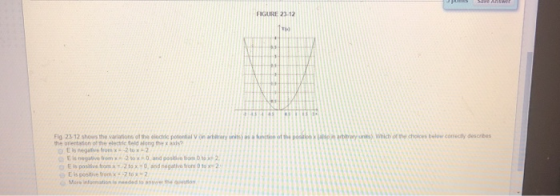

FIGURE 23-12 Fig 23-12 shows the variations otno electric potential V <in arbitrary units) as a...
the graph in the figure shows the variation of the electric potential V(x) (in arbitrary units)...
the graph in the figure shows the variation of the electric
potential V(x) (in arbitrary units) as a function of the position
x. Tell me everything you can about this situation, including what
happens
if a negatively charge particle
is placed at x = 1.5.
V(x) 2 -1.5-1-0.5 0.5 1 1.5 2x
V(V) In the right figure, the top panel of graph shows the potential V as a...
V(V) In the right figure, the top panel of graph shows the potential V as a function of position x in three regions I, II, and III. Accordingly, four parallel plates, A through D, can be setup to realized the distribution of potential, as schematically drawn in the bottom panel of the figure. The unit of the distance is cm, and the unit of potential is V. III The potential on plate D is Submit Answer Incorrect. Tries 1/2 Previous...
The figure shows a graph of electric potential V (in Volts) versus position x (in cm)....
The figure shows a graph of electric potential V (in Volts) versus position x (in cm). If a proton (m = 1.67 x 10-27 kg, q = 1.6 x 10-19 C) is released from rest from X;= 1.5 cm, its speed at Xp= 2.5 cm will be: V (V) 2 3 4 * (cm) O O m/s 15 m/s O 7.2 x 106 m/s O 30 m/s 5.4 x 104 m/s
The figure below shows two points in an electric field. Point 1 is at (X1,Y1) =...
The figure below shows two points in an electric field. Point 1 is at (X1,Y1) = (3,4), and point 2 is at (X2,Y2) = (12,9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 53.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 is 1200.0 V. Calculate the potential at point 2 Submit Answer Tries 0/12 Calculate the work required to move a negative charge of Q=-470.0 μC from...
a) For the arrangement of charges in the figure, calculate the electric potential (in V) at...
a) For the arrangement of charges in the figure, calculate the
electric potential (in V) at point P. Use q = 3.0 nC and d = 2.7 m,
and assume that V = 0 V at infinite distance.
b)If a charge −2q is brought to point P, what
is the electric energy of this charge (in V)? Assume again that the
electric potential energy is zero at infinite distance.
2 .y P.
The figure below shows two points in an electric field. Point 1 is at (X1,%)-(3,4), and...
The figure below shows two points in an electric field. Point 1 is at (X1,%)-(3,4), and point 2 is at (X2,Y2)-(12,9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 59.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 is 1200.0 V Calculate the potential at point 2 Submit Answer Tries 0/12 Calculate the work required to move a negative charge of Q=-470.0 μC from point 1 to point...
The figure below shows two points in an electric field. Point 1 is at (X1,Y1)-(3,4), and...
The figure below shows two points in an electric field. Point 1 is at (X1,Y1)-(3,4), and point 2 is at (X2,Y2)-(12,9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 62.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 is 1000.0 V. Calculate the potential at point 2 Submit Answer Tries 0/12 Calculate the work required to move a negative charge of Q=-539.0 pC from point 1 to point...
12. The drawing shows a plot of the electric potential V versus the displace- ment s....
12. The drawing shows a plot of the electric potential V versus the displace- ment s. The plot consists of four seg- ments. Rank the magnitude of the elec- tric fields for the four segments, largest to smallest (a) D, C, B, A (b) A and C (a tie), B and D (a tie) (c) A, B, D, C (d) B, D, C, A (e) D, B, A and C (a tie) D C A Displacement, s Electric potential, V
The figure below shows a plot of an electric potential as a function of distance along...
The figure below shows a plot of an electric potential as a function of distance along the z-axis. From this information, determine the e-component of the electric field at each of the following displacements. 60 2 50 40 30 20 10 0 x (m) (a)0.50 m Number Units (b) 1.50 m Number Units
The figure below shows two points in an electric field. Point 1 is at (X_1, Y_1)...
The figure below shows two points in an electric field. Point 1 is at (X_1, Y_1) = (3, 4), and point 2 is at (X_2, Y_2) = (12, 9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 77.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 ia 1100.0 V. Calculate the potential at point 2. Calculate the work required to move a negative charge of Q = -585.0...
the graph in the figure shows the variation of the electric
potential V(x) (in arbitrary units) as a function of the position
x. Tell me everything you can about this situation, including what
happens
if a negatively charge particle
is placed at x = 1.5.
V(x) 2 -1.5-1-0.5 0.5 1 1.5 2x
V(V) In the right figure, the top panel of graph shows the potential V as a function of position x in three regions I, II, and III. Accordingly, four parallel plates, A through D, can be setup to realized the distribution of potential, as schematically drawn in the bottom panel of the figure. The unit of the distance is cm, and the unit of potential is V. III The potential on plate D is Submit Answer Incorrect. Tries 1/2 Previous...
The figure shows a graph of electric potential V (in Volts) versus position x (in cm). If a proton (m = 1.67 x 10-27 kg, q = 1.6 x 10-19 C) is released from rest from X;= 1.5 cm, its speed at Xp= 2.5 cm will be: V (V) 2 3 4 * (cm) O O m/s 15 m/s O 7.2 x 106 m/s O 30 m/s 5.4 x 104 m/s
The figure below shows two points in an electric field. Point 1 is at (X1,Y1) = (3,4), and point 2 is at (X2,Y2) = (12,9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 53.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 is 1200.0 V. Calculate the potential at point 2 Submit Answer Tries 0/12 Calculate the work required to move a negative charge of Q=-470.0 μC from...
a) For the arrangement of charges in the figure, calculate the
electric potential (in V) at point P. Use q = 3.0 nC and d = 2.7 m,
and assume that V = 0 V at infinite distance.
b)If a charge −2q is brought to point P, what
is the electric energy of this charge (in V)? Assume again that the
electric potential energy is zero at infinite distance.
2 .y P.
The figure below shows two points in an electric field. Point 1 is at (X1,%)-(3,4), and point 2 is at (X2,Y2)-(12,9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 59.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 is 1200.0 V Calculate the potential at point 2 Submit Answer Tries 0/12 Calculate the work required to move a negative charge of Q=-470.0 μC from point 1 to point...
The figure below shows two points in an electric field. Point 1 is at (X1,Y1)-(3,4), and point 2 is at (X2,Y2)-(12,9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 62.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 is 1000.0 V. Calculate the potential at point 2 Submit Answer Tries 0/12 Calculate the work required to move a negative charge of Q=-539.0 pC from point 1 to point...
12. The drawing shows a plot of the electric potential V versus the displace- ment s. The plot consists of four seg- ments. Rank the magnitude of the elec- tric fields for the four segments, largest to smallest (a) D, C, B, A (b) A and C (a tie), B and D (a tie) (c) A, B, D, C (d) B, D, C, A (e) D, B, A and C (a tie) D C A Displacement, s Electric potential, V
The figure below shows a plot of an electric potential as a function of distance along the z-axis. From this information, determine the e-component of the electric field at each of the following displacements. 60 2 50 40 30 20 10 0 x (m) (a)0.50 m Number Units (b) 1.50 m Number Units
The figure below shows two points in an electric field. Point 1 is at (X_1, Y_1) = (3, 4), and point 2 is at (X_2, Y_2) = (12, 9). (The coordinates are given in meters.) The electric field is constant with a magnitude of 77.3 V/m, and is directed parallel to the +X-axis. The potential at point 1 ia 1100.0 V. Calculate the potential at point 2. Calculate the work required to move a negative charge of Q = -585.0...
