You come across an open container that is filled with two liquids. Since the two liquids...

Question

Question

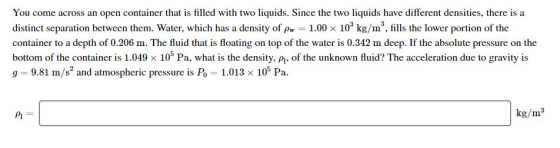

You come across an open container that is filled with two liquids. Since the two liquids have different densities, there is a

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

pressure due to water volume =fgh = 1000(981)(0-206) - 2020.86 pa. Add 1.013x10 = 103320.86 pa. Pressure due to unknown fold

Add a comment

Answer 2

Similar Homework Help Questions

You come across an open container that is filled with two liquids. Since the two liquids...

You come across an open container that is filled with two liquids. Since the two liquids have different densities, there is a distinct separation between them. Water, which has a density of pw = 1.00 x 100 kg/m", fills the lower portion of the container to a depth of 0.218 m. The fluid that is floating on top of the water is 0.349 m deep. If the absolute pressure on the bottom of the container is 1.049 x 10 Pa,...
You come across an open container that is filled with two liquids. Since the two liquids...

You come across an open container that is filled with two liquids. Since the two liquids have different densities, there is a distinct separation between them. Water, which has a density of ρw=1.00×103 kg/m3, fills the lower portion of the container to a depth of 0.215 m. The fluid that is floating on top of the water is 0.342 m deep. If the absolute pressure on the bottom of the container is 1.049×105 Pa, what is the density, ρl, of...
You come across an open container which is filled with two liquids. Since the two liquids...

You come across an open container which is filled with two liquids. Since the two liquids have different density there is a distinct separation between them. Water fills the lower portion of the container to a depth of 0.200 m which has a density of 1.00 x 103 kg/m3. The fluid which is floating on top of the water is 0.342 m deep. If the absolute pressure on the bottom of the container is 1.049 × 105 Pa, what is...

You come across an open container that is filled with two liquids. Since the two liquids...

You come across an open container that is filled with two liquids. Since the two liquids have different densities, there is a distinct separation between them. Water, which has a density of ρw=1.00×103 kg/m3, fills the lower portion of the container to a depth of 0.209 m. The fluid that is floating on top of the water is 0.314 m deep. If the absolute pressure on the bottom of the container is 1.049×105 Pa, what is the density, ?l, of...
You come across an open container that is filled with two liquids. Since the two liquids...

You come across an open container that is filled with two liquids. Since the two liquids have different densities, there is a distinct separation between them. Water, which has a density of ρ w = 1.00 × 10 3 kg/m 3 , fills the lower portion of the container to a depth of 0.221 m . The fluid that is floating on top of the water is 0.328 m deep. If the absolute pressure on the bottom of the container...
Example 13.4: Pressure in a tube with two liquids/ P. 439 A U-shaped tube is closed...

Example 13.4: Pressure in a tube with two liquids/ P. 439 A U-shaped tube is closed at one end; the other end is open to the atmosphere. Water fills the side of the tube that includes the closed end, while oil, floating on the water, fills the side of the tube open to the atmosphere. The two liquids do not mix. The height of the oil above the point where the two liquids touch is 75 cm, while the height...

(b) A storage tank contains two immiscible liquids layered one on the top of the other...

(b) A storage tank contains two immiscible liquids layered one on the top of the other The lighter fluid density is 900 kg/m3, while the denser fluid density is 1100 kg/m3. The height of the denser layer is 1.0 m, the height of the lighter layer is 0.5m and the diameter of the tank is 1.3m Find the expression for the variation of gauge pressure with depth, below the interface between the two liquids and calculate the gauge pressure at...
Consider a 20 m deep lake that is covered with a 0.5 meter thick layer of...

Consider a 20 m deep lake that is covered with a 0.5 meter thick layer of ice. Find the pressure at the bottom of the lake. (water density =1000Kg/m3, density of ice = 917Kg/m3 , atmospheric pressure P0 =1.013* 105 Pa (Pascal)). Group of answer choices a. 981.0 x 105 Pa b. 112.4 x 105 Pa c. 3.018 x 105 Pa d. 31.35 x 105 Pa
water Pressure vs Depth - U Shaped Tube Two Fluids 2 As shown in the figures,...

water Pressure vs Depth - U Shaped Tube Two Fluids 2 As shown in the figures, a U-shaped tube open to the air at both sides contain some unknown liquid. Then water (density = 1000 kg/m 3) fills the Right arm of the U-tube (there is no intermixing between the two liquids). When equilibrium is reached, h1 = 0.18 m, and height of water h2 - 0.56 m. The atmospheric pressure is 1.013x105 Pa. What is the density of the...

An atmospheric diving suit can be used for very deep dives of up 700 m under...

An atmospheric diving suit can be used for very deep dives of up 700 m under the sea level. Calculate the pressure experienced by the suit at this depth (note: the atmospheric pressure on Earth at the sea level P0= 1.01 x105 Pa ; density of water = 1000 kg/m3) Select one: a. 5.49 x 105 Pa b. 6.96 x 106 Pa c. 8.11 x 107 Pa d. 1.33 x 108 Pa e. None of the above
