Homework Answers
Add Answer to:

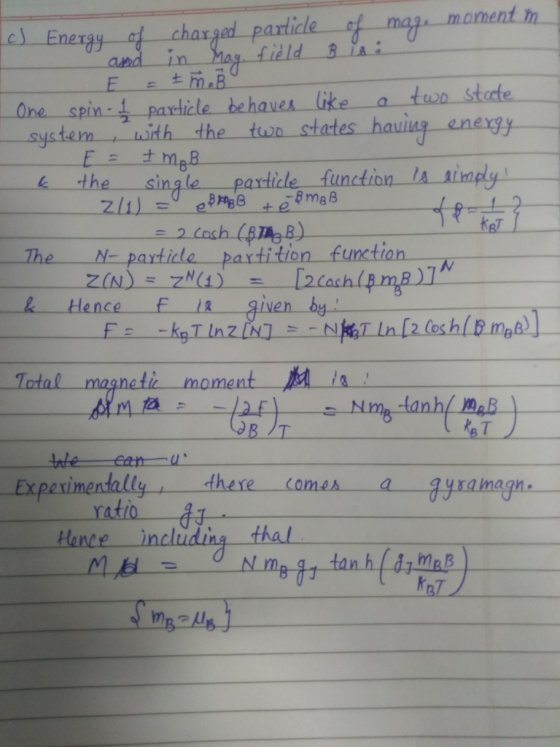

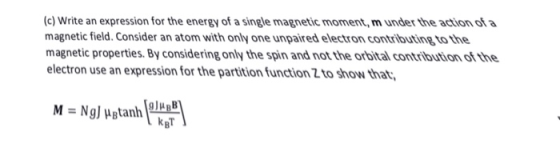

(c) Write an expression for the energy of a single magnetic moment, m under the action...
The energy of a magnetic moment in a magnetic field is . A certain paramagnetic salt contai...
The energy of a magnetic moment in a magnetic field is . A certain paramagnetic salt contains 1025 magnetic moments per m3. Each one has a value , due to the atom's spin. As the spin is 1/2, there only are two possible states and the magnetic moments can be parallel or antiparallel to the field. Each magnetic moment belongs to one distinguishable atom. A 1 cm3 sample of this salt is placed in a electromagnet producing a uniform magnetic...
Which dorbital configuration has the highest crystal field stabilization energy (CFSE) in a low spin octahedral...
Which dorbital configuration has the highest crystal field stabilization energy (CFSE) in a low spin octahedral crystal field? d4 d3 d6 ОООО g8 d? Predic whether the following complex is diamagnetic or paramagentic. 72+ paramagnetic need more information to answer this question diamagnetic The magnetic property of a transition metal complex can be predicted using crystal field theory. If we assume that the magnetic moment arises entirely from unpaired electron spins then the "spin only magnetic moment (us) is given...
Question 1 A system of N identical non-interacting magnetic ions of spin Y%, has energy u...
Question 1 A system of N identical non-interacting magnetic ions of spin Y%, has energy u tHo for each spin. μο is the magnetic moment in a crystal at absolute temperature T in a magnetic field B. For this system calculate: a) The partition function, Z. b) Free energy, F. c) The entropy. S d) The average energy, U e) The average magnetic moment, M
9. An electron moving with non-relativistic velocity v in an electric field E experiences a magnetic...
9. An electron moving with non-relativistic velocity v in an electric field E experiences a magnetic fieldB given by: v x (-V(r)) v x E B=- where (r) is the electric potential. This magnetic field interacts with the magnetic moment u of the electron given by -S, =n me where S is the electron spin. Assuming non-relativistic mechanics, show that the Hamiltonian representing this effect (spin-orbit coupling) for a spherically-symmetric electric potential is: 1 dφ(r) S.L ΔΗ [6] r dr...
1. (50 pts) Consider the spin degree of freedom of an electron under an external magnetic...
1. (50 pts) Consider the spin degree of freedom of an electron under an external magnetic field in the r-direction. The spin is initially (at time t 0) in the z-direction. (a) Write down the Hamiltonian for the electron spin. (Do you remember the elementary magnetic moment of electron, the Bohr magneton μΒ, in terms of electron mass me and the elementary charge e?) b) Write down the Schrödinger equation for the spin (c) Describe the motion of spin direction
Could you show how to do step by step,please? 2. Consider (Cr((Cl).]": (donor/acceptor) --Cl is a...
Could you show how to do step by step,please?
2. Consider (Cr((Cl).]": (donor/acceptor) --Cl is a strong/weak)-field ligand because of interactions with the metal ion --In this complex, Cr-* is a d ion Therefore, the number of unpaired electrons in Cr((Cl).].is Draw an orbital diagram showing the distribution of electrons: Calculate the spin-only magnetic moment of Cr((Cl).]" (in His units): Calculate (i) the Ligand-Field Stabilization Energy (as a function of Ao), (ii) the Coulombic energy (as a function of II.)...
Could you show how to do step by step,please? 3. Consider (Cr(CN).]*: (donor/acceptor) --CN is a...
Could you show how to do step by step,please?
3. Consider (Cr(CN).]*: (donor/acceptor) --CN is a _ (strong/weak)-field ligand because of interactions with the metal ion --In this complex, Cr-* is a d ion Therefore, the number of unpaired electrons in (Cr(CN).)" is Draw an orbital diagram showing the distribution of electrons: Calculate the spin-only magnetic moment of [Cr((CN).]" (in his units): Calculate (i) the Ligand-Field Stabilization Energy (as a function of Ac), (ii) the Coulombic energy (as a function...
Consider a system of N independent classical molecules, each at a fixed position, with magnetic moment...
Consider a system of N independent classical molecules, each at a fixed position, with magnetic moment μ in an external magnetic field B . Determine the partition function, and hence find the free energy and the magnetization at temperature T, when the molecules can only be oriented parallel or antiparallel to the external magnetic field.
Assume you have magnetic molecules on the distinguishable corners of a cube. The magnetic moment of...
Assume you have magnetic molecules on the distinguishable corners of a cube. The magnetic moment of each molecule can either point up or down (but not sideways). Sketch the system (i.e., a cube with molecules at each corner). Under a certain magnetic field, the energy of the system is 20 meV times the absolute value of the difference between the number of the down pointing and up-pointing magnets molecules. [Ei=20meV*|Niup-Nidown|] Make a table of the energetic states of the system...
A Review Constants Periodic Table Learning Goal: To use electron configuration to explain magnetic behavior. Electron...
A Review Constants Periodic Table Learning Goal: To use electron configuration to explain magnetic behavior. Electron configuration The magnetic behavior of an atom or ion depends on its electron configuration. An important property that results from the electron configuration of an atom or an ion is behavior in the presence of an external magnetic field. Due to the random orientations of electron spins most materials have no permanent magnetic effect without an external magnetic field. Part A Select the correct...
Which dorbital configuration has the highest crystal field stabilization energy (CFSE) in a low spin octahedral crystal field? d4 d3 d6 ОООО g8 d? Predic whether the following complex is diamagnetic or paramagentic. 72+ paramagnetic need more information to answer this question diamagnetic The magnetic property of a transition metal complex can be predicted using crystal field theory. If we assume that the magnetic moment arises entirely from unpaired electron spins then the "spin only magnetic moment (us) is given...
Question 1 A system of N identical non-interacting magnetic ions of spin Y%, has energy u tHo for each spin. μο is the magnetic moment in a crystal at absolute temperature T in a magnetic field B. For this system calculate: a) The partition function, Z. b) Free energy, F. c) The entropy. S d) The average energy, U e) The average magnetic moment, M
9. An electron moving with non-relativistic velocity v in an electric field E experiences a magnetic fieldB given by: v x (-V(r)) v x E B=- where (r) is the electric potential. This magnetic field interacts with the magnetic moment u of the electron given by -S, =n me where S is the electron spin. Assuming non-relativistic mechanics, show that the Hamiltonian representing this effect (spin-orbit coupling) for a spherically-symmetric electric potential is: 1 dφ(r) S.L ΔΗ [6] r dr...
1. (50 pts) Consider the spin degree of freedom of an electron under an external magnetic field in the r-direction. The spin is initially (at time t 0) in the z-direction. (a) Write down the Hamiltonian for the electron spin. (Do you remember the elementary magnetic moment of electron, the Bohr magneton μΒ, in terms of electron mass me and the elementary charge e?) b) Write down the Schrödinger equation for the spin (c) Describe the motion of spin direction
Could you show how to do step by step,please?
2. Consider (Cr((Cl).]": (donor/acceptor) --Cl is a strong/weak)-field ligand because of interactions with the metal ion --In this complex, Cr-* is a d ion Therefore, the number of unpaired electrons in Cr((Cl).].is Draw an orbital diagram showing the distribution of electrons: Calculate the spin-only magnetic moment of Cr((Cl).]" (in His units): Calculate (i) the Ligand-Field Stabilization Energy (as a function of Ao), (ii) the Coulombic energy (as a function of II.)...
Could you show how to do step by step,please?
3. Consider (Cr(CN).]*: (donor/acceptor) --CN is a _ (strong/weak)-field ligand because of interactions with the metal ion --In this complex, Cr-* is a d ion Therefore, the number of unpaired electrons in (Cr(CN).)" is Draw an orbital diagram showing the distribution of electrons: Calculate the spin-only magnetic moment of [Cr((CN).]" (in his units): Calculate (i) the Ligand-Field Stabilization Energy (as a function of Ac), (ii) the Coulombic energy (as a function...
A Review Constants Periodic Table Learning Goal: To use electron configuration to explain magnetic behavior. Electron configuration The magnetic behavior of an atom or ion depends on its electron configuration. An important property that results from the electron configuration of an atom or an ion is behavior in the presence of an external magnetic field. Due to the random orientations of electron spins most materials have no permanent magnetic effect without an external magnetic field. Part A Select the correct...
