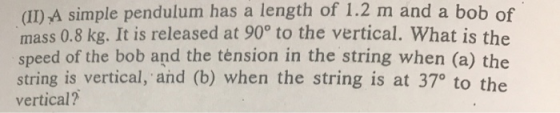

(II) A simple pendulum has a length of 1.2 m mass 0.8 kg. It is released...

Question

Question

science physics

Answer 1

Answer #1

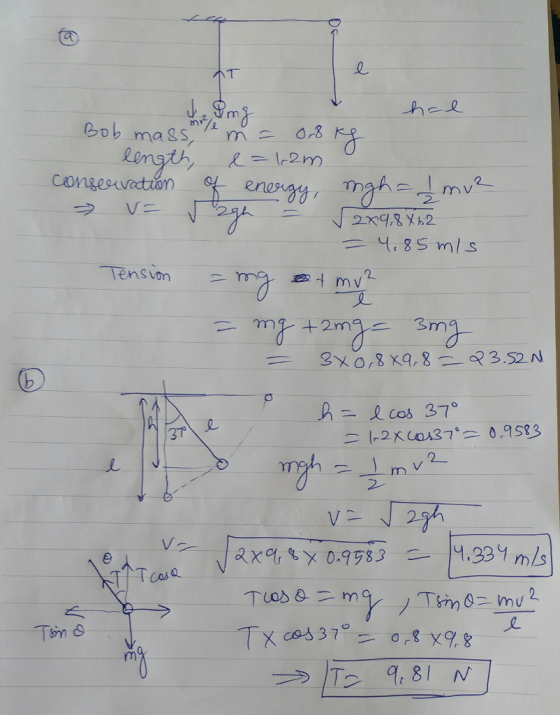

Applying conservation of mechanical energy.

Decrease in gravitational potential energy = increase in kinetic energy.

mo Bob 孑 29人 -Tension 27 VE

Answer 2
