(1) A concrete highway is built of slabs 12 m long (15°C). How wide should the expansion cracks between the slabs be (at 15°C) to prevent buckling if the range of temperature is from -15°C to 50°C.

Please show all working and draw diagrams if required.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

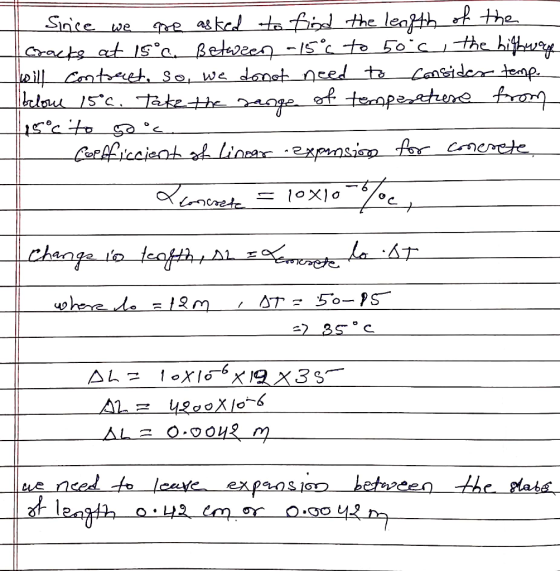

ne a*kei a Bi the leapth the Cha ane^ uO mK AL2 0.oou

0 0
Add a comment
