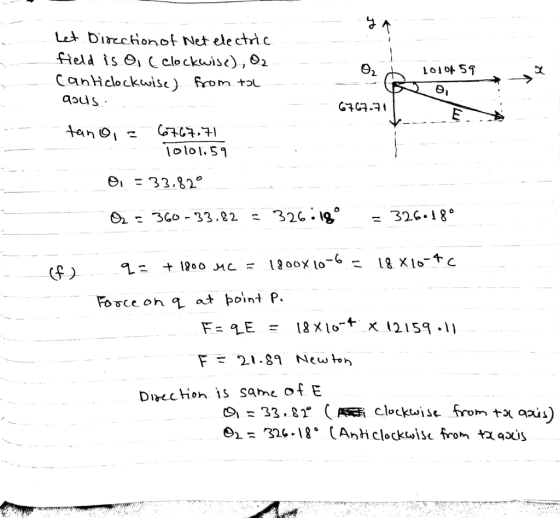

f. Referring to part e, what is the magnitude and direction of the force exerted on q?

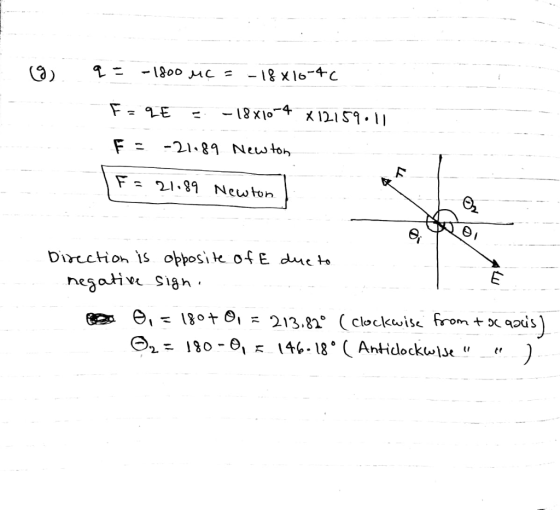

g. If q= - 1800 μcoul, how does the answer in part f change?
Homework Answers
Add Answer to:
f. Referring to part e, what is the magnitude and direction of
the force exerted on...
also, f. Referring to part e, what is the magnitude and direction of the force exerted...
also,
f. Referring to part e, what is the magnitude and direction of
the force exerted on q?
g. If q= - 1800 μcoul, how does the answer in part f change?
( bottom part is the answers)

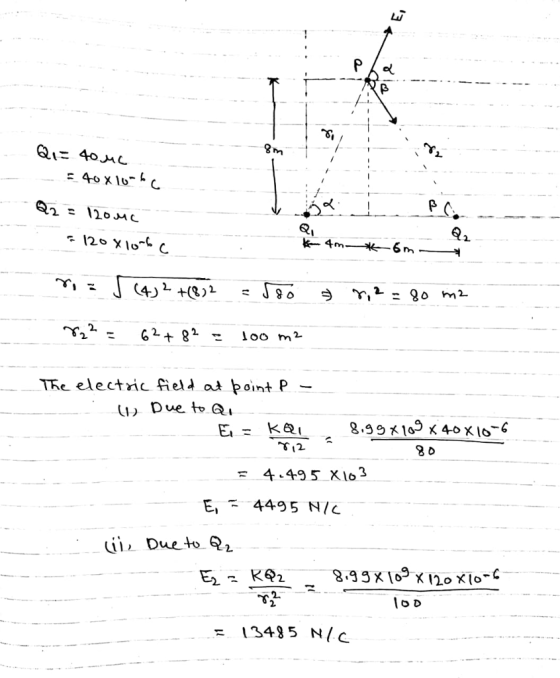

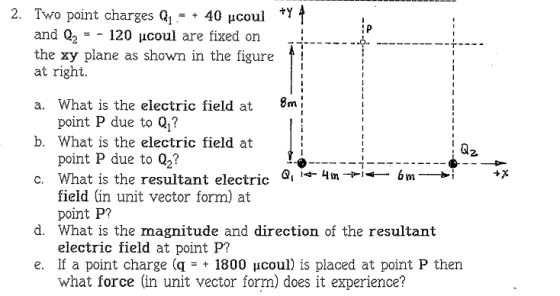

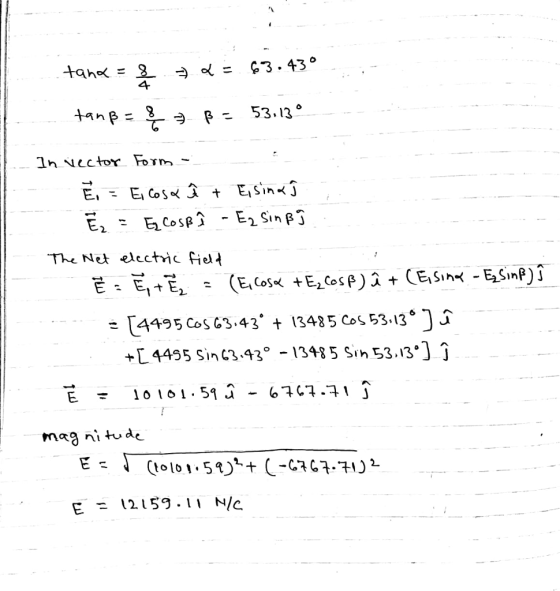

2. Two point charges Q1--+ 40 μcou! and Q2-120 μcoul are fixed on the xy plane as shown in the figure at right a. What is the electric field at 8nm point P due to Q,? point P due to 02? field...
Place a charge of -9.40 µC at point P and find the magnitude and direction of...
Place a charge of -9.40 µC at point P and find the
magnitude and direction of the electric field at the location of
q2 due to q1 = 6.95 µC and
the charge at P.
Magnitude N/C
Direction
(b) Find the magnitude and direction of the force on
q2.
Magnitude n/C
Direction
Eg 0.400 m 0.500 m 0.300 m 42 The resultant electric field E at P equals the vector sum E, E where E, is the field due...
Part A) Find the direction and magnitude of the net electrostatic force exerted on the point...
Part A) Find the direction and magnitude of the net
electrostatic force exerted on the point charge q2 in the figure.
Let q = +2.4μC and d = 36cm.
Part B) Find angle theta counterclockwise from q2-q3 direction.
Show all work for points, thanks!
42 -20d3 44.0
Eg 0.400 m 0.500 m 0.300 m ริเ 12 The resultant electric field E at P...
Eg 0.400 m 0.500 m 0.300 m ริเ 12 The resultant electric field E at P equals the vector sum E 1 +E, where is the field due to the positive charge q1 and E2 is the field due to the negative charge q2 (a) Place a charge of-4.30 μC at point P and find the magnitude and direction of the electric field at the location of q2 due to q1: 7.30 μC and the charge at P. N/C direction...
Part A Review Find the direction and magnitude of the net electrostatic force exerted on the...
Part A Review Find the direction and magnitude of the net electrostatic force exerted on the point charge q (Figure 1) Let q = +2.5pC and d = 35cm. in the figure. Express your answer using two significant figures. Figure < 1of1 > het 2 -2.0d3-3.00 Submit Request A nswer Part B Express your answer using three significant figures. 44.0q counterclockwise from q2-9s direction
Two point charges q1 and q2 arefixed at the two corners of a square, as...
Two point charges q1 and q2 are
fixed at the two corners of a square, as shown in the figure. The
length of each side of the square is 0.5 m. A negative
charge of q= -0.5μC is placed at corner A.a) Determine the magnitude and the direction of the electric
force F1 exerted on charge q by charge
q1.b) Determine the magnitude and the direction of the electric
force F2 exerted on charge q by charge
q2.c) Determine the magnitude...
Part complete Find the direction and magnitude of the net electrostatic force exerted on the point...
Part complete
Find the direction and magnitude of the net electrostatic force
exerted on the point charge q2 in the figure.(Figure 1) Let
q=+2.6μC and d=38cm.
Express your answer using two significant figures.
220 d33.0q 41 +9 4-4.0q
Find the direction and magnitude of the net electrostatic force exerted on the point charge q2...
Find the direction and
magnitude of the net electrostatic force exerted on the point
charge q2 in the figure.(Figure 1) Let q=+1.8μC and d=42cm.
Problem 19.27 5 of 10> Review Part A +1.8μC and d 42cm Find the direction and magnitude of the net electrostatic force exerted on the point charge q2 n the figure (Figure 1) Let q Express your answer using two significant figures. Submit Part B Express your answer using three significant figures Figure 1 of 2-2.0qd93--3.0...
Part A Review Constants Find the direction and magnitude of the net electrostatic force exerted on...
Part A Review Constants Find the direction and magnitude of the net electrostatic force exerted on the point charge q2 in the figure.( Figure 1) Let q = +2.2μC an d-35cm. Express your answer using two significant figures. et Figure 1 of 1 Submit Incorrect; Try Again; 3 attempts remaining Part B Express your answer using three significant figures. d4-4.0g o counterclockwise from q2-s direction
What is the direction of the electric field at point P? (Figure 2) Enter the letter...
Learning Goal: To understand Coulomb's law, electric fields, and the connection between the electric field and the electric force. Coulomb's law gives the electrostatic force F acting between two charges. The magnitude F of the force between two charges q1 and q2 depends on the product of the charges and the square of the distance r between the charges: Part C If the total positive charge is Q = 1.62x10-6 C, what is the magnitude of the electric field caused by this charge at...
also,
f. Referring to part e, what is the magnitude and direction of
the force exerted on q?
g. If q= - 1800 μcoul, how does the answer in part f change?
( bottom part is the answers)
2. Two point charges Q1--+ 40 μcou! and Q2-120 μcoul are fixed on the xy plane as shown in the figure at right a. What is the electric field at 8nm point P due to Q,? point P due to 02? field...
Place a charge of -9.40 µC at point P and find the
magnitude and direction of the electric field at the location of
q2 due to q1 = 6.95 µC and
the charge at P.
Magnitude N/C
Direction
(b) Find the magnitude and direction of the force on
q2.
Magnitude n/C
Direction
Eg 0.400 m 0.500 m 0.300 m 42 The resultant electric field E at P equals the vector sum E, E where E, is the field due...
Part A) Find the direction and magnitude of the net
electrostatic force exerted on the point charge q2 in the figure.
Let q = +2.4μC and d = 36cm.
Part B) Find angle theta counterclockwise from q2-q3 direction.
Show all work for points, thanks!
42 -20d3 44.0
Eg 0.400 m 0.500 m 0.300 m ริเ 12 The resultant electric field E at P equals the vector sum E 1 +E, where is the field due to the positive charge q1 and E2 is the field due to the negative charge q2 (a) Place a charge of-4.30 μC at point P and find the magnitude and direction of the electric field at the location of q2 due to q1: 7.30 μC and the charge at P. N/C direction...
Part A Review Find the direction and magnitude of the net electrostatic force exerted on the point charge q (Figure 1) Let q = +2.5pC and d = 35cm. in the figure. Express your answer using two significant figures. Figure < 1of1 > het 2 -2.0d3-3.00 Submit Request A nswer Part B Express your answer using three significant figures. 44.0q counterclockwise from q2-9s direction
Two point charges q1 and q2 are
fixed at the two corners of a square, as shown in the figure. The
length of each side of the square is 0.5 m. A negative
charge of q= -0.5μC is placed at corner A.a) Determine the magnitude and the direction of the electric
force F1 exerted on charge q by charge
q1.b) Determine the magnitude and the direction of the electric
force F2 exerted on charge q by charge
q2.c) Determine the magnitude...
Part complete
Find the direction and magnitude of the net electrostatic force
exerted on the point charge q2 in the figure.(Figure 1) Let
q=+2.6μC and d=38cm.
Express your answer using two significant figures.
220 d33.0q 41 +9 4-4.0q
Find the direction and
magnitude of the net electrostatic force exerted on the point
charge q2 in the figure.(Figure 1) Let q=+1.8μC and d=42cm.
Problem 19.27 5 of 10> Review Part A +1.8μC and d 42cm Find the direction and magnitude of the net electrostatic force exerted on the point charge q2 n the figure (Figure 1) Let q Express your answer using two significant figures. Submit Part B Express your answer using three significant figures Figure 1 of 2-2.0qd93--3.0...
Part A Review Constants Find the direction and magnitude of the net electrostatic force exerted on the point charge q2 in the figure.( Figure 1) Let q = +2.2μC an d-35cm. Express your answer using two significant figures. et Figure 1 of 1 Submit Incorrect; Try Again; 3 attempts remaining Part B Express your answer using three significant figures. d4-4.0g o counterclockwise from q2-s direction
