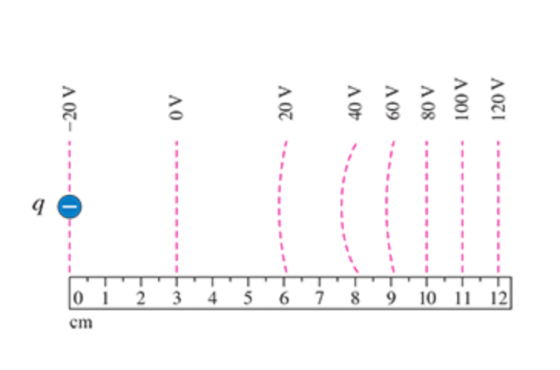

(Figure 1) shows a region of space with an electric field. Vertical lines indicate equipotential surfaces. A particle with charge q = -4.8 nC is initially at the location of the -20-V equipotential line. At time t = 0 the particle is released from rest. Ignore the force exerted by Earth on the particle.

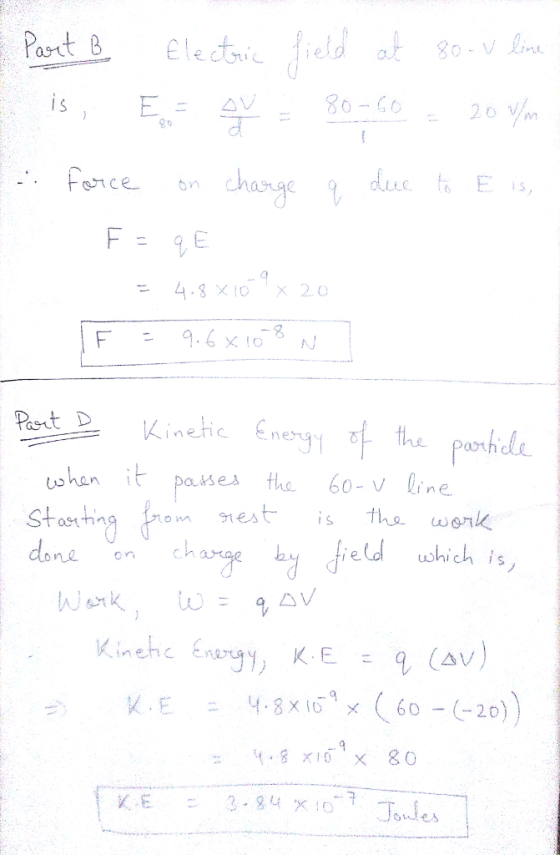

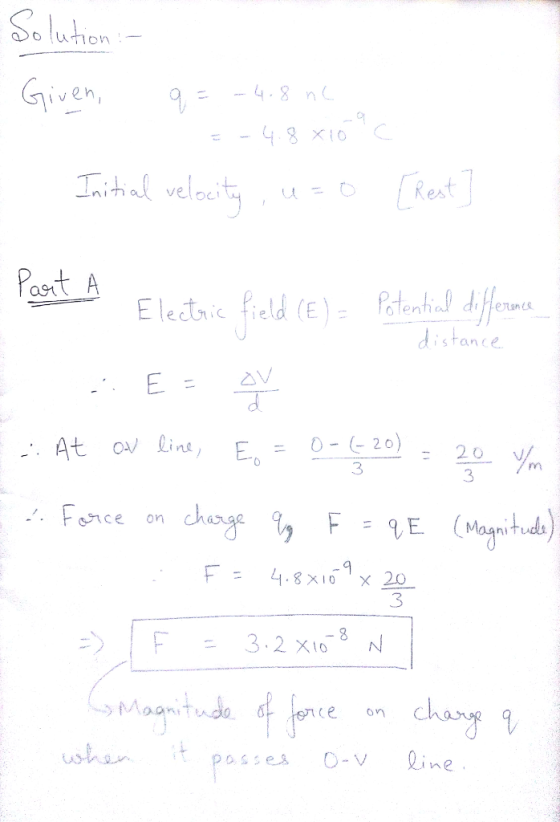

Part A: Estimate the magnitude of force exerted by the electric field on the particle when it passes the 0-V equipotential line.
Part B: Estimate the magnitude of force exerted by the electric field on the particle when it passes the 80-V equipotential line.
Part D: Estimate the kinetic energy of the particle when it passes the 60-V equipotential line.
Homework Answers
Add Answer to:
(Figure 1) shows a region of space with an electric field.
Vertical lines indicate equipotential surfaces....
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines...
The drawing shows a cross-sectional view of two spherical
equipotential surfaces and two electric field lines that are
perpendicular to these surfaces. When an electron moves from point
A to point B (against the electric field), the
electric force does +3.2 x 10-19 J of work. What are the
electric potential differences (a) VB -
VA, (b) VC -
VB, and (c) VC -
VA?
Electric field lines Equipotential surfaces Cross-sectional view) O (a) o V, (b) 0 V, (c)...
1) Which of the following statements about electric fields and equipotential surfaces are correct? (check all...
1) Which of the following statements about electric fields and equipotential surfaces are correct? (check all that apply) a)The electric field direction is always from higher potential to lower potential. b)The number of electric field lines per unit area perpendicular to the field lines is proportional to the strength of the electric field in that region c)Equipotential surfaces are surfaces where the potential is constant over this surface. d)Electric field lines begin on positive charges and end on negative charges....
The diagram shows the cross sections of equipotential surfaces at various distancelx from point 0 in...
The diagram shows the cross sections of equipotential surfaces at various distancelx from point 0 in an electric field. V (V) 60 55 50 45 x (cm) 20 40 6080 (a) (b) (c) (d) (e) Explain whether the electric field is uniform. Find the magnitude of the electric field strength. What is the direction of the electric field? What is the force acting on an electron in the electric field? An electron moves from the equipotential surface of 55 V...
Part 1 Part 2. Consider the equipotential surfaces in the picture. The equipotential lines are separated...
Part 1
Part 2.
Consider the equipotential surfaces in the picture. The equipotential lines are separated by 1 cm 300 V -+ +- -200 V -100 V What is the magnitude of the average electric field between points A and C? The maximum charge that can be stored on a conducting sphere is determined by the electric field required the ionize the material surrounding it. Consider a uniform conducting sphere in air. Air ionizes when the electric field at the...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When a proton with charge e moves from point B to point A the electric force does a positive work W (measured in joule). What is the electric potential differential V_B - V_A? W e W/e 0 Equal to V_C - V_B -W/e For the same problem above, what is the electric potential difference V_C - V_B? W...
PART 2: Electric Potential 1. (2) TF Equipotential surfaces are perpendicular to electric field lines. 2....
PART 2: Electric Potential 1. (2) TF Equipotential surfaces are perpendicular to electric field lines. 2. (2) T F Electric field lines point towards lower electric potential. 3. (2) T F The electron-volt is a unit of electric potential. 4. (2) T F When two charges of opposite signs get closer together their electric potential energy increases.
The dashed lines in the diagram represent cross sections of equipotential surfaces drawn in 1 Vincrements....
The dashed lines in the diagram represent cross sections of
equipotential surfaces drawn in 1 Vincrements. (Figure 1)
Part A
What is the work WAB done by the electric force to move
a 1 Ccharge from A to B?
Part B
What is the work WAD done by the electric force to move
a 1 Ccharge from A to D?
Part C
The magnitude of the electric field at point C is
*greater than the magnitude of the electric field...
Equipotential lines for some region of space are shown in the figure. o v +1 V...
Equipotential lines for some region of space are shown in the figure. o v +1 V B. 0 m 1 m ITm What is the approximate magnitude of the electric field Es at point A? EA 15 What is the approximate magnitude of the electric field En at point En 3.5 V/m V/m
Please answer parts A,B, & C, thank you! Phy284.Sp19 Assignments <p08 Electric Fields and Equipotential Surfaces...
Please answer parts A,B, & C, thank you!
Phy284.Sp19 Assignments <p08 Electric Fields and Equipotential Surfaces Part A Constants What is the work done by the electric force to move a 1 C charge from A to B? Express your answer in joules. (Figure 1) Figure く 1011 2 V I v Part B o v What is the work done by the electric force to move a 1 C charge from A to D? Express your answer in joules....
The dashed lines in the diagram represent cross-sections of equipotential surfaces drawn in 1-V increments.
The dashed lines in the diagram represent cross-sections of equipotential surfaces drawn in 1-V increments.What is the work WAB done
by the electric force to move a 1-C charge
from A to B?What is the work WAD done
by the electric force to move a 1-C charge
from A to D?The magnitude of the electric field at point C
isa) greater than the magnitude of the electric field at point B.b) less than the magnitude of the electric field at point B.c) equal...
The drawing shows a cross-sectional view of two spherical
equipotential surfaces and two electric field lines that are
perpendicular to these surfaces. When an electron moves from point
A to point B (against the electric field), the
electric force does +3.2 x 10-19 J of work. What are the
electric potential differences (a) VB -
VA, (b) VC -
VB, and (c) VC -
VA?
Electric field lines Equipotential surfaces Cross-sectional view) O (a) o V, (b) 0 V, (c)...
The diagram shows the cross sections of equipotential surfaces at various distancelx from point 0 in an electric field. V (V) 60 55 50 45 x (cm) 20 40 6080 (a) (b) (c) (d) (e) Explain whether the electric field is uniform. Find the magnitude of the electric field strength. What is the direction of the electric field? What is the force acting on an electron in the electric field? An electron moves from the equipotential surface of 55 V...
Part 1
Part 2.
Consider the equipotential surfaces in the picture. The equipotential lines are separated by 1 cm 300 V -+ +- -200 V -100 V What is the magnitude of the average electric field between points A and C? The maximum charge that can be stored on a conducting sphere is determined by the electric field required the ionize the material surrounding it. Consider a uniform conducting sphere in air. Air ionizes when the electric field at the...
The drawing shows a cross-sectional view of two spherical equipotential surfaces and two electric field lines that are perpendicular to these surfaces. When a proton with charge e moves from point B to point A the electric force does a positive work W (measured in joule). What is the electric potential differential V_B - V_A? W e W/e 0 Equal to V_C - V_B -W/e For the same problem above, what is the electric potential difference V_C - V_B? W...
PART 2: Electric Potential 1. (2) TF Equipotential surfaces are perpendicular to electric field lines. 2. (2) T F Electric field lines point towards lower electric potential. 3. (2) T F The electron-volt is a unit of electric potential. 4. (2) T F When two charges of opposite signs get closer together their electric potential energy increases.
The dashed lines in the diagram represent cross sections of
equipotential surfaces drawn in 1 Vincrements. (Figure 1)
Part A
What is the work WAB done by the electric force to move
a 1 Ccharge from A to B?
Part B
What is the work WAD done by the electric force to move
a 1 Ccharge from A to D?
Part C
The magnitude of the electric field at point C is
*greater than the magnitude of the electric field...
Equipotential lines for some region of space are shown in the figure. o v +1 V B. 0 m 1 m ITm What is the approximate magnitude of the electric field Es at point A? EA 15 What is the approximate magnitude of the electric field En at point En 3.5 V/m V/m
Please answer parts A,B, & C, thank you!
Phy284.Sp19 Assignments <p08 Electric Fields and Equipotential Surfaces Part A Constants What is the work done by the electric force to move a 1 C charge from A to B? Express your answer in joules. (Figure 1) Figure く 1011 2 V I v Part B o v What is the work done by the electric force to move a 1 C charge from A to D? Express your answer in joules....
The dashed lines in the diagram represent cross-sections of equipotential surfaces drawn in 1-V increments.What is the work WAB done
by the electric force to move a 1-C charge
from A to B?What is the work WAD done
by the electric force to move a 1-C charge
from A to D?The magnitude of the electric field at point C
isa) greater than the magnitude of the electric field at point B.b) less than the magnitude of the electric field at point B.c) equal...
