Question

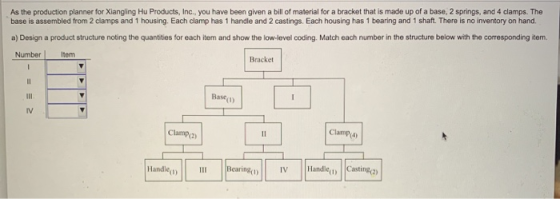

As the production planner for Xiangling Hu Products, Inc., you have been given a bill of material for a bracket that is made up of a base, 2 springs, and 4 clamps. The base is assembled from 2 clamps and 1 housing. Each clamp has 1 handle and 2 castings. Each housing has 1 bearing and 1 shaft. There is no inventory on hand. a) Design a product structure noting the quantities for each item and show the low-level coding. Match each number in the structure below with the corresponding item. Number Item Bracket Clamp (2) Clamp Handle (1) Bearing Handle (1) Casting

Answer 1

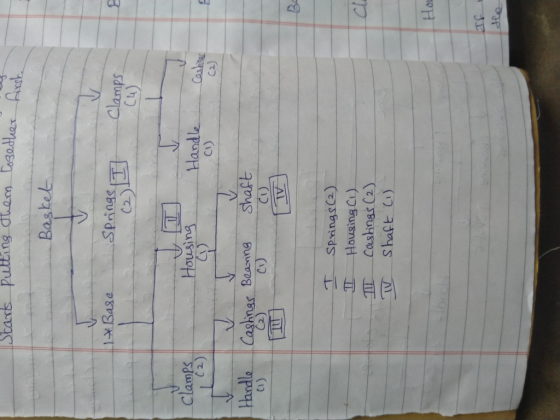

Start putting them together first Basket 1* Base Springs (2 Clamps Clamps (2 Housing Handle Castines Handle Castings Bearing sha Shaft CU TUL TV BC I Springs (2) Housing Cu) Castings (2) Shaft (1) I TV Hor He

Basket has 3 components

Base*1

Springs*2

Clamps*4

Base has 2 components

Clamps*2

Housing*1

Clamp has 2 components

Handle*1

Casting*2

Housing has 2 components

Bearing*1

Shaft*1

If we put them in order as shown in the picture we will get the answer
