Question

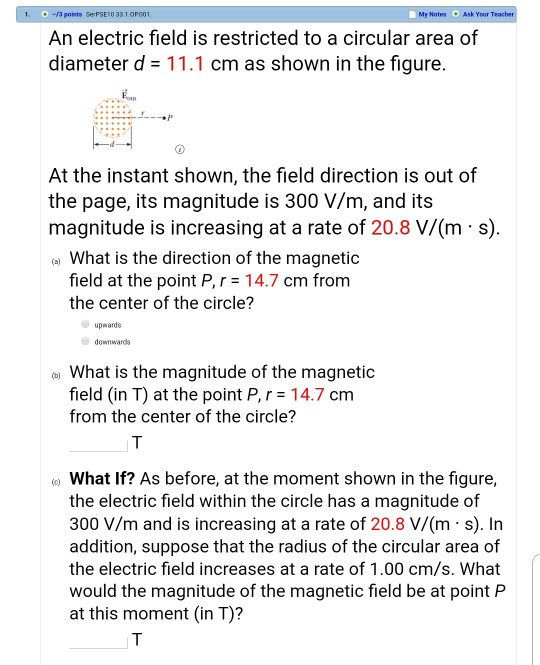

1. -3 points Se PSE10 331.OP00 My Nates O Ask Your Teac An electric field is restricted to a circular area of diameter d-11.1 cm as shown in the figure. At the instant shown, the field direction is out of the page, its magnitude is 300 V/m, and its magnitude is increasing at a rate of 20.8 V/(m s) a) What is the direction of the magnetic field at the point P,r 14.7 cm from the center of the circle? upwards downwards What is the magnitude of the magnetic field (in T) at the point P, 14.7 cm from the center of the circle? e What If? As before, at the moment shown in the figure, the electric field within the circle has a magnitude of 300 V/m and is increasing at a rate of 20.8 V/(m s). In addition, suppose that the radius of the circular area of the electric field increases at a rate of 1.00 cm/s. What would the magnitude of the magnetic field be at point P at this moment (in T)?

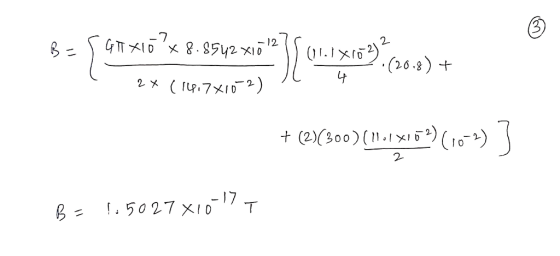

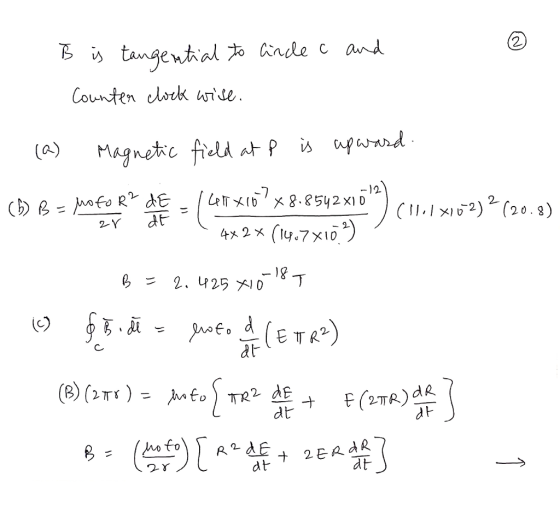

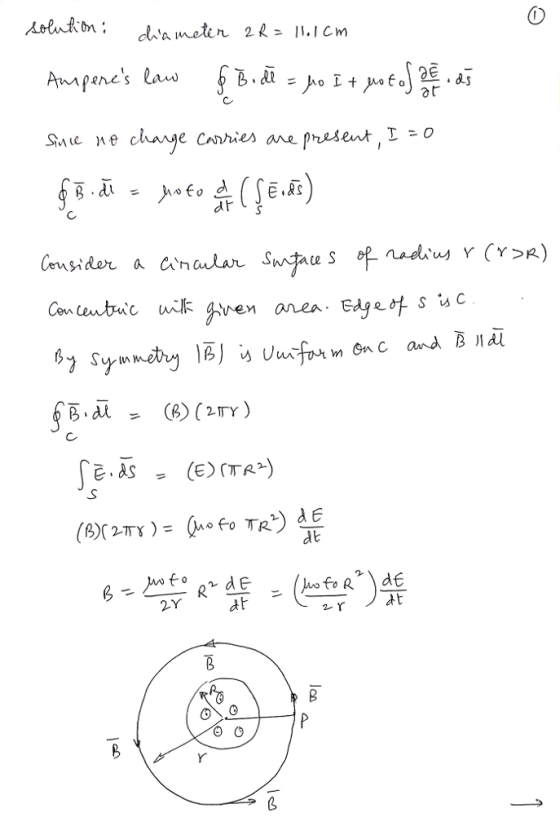

Answer 1
