Homework Answers
Add Answer to:

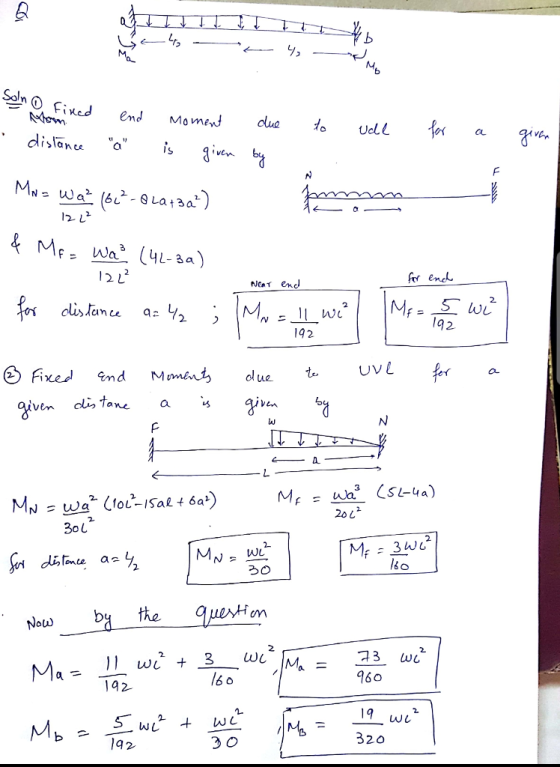

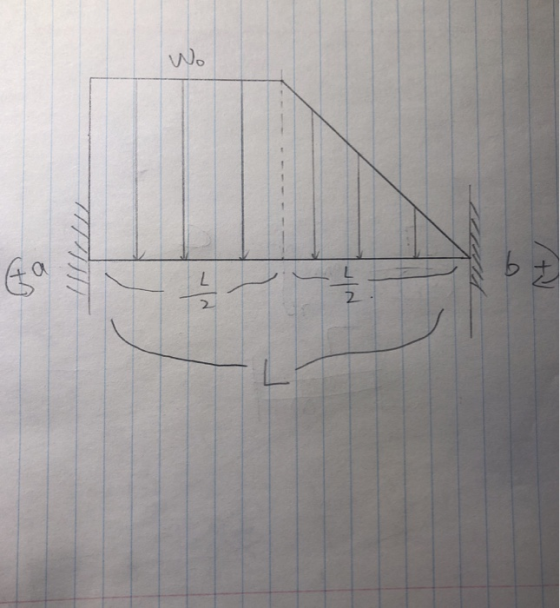

Please find the Fixed End Moment equation at both point a and
b..
Jo 2 ピ
Question 2: Stiffness Method in Structural Analysis. Calculate the moment at the fixed end support for...
Question 2: Stiffness Method in Structural Analysis. Calculate the moment at the fixed end support for the 2 span continuous beam structure as shown in Figure Q2 below using stiffness method. (Hint: Use superposition of fixed end and nodal load structure.) The continuous beam is fixed end supported at joint A. It is roller supported at joint B and C A point load of 80 kN is acting on member AB, 6 m from joint A. A uniform load of...
1. Find the moment about point O due to the force P. 2. Find the moment...
1. Find the moment about point O due to the force P.
2. Find the moment about point O due to the combined
forces Q and R
3. Find the moment about point B due to the
combined forces Q and R
4. Find the moment about point A due tot
the combined forces Q and R
5. Are the moments about point O, B, A the same due to
the combined forces Q and R. Why?
6. Don't the...
1 Q2. Figure 2 shows a system in which mass m is connected with a cylinder of mass m2 and moment of inertia Jo through...
1 Q2. Figure 2 shows a system in which mass m is connected with a cylinder of mass m2 and moment of inertia Jo through a horizontal spring k. The cylinder is m1 rolling on the rough surface without slipping. (1) Find its total kinetic energy, total potential energy TN and Lagrangian, Figure 2 (2) Derive the equations of motion using Lagrangian equation method, and (3) Calculate its natural frequencies
1 Q2. Figure 2 shows a system in which mass...
Q4) Find the moment produced by force Fi about point B Find the moment produced by...
Q4) Find the moment produced by force Fi about point B Find the moment produced by force Fs about point A Find the resultant moment about point A (The sum of all moments produced by all forces about point A) F2 = 300 N F, = 250 N 3 4 m Fs 500 N
Find reaction forces at point A and Point B then draw the shear and the moment...
Find reaction forces at point A and Point B then draw the shear
and the moment diagram.
20KN 10KN/M A. B 1 um
Find the moment of the 340 lb force with respect to : a) point A; b)...
Find the moment of the 340 lb force with respect to : a) point
A; b) line AB; c) find the perpendicular distance from A to the
line of action of the force.
problem 6: Find he moment of the 340 lb force with respect to a) point A. b) ne AB; c) find the perpendicular distance from A to the ne of action of the force. (s. 8.01 AIA, 8, 9) 310 (0, 3) (A5, 0,9)
Find the equation of the elastic curve, y(x) (deflection) by integration of the Moment equation
Find the equation of the elastic curve, y(x) (deflection) by integration of the Moment equation, M(x)/EL. Find the location of maximum deflection. In a small dam, a typical vertical beam is subjected to the hydrostatic loading shown in the figure. Determine the stress at point D of section a-a due to the bending moment. Ans: 7.29MPa.
Find an equation of the tangent to the curve at the given point by both eliminating...
Find an equation of the tangent to the curve at the given point by both eliminating the parameter and without eliminating the parameter. x = 6 + In(t), y = +2 +6, (6, 7) — x
Using moment area method, for the beam shown in Figure P-2 find deflection at the center (point C) and rotation under the concentrated load (point D). Also, find locat...
2 - Using moment area method, for the beam shown in Figure P-2 find deflection at the center (point C) and rotation under the concentrated load (point D). Also, find location and value of the maximunm deflection. EI constant. 3- Repeat Problem 2 where I for CB is twice as large as I for AC. 4 - For the beam shown in Figure P-3, find the reactions and draw shear and moment diagrams. A is fixed, B and D are hinges, and...
A) Find the reaction forces a fixed support (point a), the pin at point c and...
A) Find the reaction forces a fixed support (point a), the pin
at point c and the roller at point d.
B) Draw the stress and bending moment diagrams.
200kn iskin m 30kw/m 1 45KN Ami Am, 3m
Question 2: Stiffness Method in Structural Analysis. Calculate the moment at the fixed end support for the 2 span continuous beam structure as shown in Figure Q2 below using stiffness method. (Hint: Use superposition of fixed end and nodal load structure.) The continuous beam is fixed end supported at joint A. It is roller supported at joint B and C A point load of 80 kN is acting on member AB, 6 m from joint A. A uniform load of...
1. Find the moment about point O due to the force P.
2. Find the moment about point O due to the combined
forces Q and R
3. Find the moment about point B due to the
combined forces Q and R
4. Find the moment about point A due tot
the combined forces Q and R
5. Are the moments about point O, B, A the same due to
the combined forces Q and R. Why?
6. Don't the...
1 Q2. Figure 2 shows a system in which mass m is connected with a cylinder of mass m2 and moment of inertia Jo through a horizontal spring k. The cylinder is m1 rolling on the rough surface without slipping. (1) Find its total kinetic energy, total potential energy TN and Lagrangian, Figure 2 (2) Derive the equations of motion using Lagrangian equation method, and (3) Calculate its natural frequencies
1 Q2. Figure 2 shows a system in which mass...
Q4) Find the moment produced by force Fi about point B Find the moment produced by force Fs about point A Find the resultant moment about point A (The sum of all moments produced by all forces about point A) F2 = 300 N F, = 250 N 3 4 m Fs 500 N
Find reaction forces at point A and Point B then draw the shear
and the moment diagram.
20KN 10KN/M A. B 1 um
Find the moment of the 340 lb force with respect to : a) point
A; b) line AB; c) find the perpendicular distance from A to the
line of action of the force.
problem 6: Find he moment of the 340 lb force with respect to a) point A. b) ne AB; c) find the perpendicular distance from A to the ne of action of the force. (s. 8.01 AIA, 8, 9) 310 (0, 3) (A5, 0,9)
Find an equation of the tangent to the curve at the given point by both eliminating the parameter and without eliminating the parameter. x = 6 + In(t), y = +2 +6, (6, 7) — x
A) Find the reaction forces a fixed support (point a), the pin
at point c and the roller at point d.
B) Draw the stress and bending moment diagrams.
200kn iskin m 30kw/m 1 45KN Ami Am, 3m
