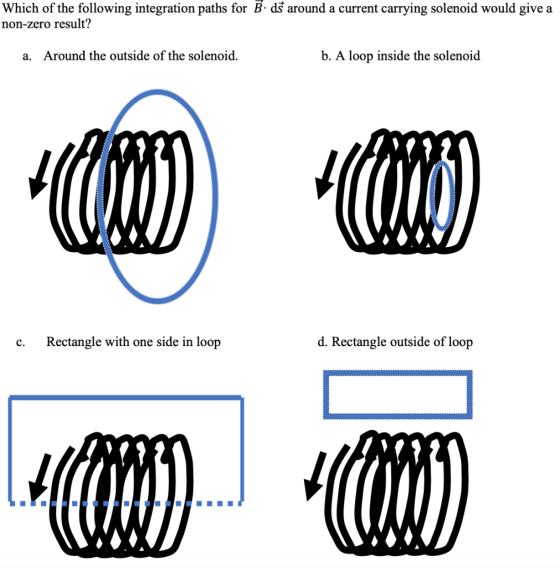

Which of the following integration paths for ?· d?⃗ around a current carrying solenoid would give a non-zero result?
a)Around the outside of the solenoid.
b)A loop inside the solenoid
c)Rectangle with one side in loop
d)Rectangle outside of loop
Homework Answers
Add Answer to:
Which of the following integration paths for ?· d?⃗ around a
current carrying solenoid would give...
-dB-(Hol dx Extra Credit 1.) Which equation from A-E on left should be used to find...
-dB-(Hol dx Extra Credit 1.) Which equation from A-E on left should be used to find out the B field inside an ideal solenoid 4T r2 B. Jclosed loop Extra Credit 2.) Which equation from A-E on left should be used to find out the B field due to a current carrying circular curve at its center dt Extra Credit 3.) Which equation from A-E on left should be used to find the induced E feld around the solenoid carrying...
13) Ampere’s Law – Solenoid: (12 pts) A coil of wire is wrapped into a solenoid...
13) Ampere’s Law – Solenoid: (12 pts) A coil of wire is
wrapped into a solenoid of length l = 1 m and has N = 15 loops with
a current of 1 A passing through it.
13) Ampere's Law - Solenoid: (12 pts) A coil of wire is wrapped into a solenoid of length 1 = 1 m and has N = 15 loops with a current of 1 A passing through it. (a) Identify the current enclosed by...
electromagnetic 13) Ampere's Law - Solenoid: (12 pts) A coil of wire is wrapped into a...
electromagnetic
13) Ampere's Law - Solenoid: (12 pts) A coil of wire is wrapped into a solenoid of length / = 1 m and has n = 15 loops with a current of 1 A passing through it. (a) Identify the current enclosed by an Amperian loop passing through the center of the solenoid as shown in the figure below. 2000000000000000 (b) is the magnetic field perfectly uniform inside this real solenoid? Explain. (e) Is the magnetic field zero or...
Question 3 A long solenoid with n turns per unit length of current I is wrapped around a cylindri...
Question 3 A long solenoid with n turns per unit length of current I is wrapped around a cylindrical magnetic core of permeability μ μ0Hm The cylindrical core, extending along the z-axis, has radius α n turns per unit length, current I per turn Magnetic material of μ (a) If the solenoid is considered as infinite in length, it can be shown that the magnetic field, expressed in cylindrical coordinates, is: r> a Apply Ampere's law, using the rectangular path...
3. (3 pts) A square loop of side a carrying a constant current lo is centered in a long solenoid ...
3. (3 pts) A square loop of side a carrying a constant current lo is centered in a long solenoid of radius so > a and with n coils per meter. The ends of the solenoid wires are attached in a closed circuit with resistance R. The loop is rotating with constant angular frequency on an axis perpendicular to the axis of the solenoid (and passing through the axis of the solenoid). a. Find the torque τ required to keep...
A current carrying loop of wire lies flat on a table top. When viewed from above,...
A current carrying loop of wire lies flat on a table top. When viewed from above, the current moves around the loop in a counterclockwise sense. What is the direction of the magnetic field caused by this current, outside the loop? The magnetic field: A) circles the loop in a clockwise direction. B) circles the loop in a counterclockwise direction. C) points straight up. D) points straight down. Can someone explain why the correct answer is straight down by hand...
a) Two long straight wires are carrying current out of the page and into the page...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 1 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). What direction will the loop rotate? Answer by saying which side...
a) Two long straight wires are carrying current out of the page and into the page...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 12 11 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). IB - L What direction will the loop rotate? Answer...
A conducting rod is being dragged along conducting rails, as shown in (Figure 1)
Part A A conducting rod is being dragged along conducting rails, as shown in (Figure 1). The magnetic field is directed out of the screen. In what direction does the induced current flow through the light bulb? There is no induced current. The induced current flows through the bulb from the left to the right. The induced current flows through the bulb from the right to the left. Part B A circular loop of conducting wire is moving through a uniform magnetic field, as...
Complete the following statement: The magnetic field around a circular "loop" carrying a current is the...
Complete the following statement: The magnetic field around a circular "loop" carrying a current is the closest thing to: a. Magnetic field of the Earth b. Magnetic field of a magnetic short bar c. Rectangular loop with current d. A long stretched cable that carries current and. Two long stretched cables that both carry currents in opposite directions
-dB-(Hol dx Extra Credit 1.) Which equation from A-E on left should be used to find out the B field inside an ideal solenoid 4T r2 B. Jclosed loop Extra Credit 2.) Which equation from A-E on left should be used to find out the B field due to a current carrying circular curve at its center dt Extra Credit 3.) Which equation from A-E on left should be used to find the induced E feld around the solenoid carrying...
13) Ampere’s Law – Solenoid: (12 pts) A coil of wire is
wrapped into a solenoid of length l = 1 m and has N = 15 loops with
a current of 1 A passing through it.
13) Ampere's Law - Solenoid: (12 pts) A coil of wire is wrapped into a solenoid of length 1 = 1 m and has N = 15 loops with a current of 1 A passing through it. (a) Identify the current enclosed by...
electromagnetic
13) Ampere's Law - Solenoid: (12 pts) A coil of wire is wrapped into a solenoid of length / = 1 m and has n = 15 loops with a current of 1 A passing through it. (a) Identify the current enclosed by an Amperian loop passing through the center of the solenoid as shown in the figure below. 2000000000000000 (b) is the magnetic field perfectly uniform inside this real solenoid? Explain. (e) Is the magnetic field zero or...
Question 3 A long solenoid with n turns per unit length of current I is wrapped around a cylindrical magnetic core of permeability μ μ0Hm The cylindrical core, extending along the z-axis, has radius α n turns per unit length, current I per turn Magnetic material of μ (a) If the solenoid is considered as infinite in length, it can be shown that the magnetic field, expressed in cylindrical coordinates, is: r> a Apply Ampere's law, using the rectangular path...
3. (3 pts) A square loop of side a carrying a constant current lo is centered in a long solenoid of radius so > a and with n coils per meter. The ends of the solenoid wires are attached in a closed circuit with resistance R. The loop is rotating with constant angular frequency on an axis perpendicular to the axis of the solenoid (and passing through the axis of the solenoid). a. Find the torque τ required to keep...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 1 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). What direction will the loop rotate? Answer by saying which side...
a) Two long straight wires are carrying current out of the page and into the page as shown Draw the direction of the force exerted on wire 2. X 12 11 b) A rectangular loop of wire with current flowing through it is sitting in an external magnetic field as shown below (the magnetic field in the dashed region is caused by magnets that are not shown in the diagram). IB - L What direction will the loop rotate? Answer...
Part A A conducting rod is being dragged along conducting rails, as shown in (Figure 1). The magnetic field is directed out of the screen. In what direction does the induced current flow through the light bulb? There is no induced current. The induced current flows through the bulb from the left to the right. The induced current flows through the bulb from the right to the left. Part B A circular loop of conducting wire is moving through a uniform magnetic field, as...
