5. (10 pts) A transformer is designed to have an output voltage of 1350 V (rms) when the primary coil is connected to a 150V (rms) source. (i) Is this a step-up or step-down transformer? f there are 2700 turns on the secondary winding (coil), how many turns are required on the primary? (ii) If a load resistor across the secondary draws a peak current of 1.5.A, what is the peak and the rms current in the primary?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

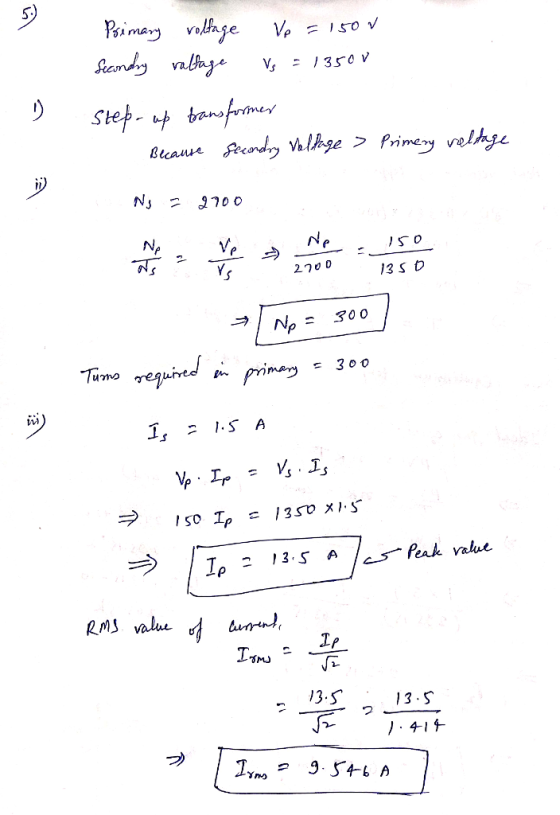

5 13S D No 30o Tuno 13S13 S
