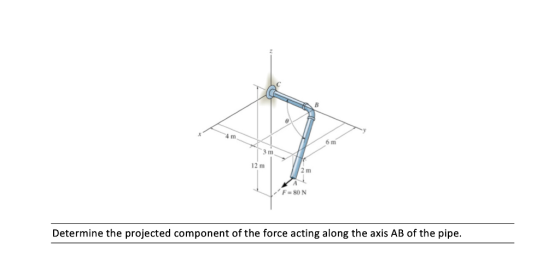

4 m 6 m 3 m 12 m 2 m F-SON Determine the projected component of the force acting along the axis AB of the pipe.

math Statistics-And-Probability

Answer 1

Answer #1

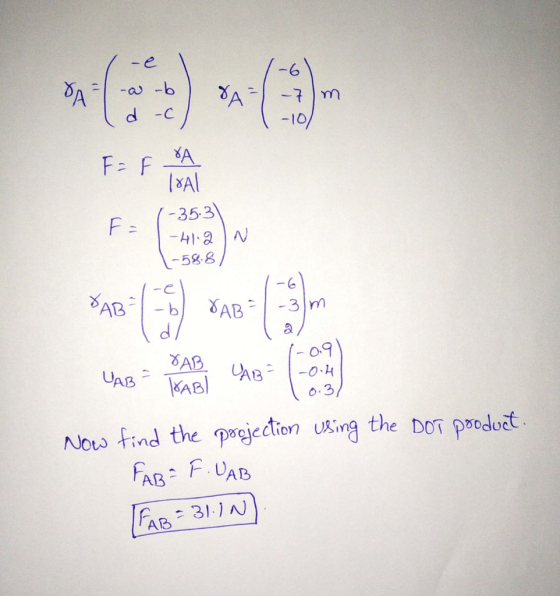

-6 d -C 35.3 -58 8 -C 2 AB Nou find the pocjection uxing the Dor podlot Dscijeclion USing the 尻B2 FLAB FAB 3-1 A U)

Answer 2

Similar Homework Help Questions

12 m F 80 N Determine the projected component of the force acting along the axis...

12 m F 80 N Determine the projected component of the force acting along the axis AB of the pipe
Determine the magnitude of the projected component of the F=6 kN force acting along the axis...

Determine the magnitude of the projected component of the F=6 kN force acting along the axis BC of the pipe. Suppose that a=2.6m and b=4.6m 5 m 1 m x.
Problem 2.129 Y Part A Determine the magnitude of the projected component of the F 6...

Problem 2.129 Y Part A Determine the magnitude of the projected component of the F 6 kN force acting along the axis BC of the a 2.7 m and b -3.3 m. (Figure 1) pipe. Suppose that Express your answer to three significant figures and include the appropriate units. Rel= 0.0198 kN Figure 1 of 1 Incorrect; Try Again; 8 attempts remaining < Return to Assignment Prowde Feedback

A force acting on the pole at point A. a.) Determine the magnitude of the projected...

A force acting on the pole at point A. a.) Determine the magnitude of the projected component of the force along the cable AB. b.) Determine the magnitude of the projected component of the force along the cable AC. c.) Determine the angle between cables AB and AC. 2 m 6 m 6 m 5 m 15° V F=1000 N
1) (30 pts) A Force is given with F= BC kN in the figure below. According...

1) (30 pts) A Force is given with F= BC kN in the figure below. According to this configuration, please; a) write the force in Cartesian vector form, b) write unit vector of AB in Cartesian vector form, c) find magnitude of the projected component of the force Facting along the axis AB of pipe. d) determine the projected component of the force Facting along the axis AB of pipe in Cartesian vector form. B 4 m 6 m 3...
The three supporting cables exert the forces shown on the sign. a) b) Determine the angle...

The three supporting cables exert the forces shown on the sign. a) b) Determine the angle θ between BA and BC. Determine the magnitude of the projected component of the 3 kN force acting along the axis BC of the pipe. 2 m 4 m F-3KNC

Determine the magnitude of the projected component of the force F = 280 N acting along line OA

Part A Determine the magnitude of the projected component of the force F = 280 N acting along line OA.(Figure 1)
Problem 2.123 Part A Determine the magnitude of the projected component of the force F =...

Problem 2.123 Part A Determine the magnitude of the projected component of the force F = { 450 i- 200 j + 700 kN acting along the cable BA (Figure 1) Express your answer to three significant figures and include the appropriate units. A ? |FBA 91.25 N Previous Answers Reguest Answer Submit Figure 1 of 1 X Incorrect; Try Again; 5 attempts remaining Provide Feedback 3m 6 m
Determine the magnitude of the projected component of the force F={350 i-300 j+500k} N acting along...

Determine the magnitude of the projected component of the force F={350 i-300 j+500k} N acting along the cable BA.

please help solve for what is asked in orobkems A-H and the free body diagrams as...

please help solve for what is asked in orobkems A-H and the free body diagrams as well. Will upvote if correct A B C D E F G H B 4 m 6 m 3 m 12 m 2 m F=80 N Determine the projected component of the force acting along the axis AB of the pipe. 60° A The 30kg pipe is supported at A by a system of five cords. Determine the force in each cord for equilibrium....
